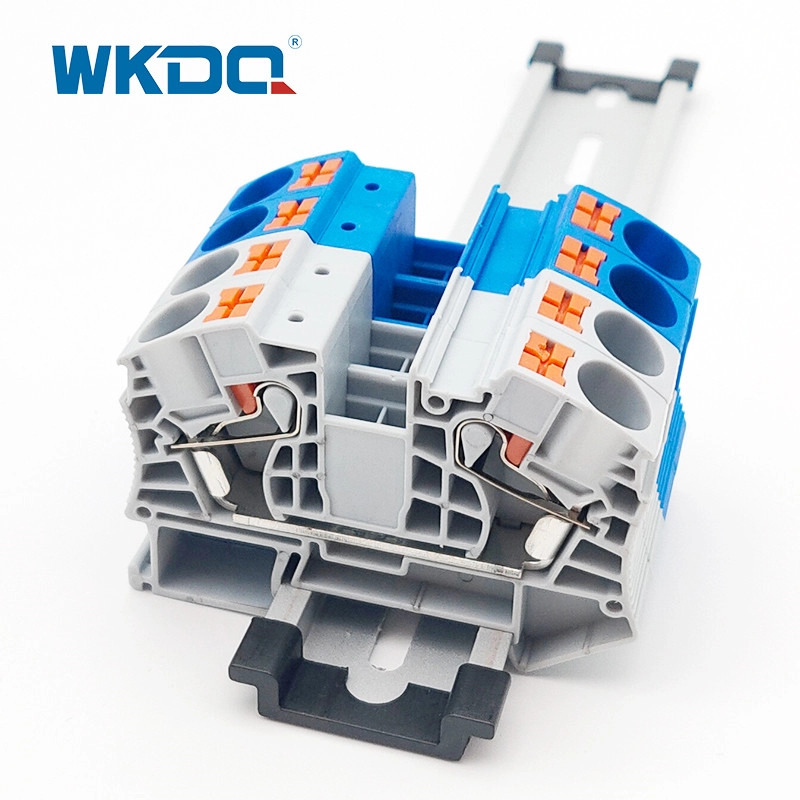

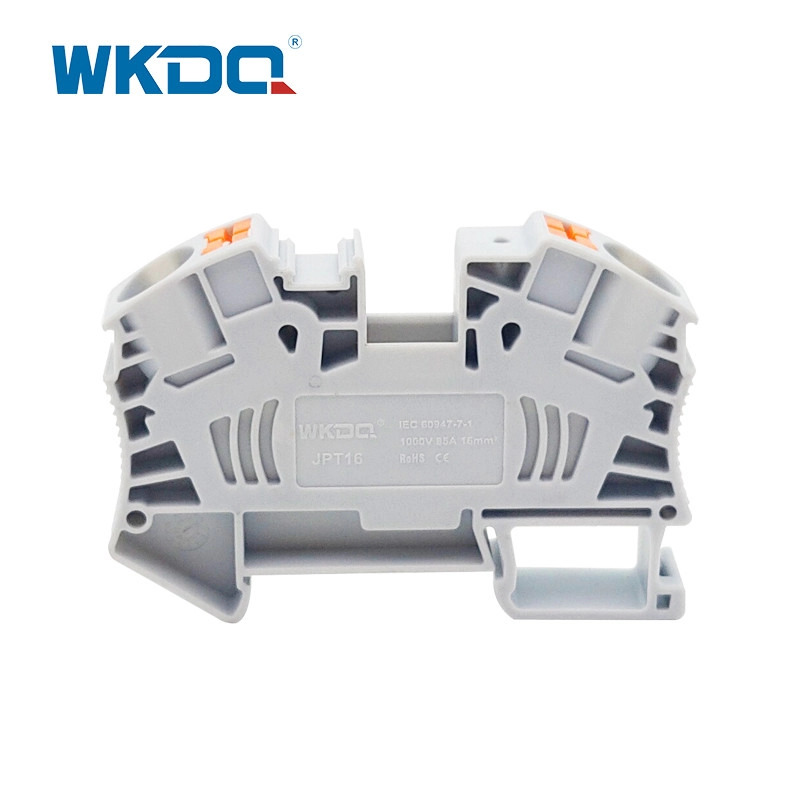

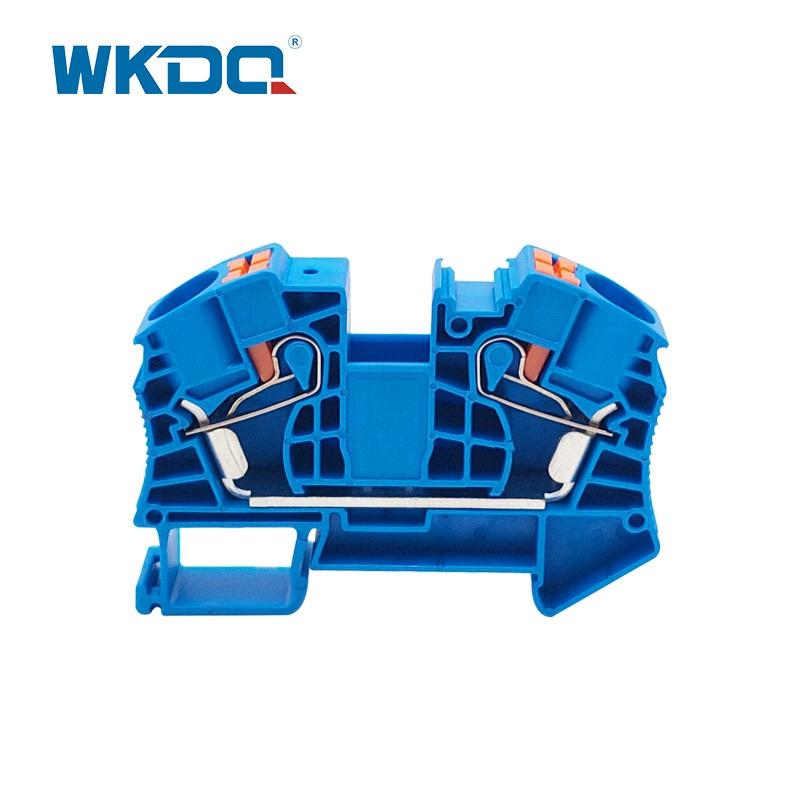

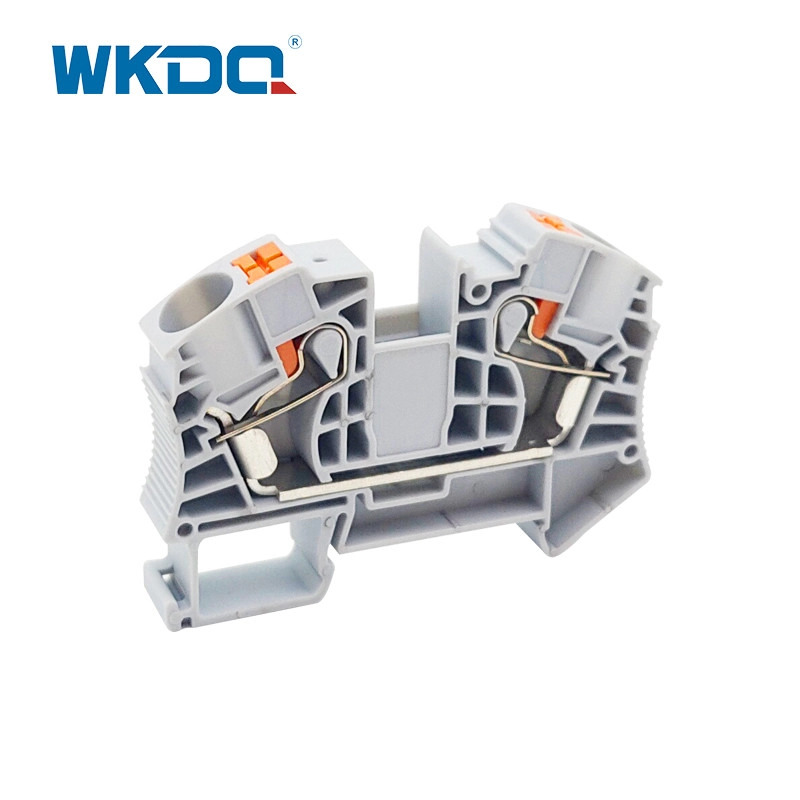

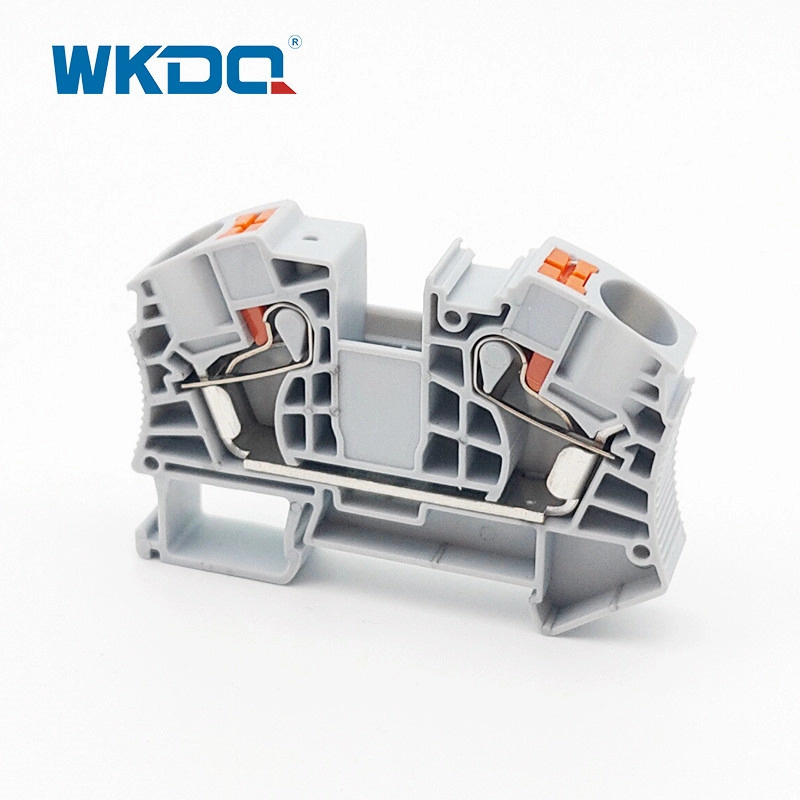

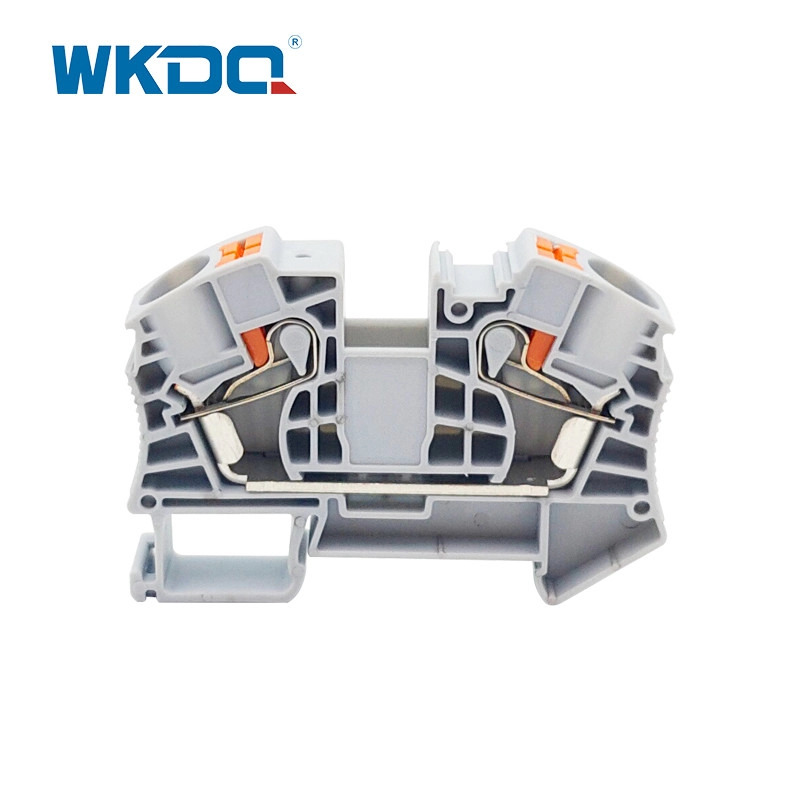

JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
  • JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2

JPT 16 Din Rail Push In Terminal Block Connector 16mm2

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT1 6
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

Push-in connection terminal blocks reduce the wiring time,and can support simply wiring in places where is only a little space available. You don't need any tool, just insert the cable is ok. Therefore,allow you to benefit from faster installation times and much higher productivity.

Simple and convenient operation.

Build-in push button.

Shock resistance & Corrosion resistance.

The insertion force can be saved by 50%.

Suitable for various applications.

Made from anti-flaming Nylon PA 66, Copper material

Connecting, build bridges and labeling large or small conductor cross sections easy for feed through terminal blocks.

Wiring can be handled in a limited space thanks to the compact design and front entry connection.

With universal foot which can be installed on 35mm Standard Din Rail.

Build electric potential distribution by using plug-in bridges in the terminal center.

Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.


TECHNICAL PARAMETERS

Model Number JPT 16
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm)
L75.4/H52.6/W12.2
Connection method Push in connecting
Material Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.5-25mm² / 0.5-16mm²
Conductor Size 20-5 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 25g/pc, 20PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
