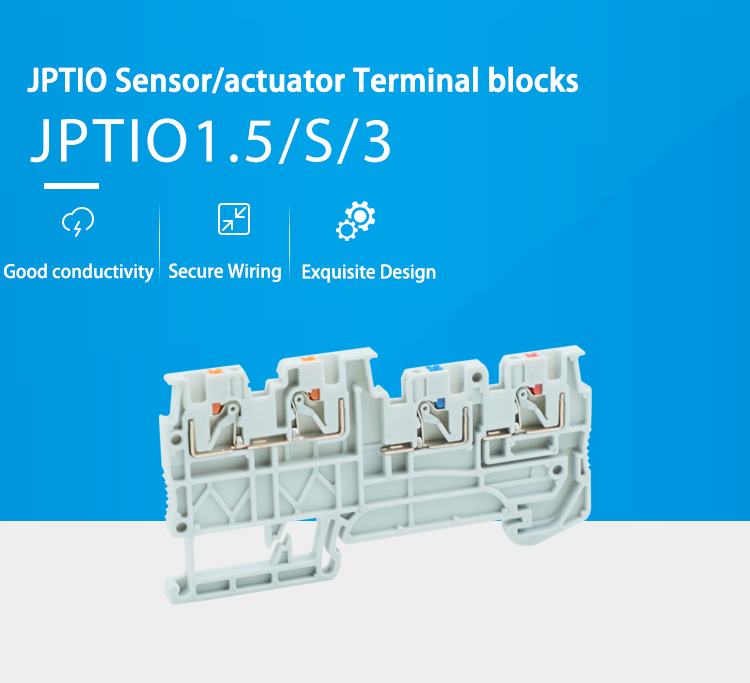

PTIO1.5/S/3 Plug In Connection Terminal Block Sensor Actuato

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: PTIO1.5/S/3
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:PTIO1.5/S/3

Send Inquiry

Product Description

Purpose of PTIO1.5/S/3 terminal block

PTIO1.5/S/3 ‌terminal block‌ The ‌terminal block‌ adopts flame-retardant nylon PA66, brass conductor and stainless steel compression spring to ensure electrical safety and mechanical strength under harsh working conditions.

Advantages of PTIO1.5/S/3 terminal block

Terminal blocks support multiple types of terminals such as plug-in/spring cage/quick connect/screw connect, and are compatible with diverse cable requirements. The compact structure combined with the front wiring port design allows the terminal block to be easily operated in small spaces, and the universal base is compatible with NS35 rails. ‌

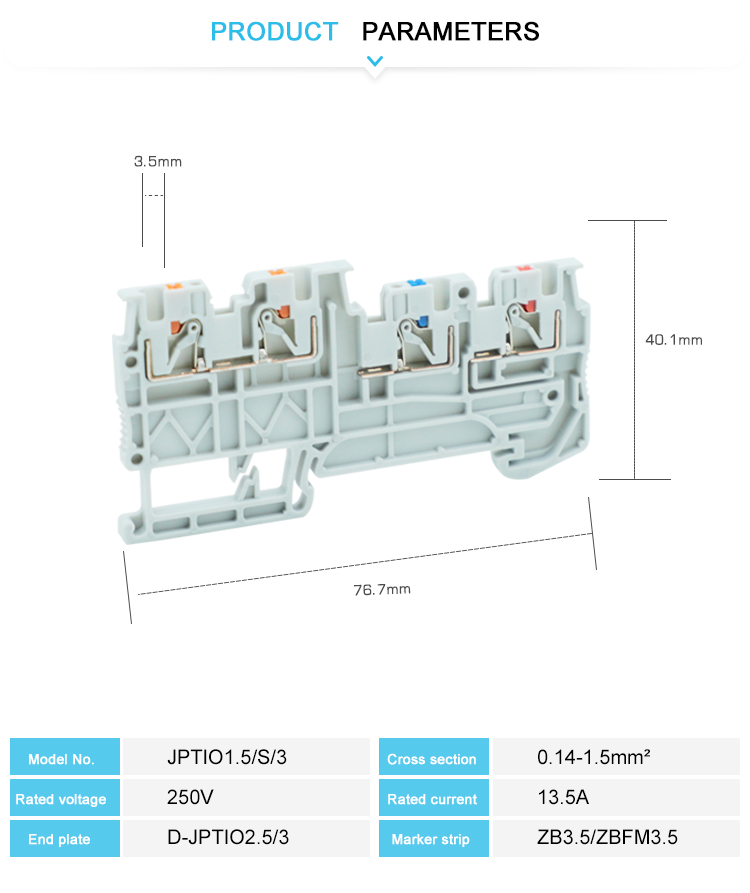

TECHNICAL PARAMETERS

Model Number	PTIO1.5/S/3
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	L76.7/H40.1/W3.5mm
Connection method	Plug in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	250V/13.5A
Cross section, solid/soft Cable	0.14-1.5mm²/0.14-1.5mm²
Conductor Size	26-16AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
