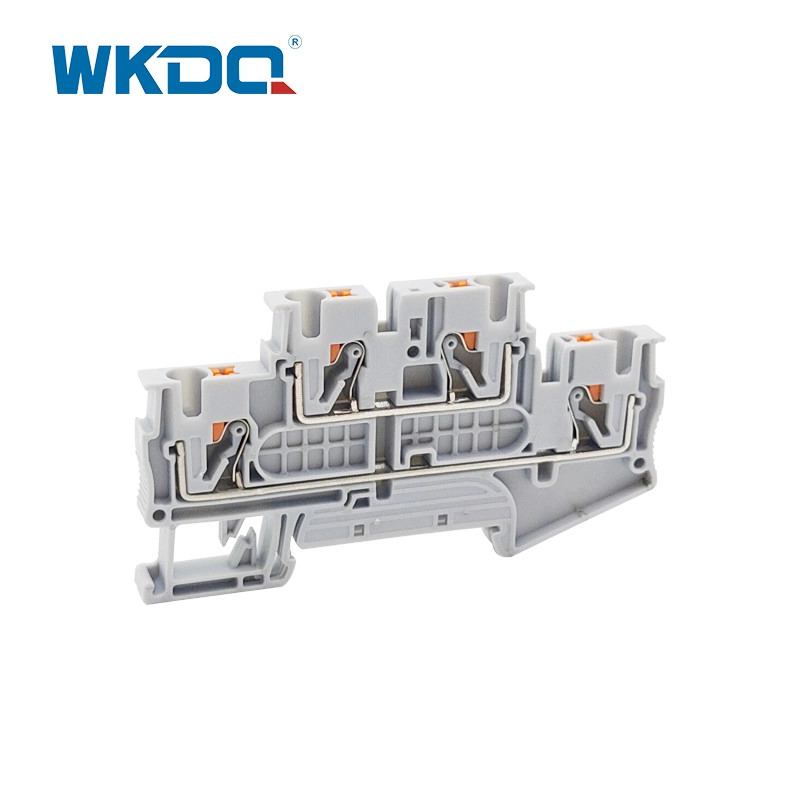

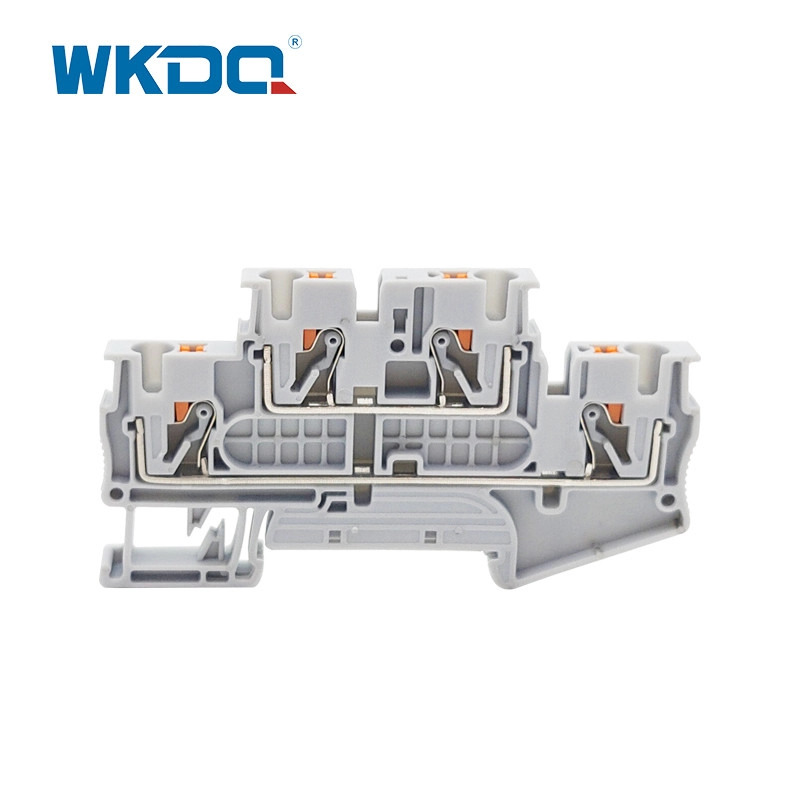

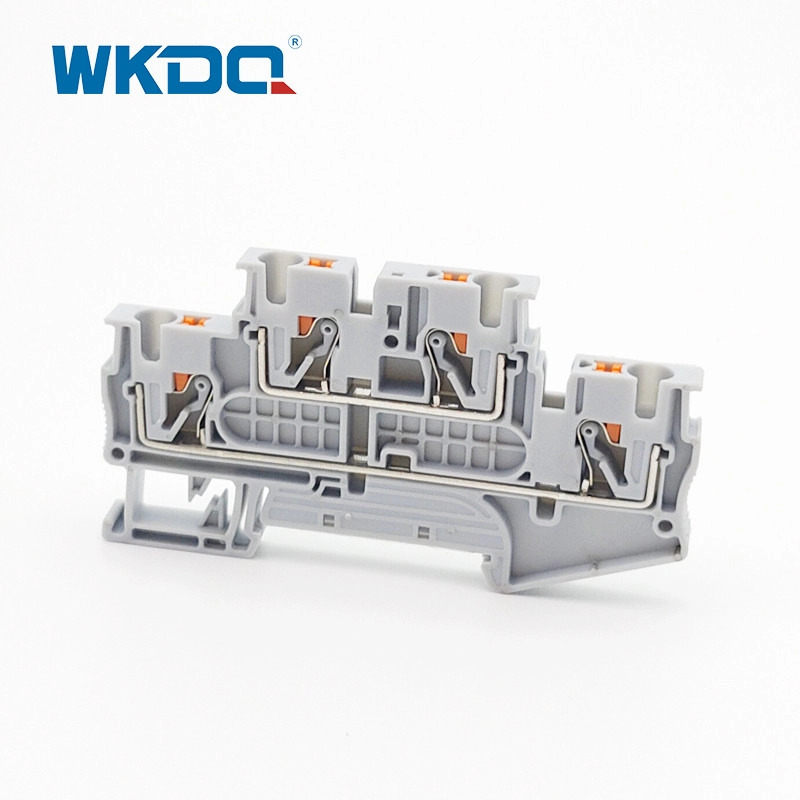

JPTTB 4 Din Rail Push In Double Level Terminal Block 4mm2
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 4
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JPTTB 4
Send Inquiry
Product Description
With Push in connection technology has been tested and approved for a range of approvals.
Double Level design of the push in modular terminal block and the direct push-in connection enable easy
Convenient insertion, thanks to 50% lower insertion force.
Safe wiring and operation, thanks to the color-coded push button.
The push button permits easy conductor release using any type of tool, without direct contact with live parts.
TECHNICAL PARAMETERS
| Model No. | JPTTB 4 |

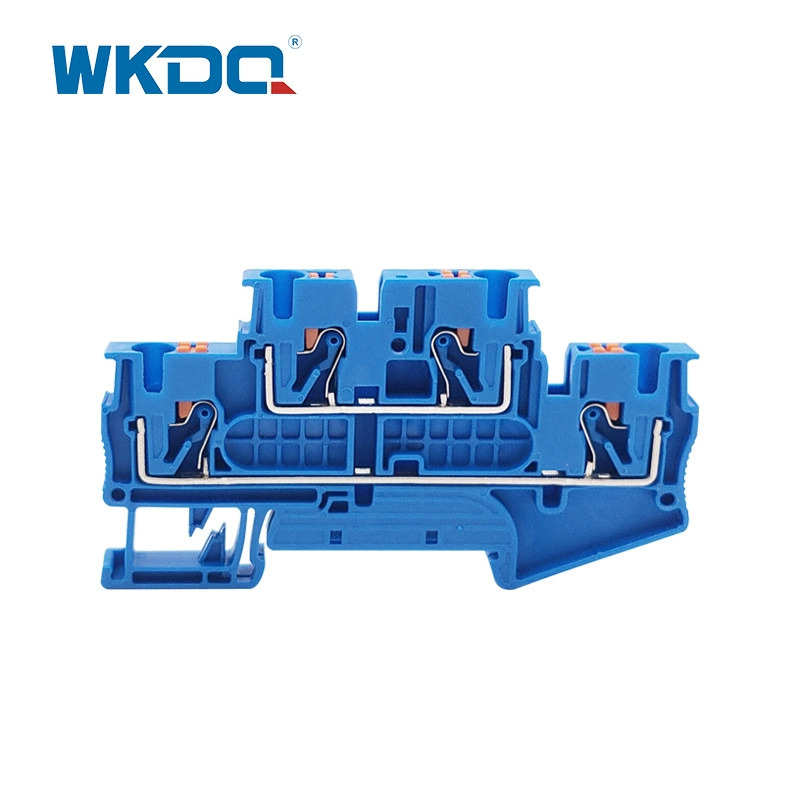

| Color | Grey,Blue, other color can be customized |
| Length/Height/Wide (mm) | 84.3/ 46 /6.2 |
| Connection method | Push-in connection |
| Material | Flame resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/30A |
| Cross section, solid/soft Cable | 0.2-6 mm²/0.2-4 mm² |
| Conductor Size | 24-11AWG |

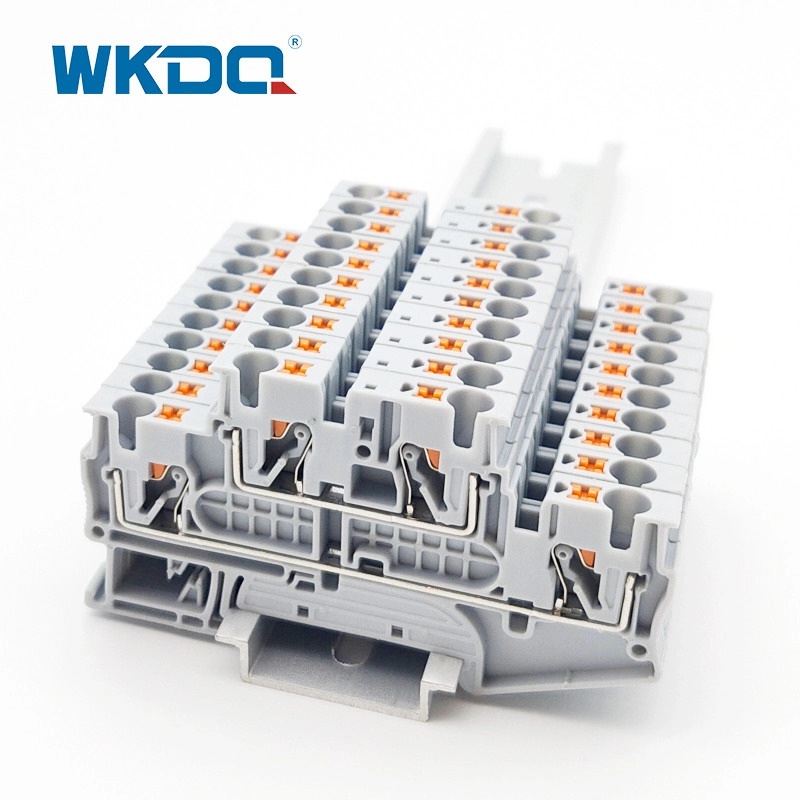

| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ LOGO can be customized |
| Packing Detail | 50PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
