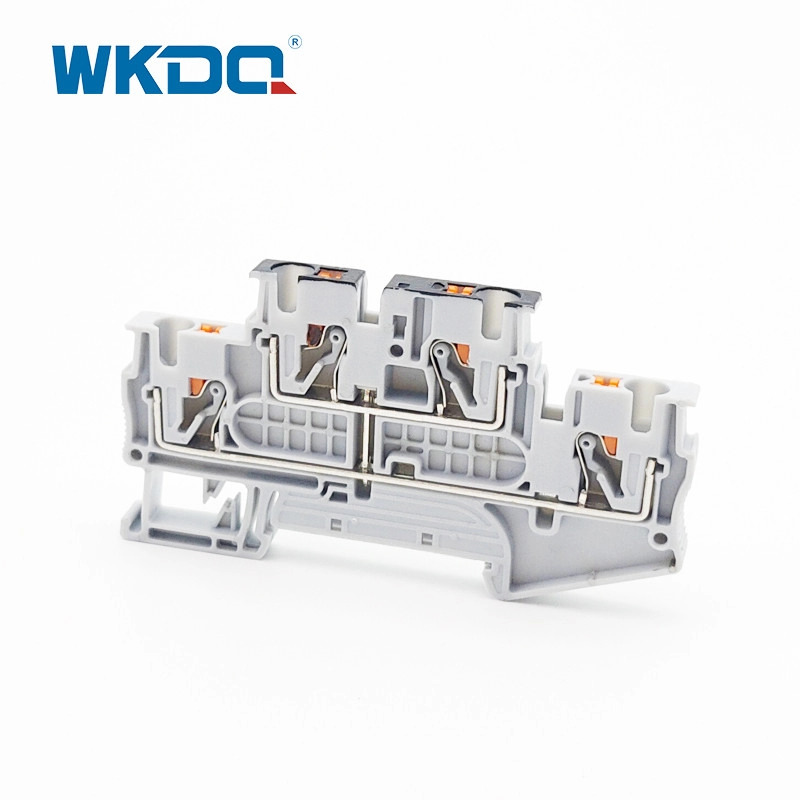

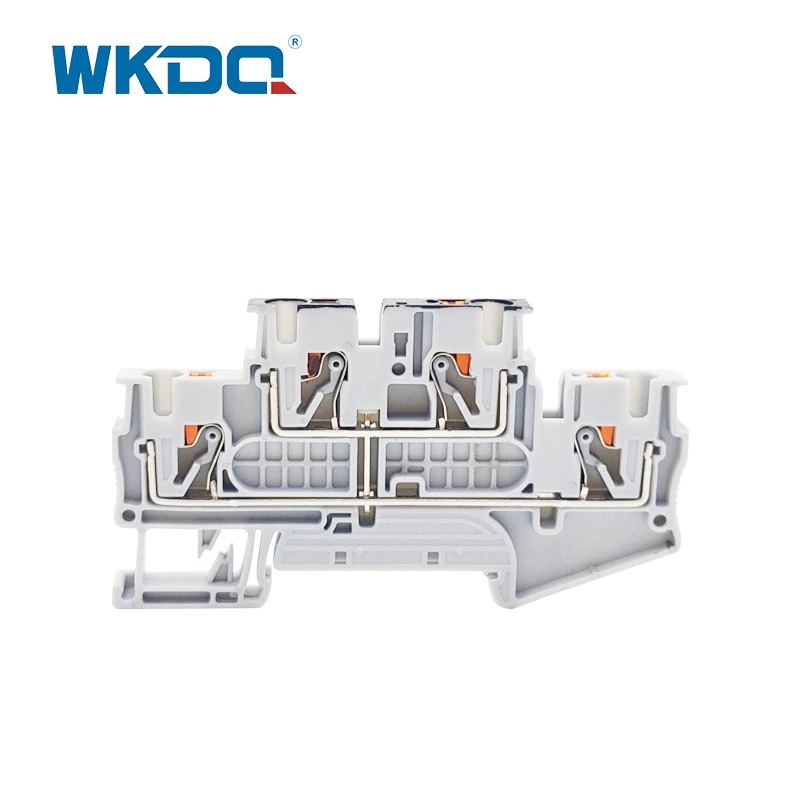

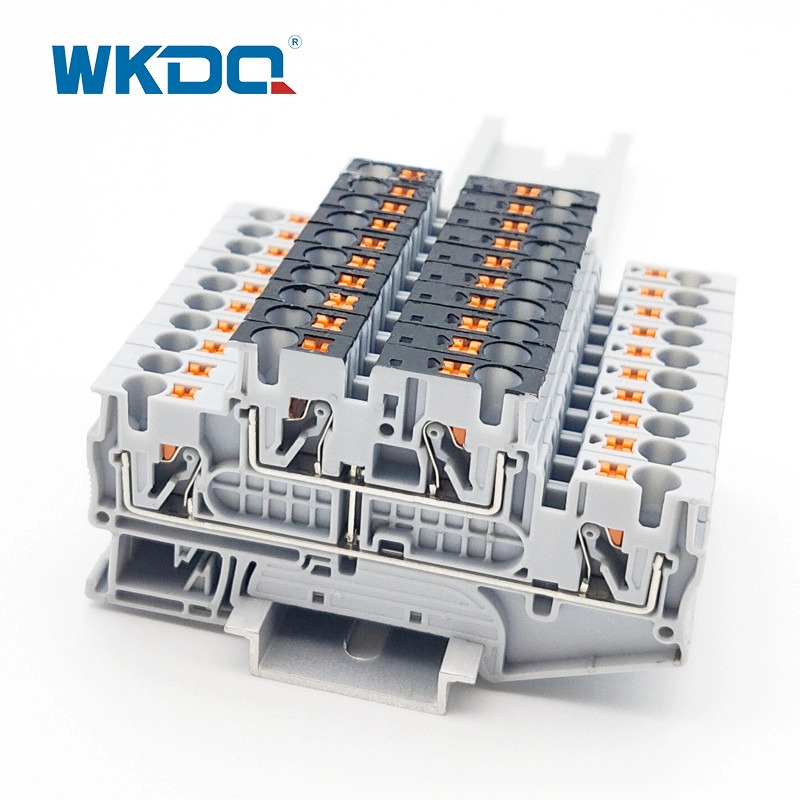

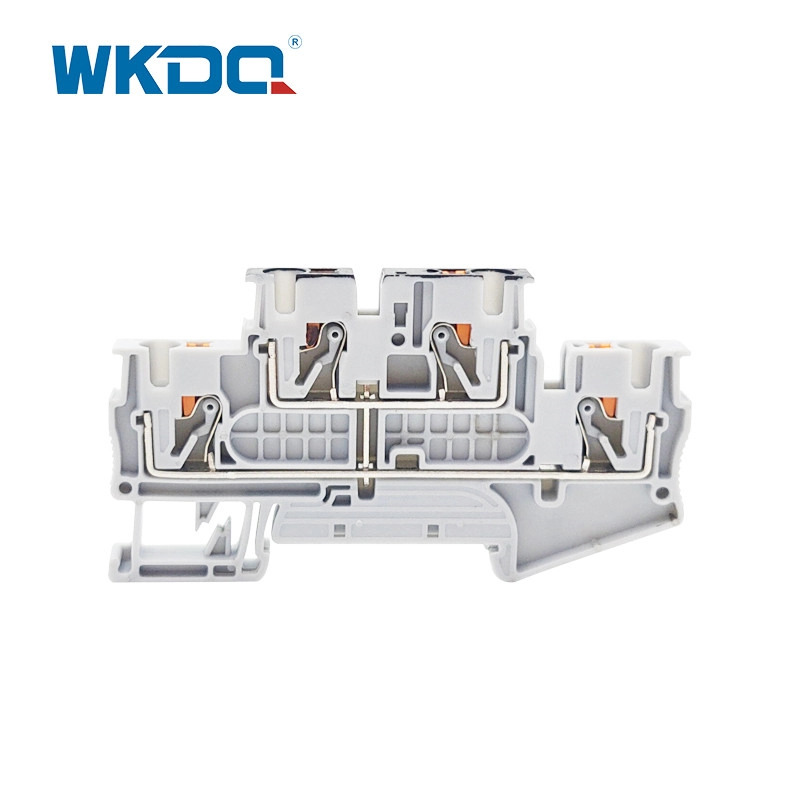

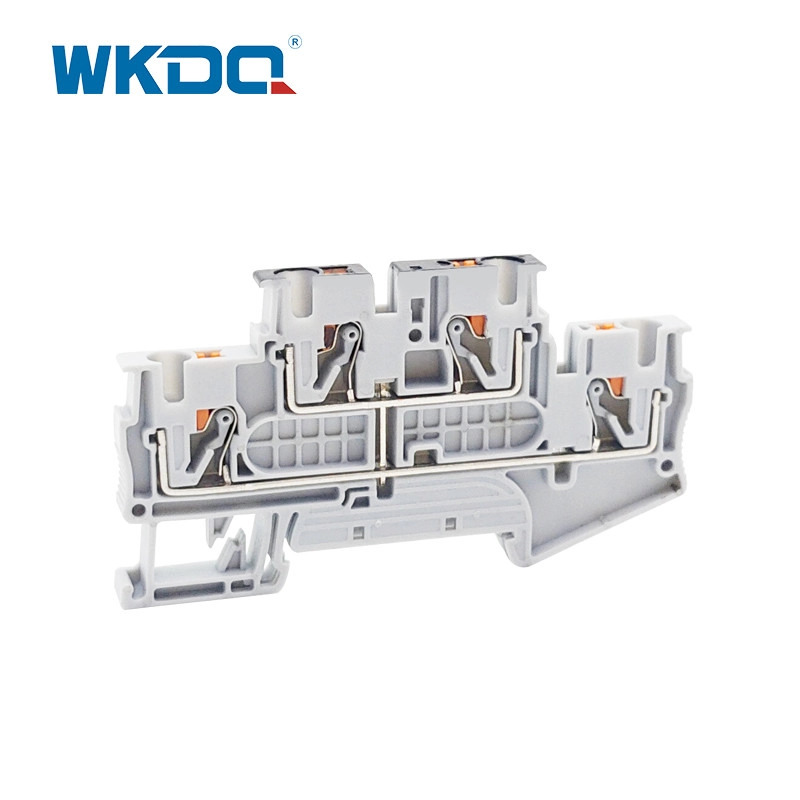

JPTTB 4 - PV Din Rail Feed Through Terminal Block 2 Level With Equipotential Bonder

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 4-PV
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

With Push in connection technology has been tested and approved by CE, Rohs, CQC.

Tool-Free, Time and Double Level space saving design of the push in erminal block and the direct push-in connection enable easy.

Convenient insertion, thanks to 50% lower insertion force.

Safe wiring and operation, thanks to the color-coded push button.

The push button permits easy conductor release using any type of tool, without direct contact with live parts.


TECHNICAL PARAMETERS

Model No. JPTTB 4-PV

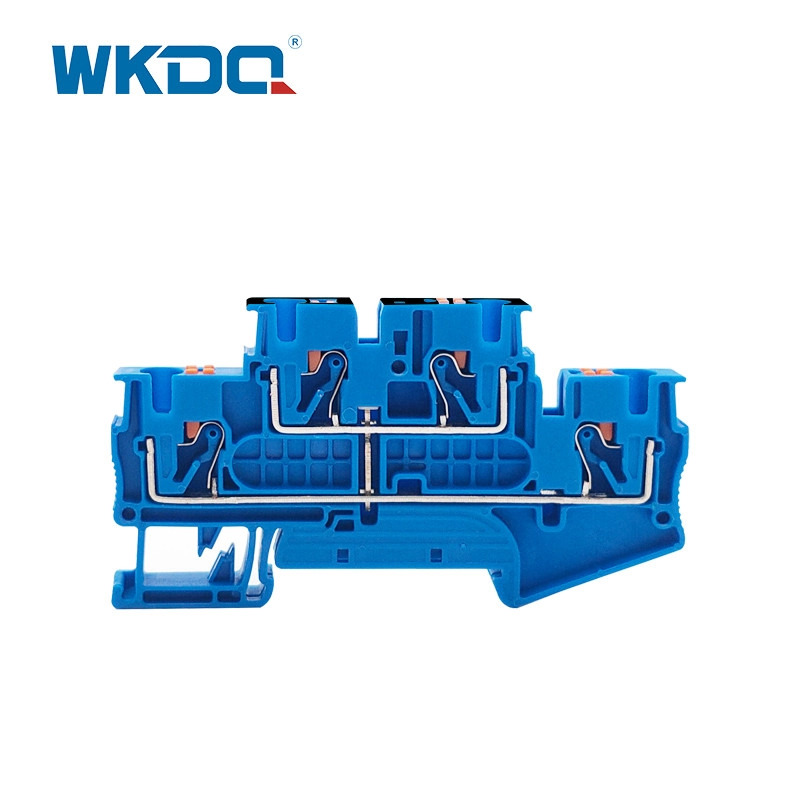

Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 84.3/ 46 /6.2
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/30A
Cross section, solid/soft Cable 0.2-6 mm²/0.2-4 mm²
Conductor Size 24-11AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ LOGO can be customized
Packing Detail 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
