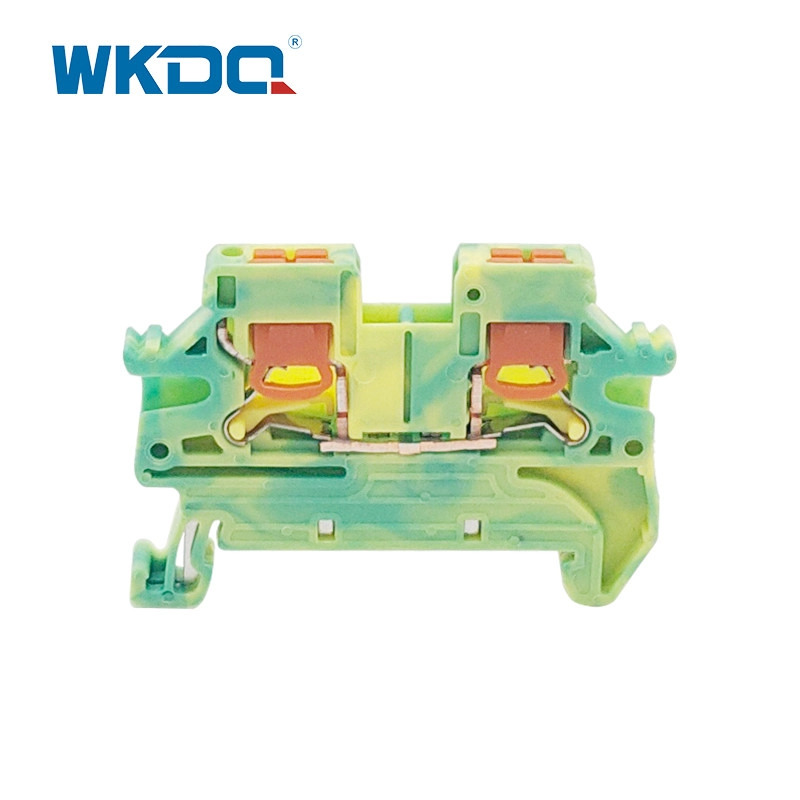

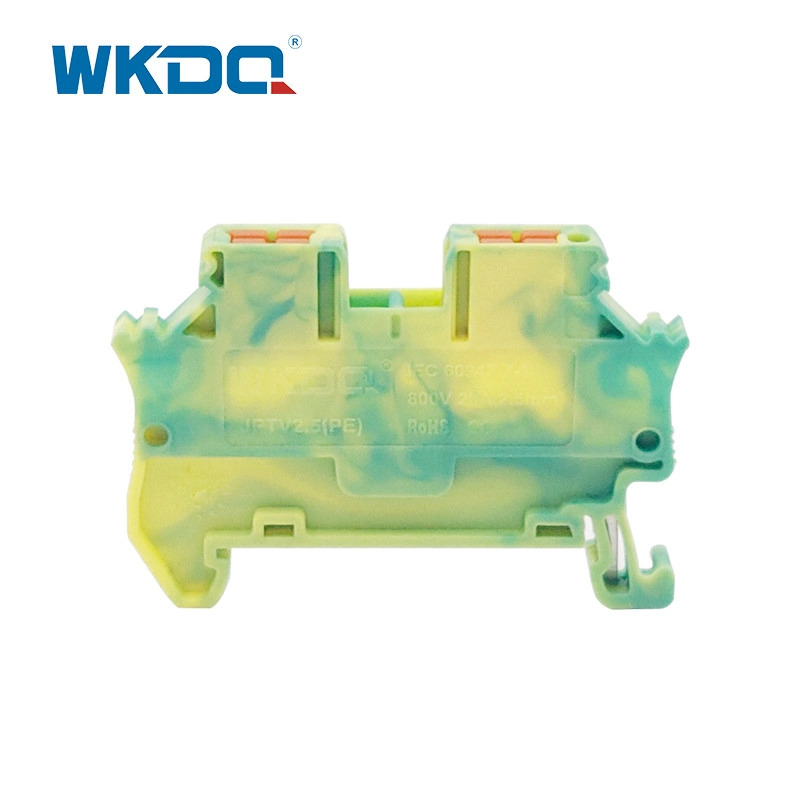

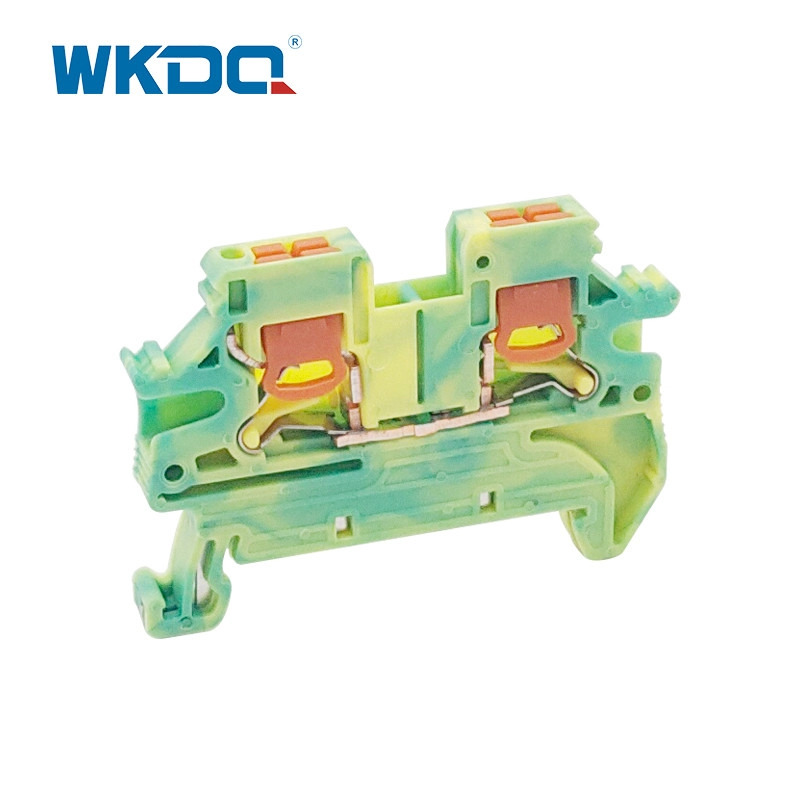

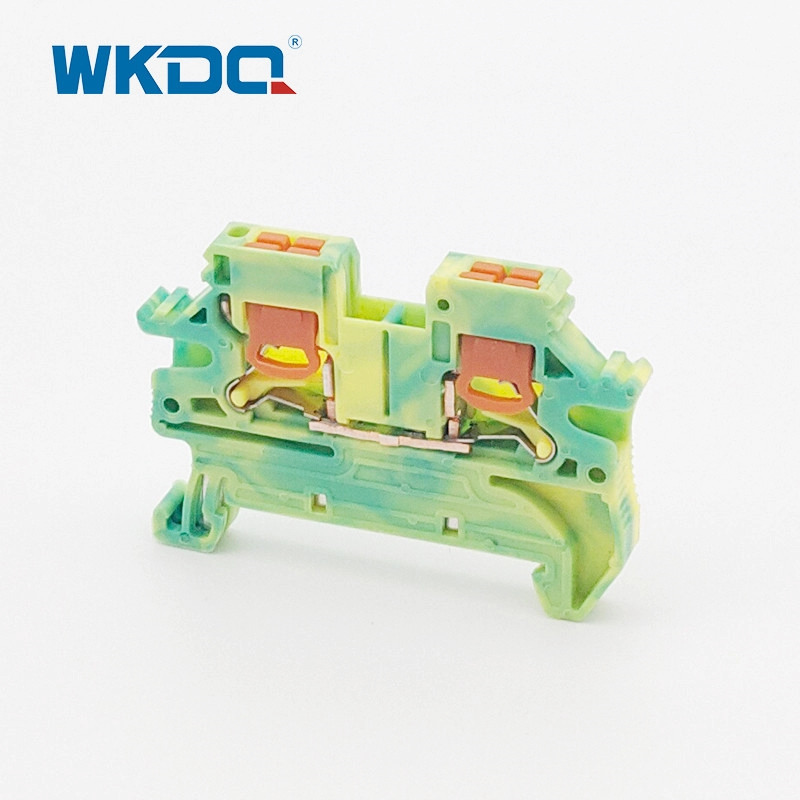

JPTV 2.5 PE Push In Side Terminal Block Nylon PA66 Entry Earth

The Push-in connection terminal blocks from the CLIPLINE complete system have been developed for direct conductor

connection and offer a wide range of application options. Easy handling and direct, tool-free connection with up to

50 percent lower insertion forces are the key advantages of this terminal technology. When rigid conductors from

0.25 mm2 or conductors with ferrules from 0.34 mm2 are inserted, the contact spring is automatically

opened. This provides the required pressure force against the current bar

Suitable for various applications.

Made from anti-flaming Nylon PA 66, Copper material

Connecting, build bridges and labeling large or small conductor cross sections easy for feed through terminal blocks.

Wiring can be handled in a limited space thanks to the compact design and front entry connection.

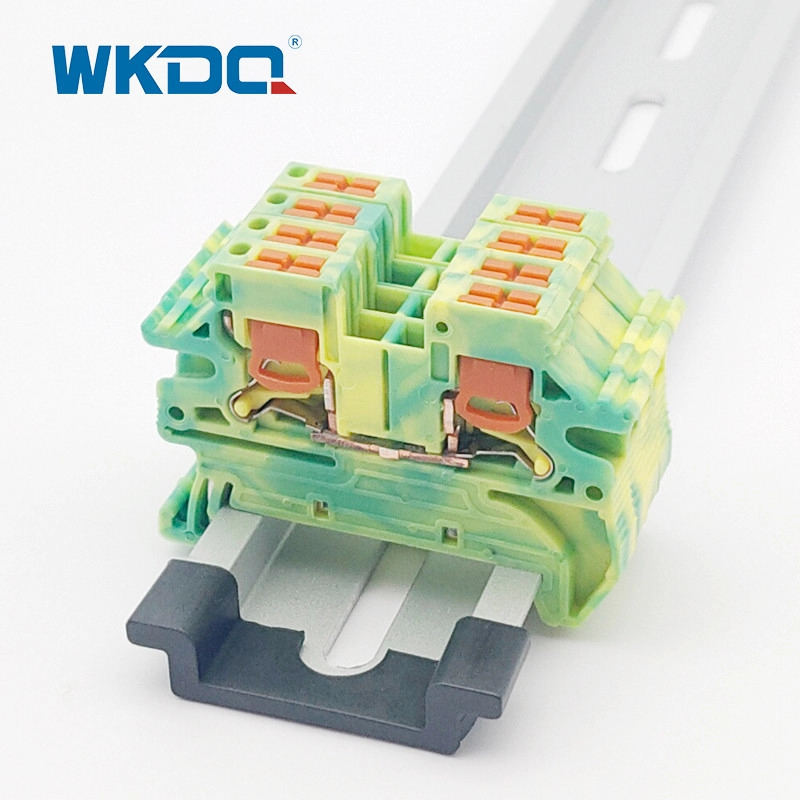

With universal foot which can be installed on 35mm Standard Din Rail.

Build electric potential distribution by using plug-in bridges in the terminal center.

Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.

TECHNICAL PARAMETERS
