JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass
  • JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated BrassJPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass

JPTV 2.5 Push In Terminal Block 4mm² Side Entry Feed Through Nickle Plated Brass

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTV 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JPTV 2.5

Send Inquiry

Product Description

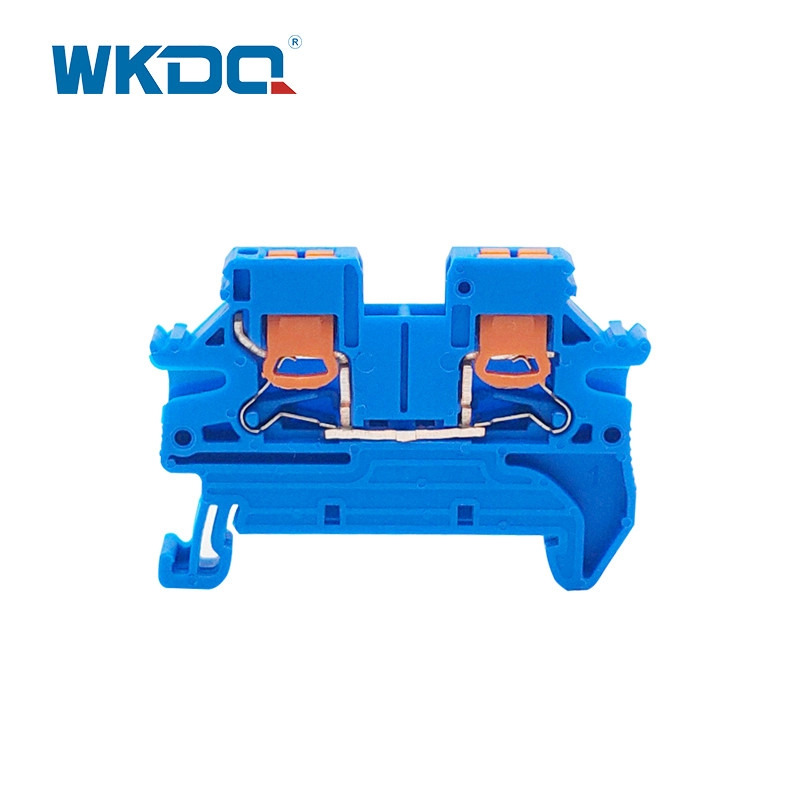

The new PUSH IN terminal block has a compact structure, side in wiring, and can install solid or looped conductors without tools, saving 50% of insertion force. They are made of V0 flame retardant PA66 and nickel plated brass, ensuring reliable, shock resistant, and corrosion-resistant connections. The orange buttons allow for easy removal of conductors and are compatible with DIN rail NS 35, with accessories such as end caps and marking strips.

TECHNICAL PARAMETERS

Model Number JPTV 2.5
Color Grey,other color can be customized
Length/Height/Wide (mm) 49.4/35.2/ 5.2
Connection method Push in connection
Material Anti inflaming Nylon PA66
Rated Voltage/Current 800V/24A
Cross section, solid/soft Cable 0.14-4mm² / 0.14-2.5mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, OEM is supporting
Packing Detail 5.79g/pc, 100PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
