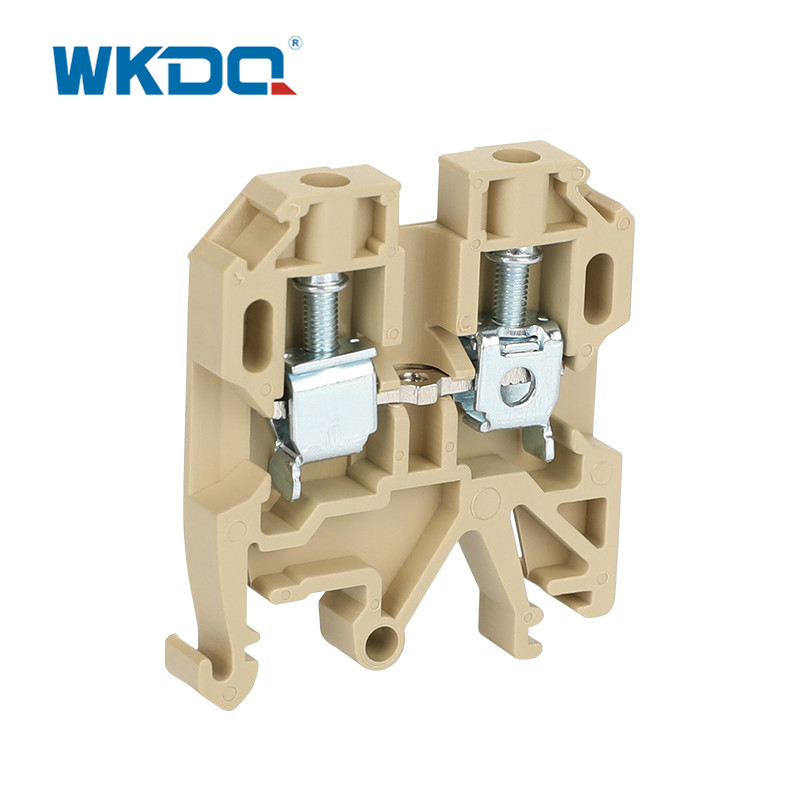

JSAK 4EN Universal Power Cable Terminal Block , Screw Wire Connectors PA 66 Material
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSAK 4EN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JSAK4EN
Send Inquiry
Product Description
| Part No.: | JSAK 4EN | Length: | 42mm |
| Height: | 46.5mm | Wide: | 6.5mm |
| Packing Specification: | 50PCS/BOX,3000PCS/CTN | Weight: | 10.65g/pc |
| High Light: | electrical screw terminal block connector , screw down wire connector | ||
The JSAK series terminal blocks with screw clamping connection make planning easier and operational safety, can be used in different applications.
Simple and convenience operation.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Made from safe and high quality material.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Versatile and vibration proof.
Made from Inflaming retarding PA 66 with Brass conductor.
Design in standard and compact body.
Our modular terminal blocks with clamping yoke technology are available in both standard and compact designs.
Maintenance-free connection: the clamping screw doesn’t need to be re-tightened.

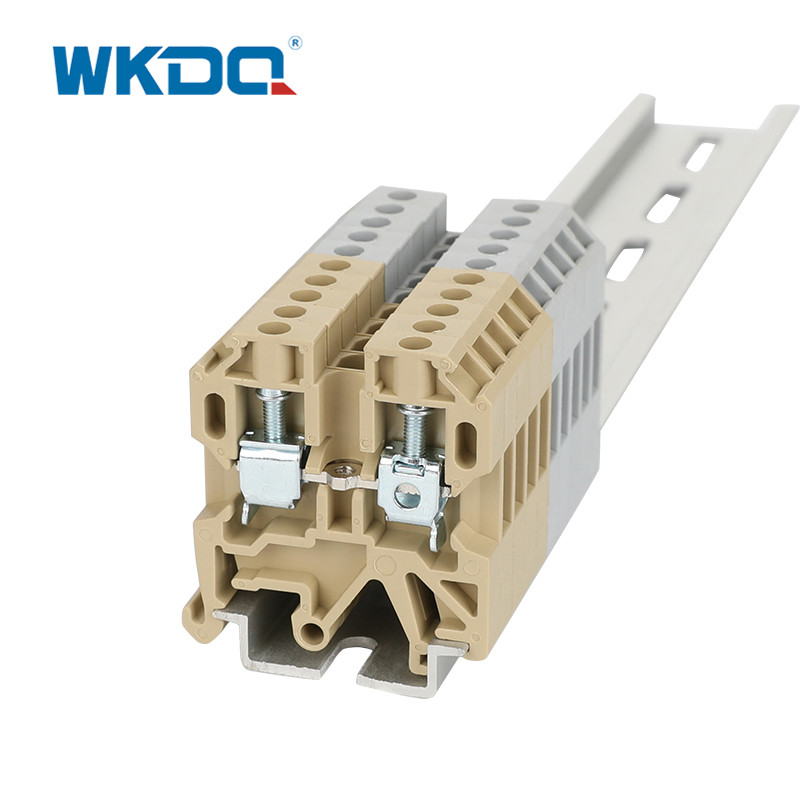

Can mount or dismount from the Terminal DIN rail directly without tool.
TECHNICAL PARAMETERS
| Model Number | JSAK 4EN |

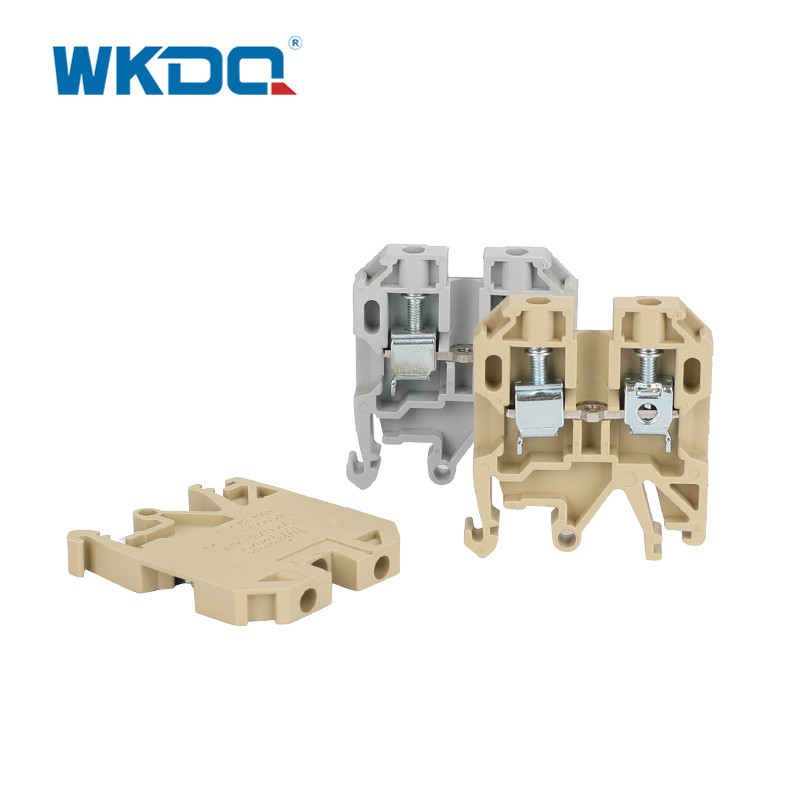

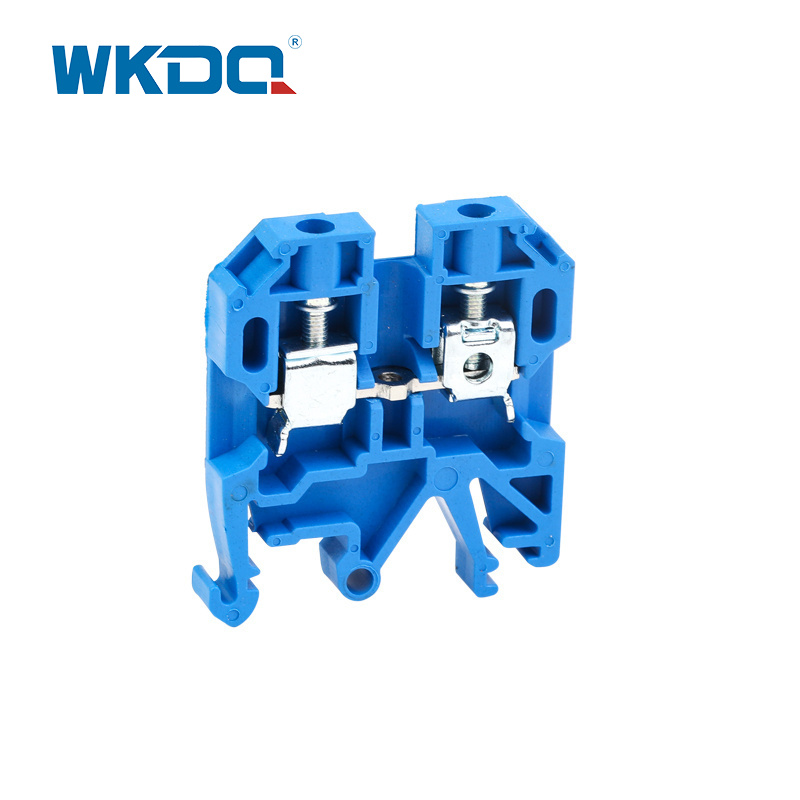

| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 42/46.5/6.5 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/32A |
| Rated Cross section | 4 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 10.65g/pc, 50PCS/BOX,3000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
