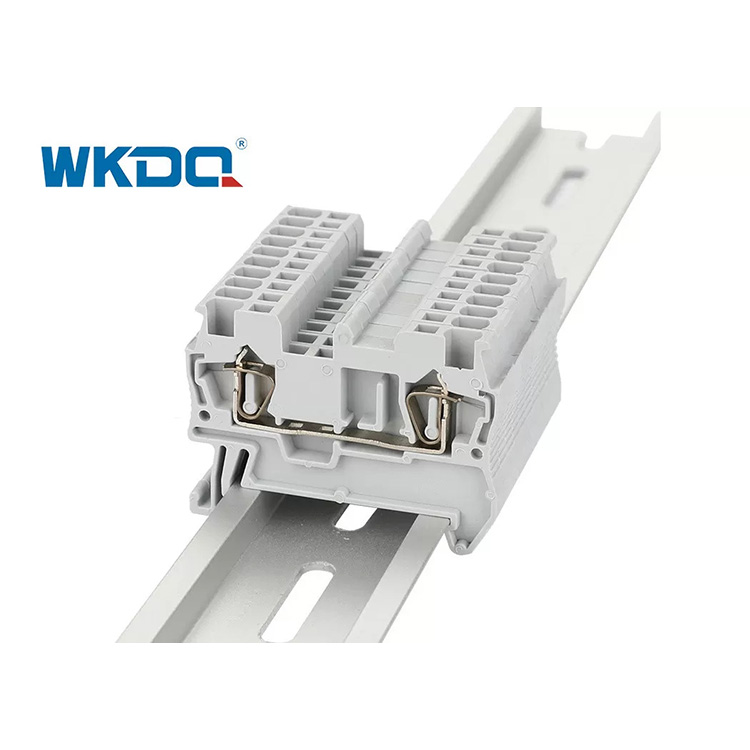

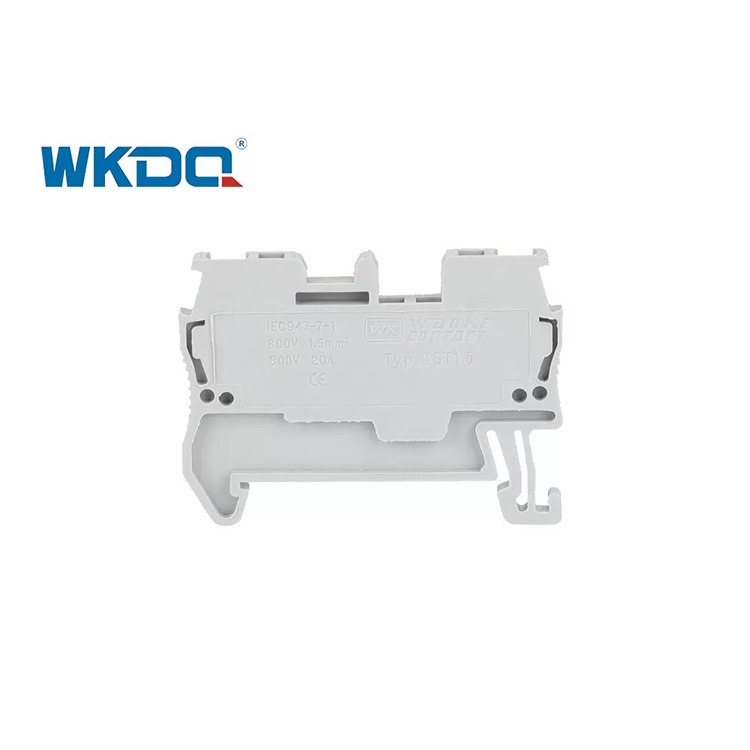

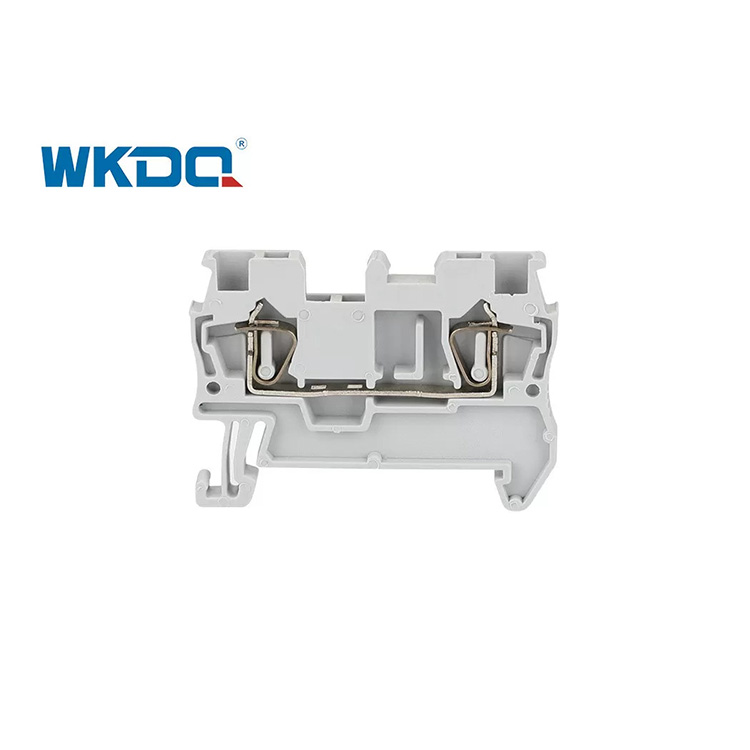

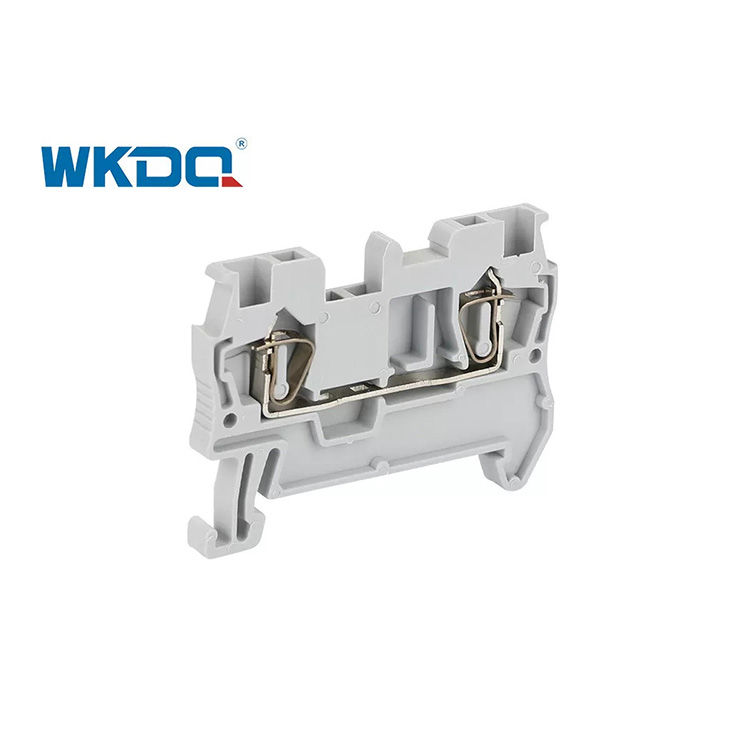

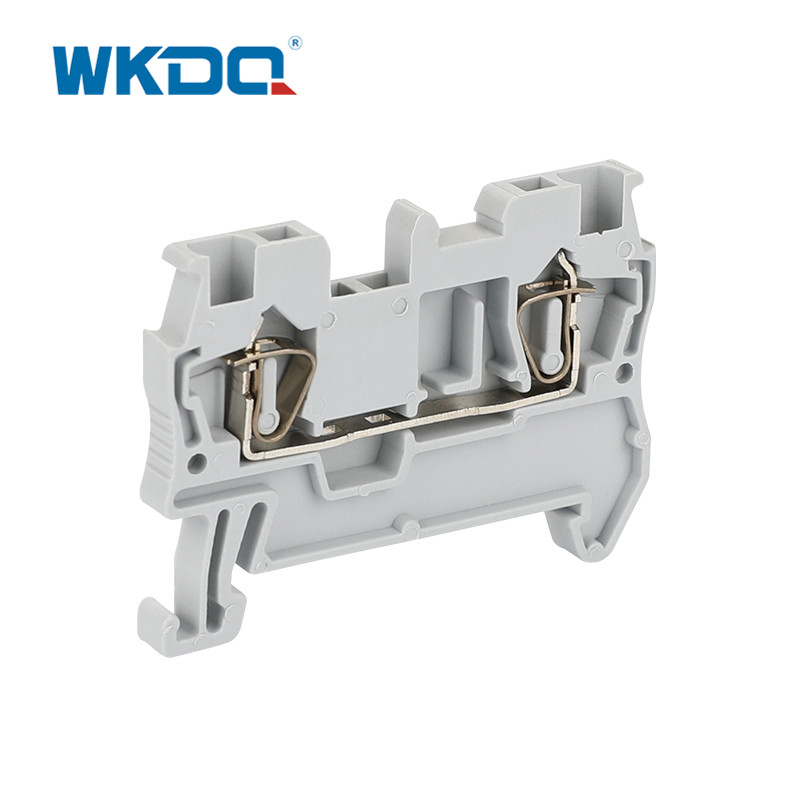

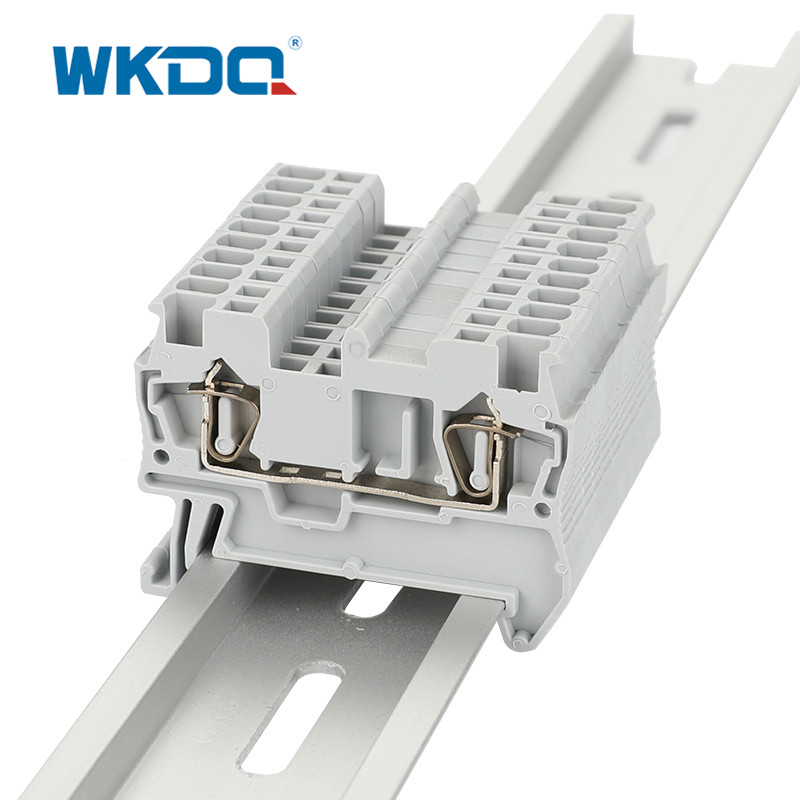

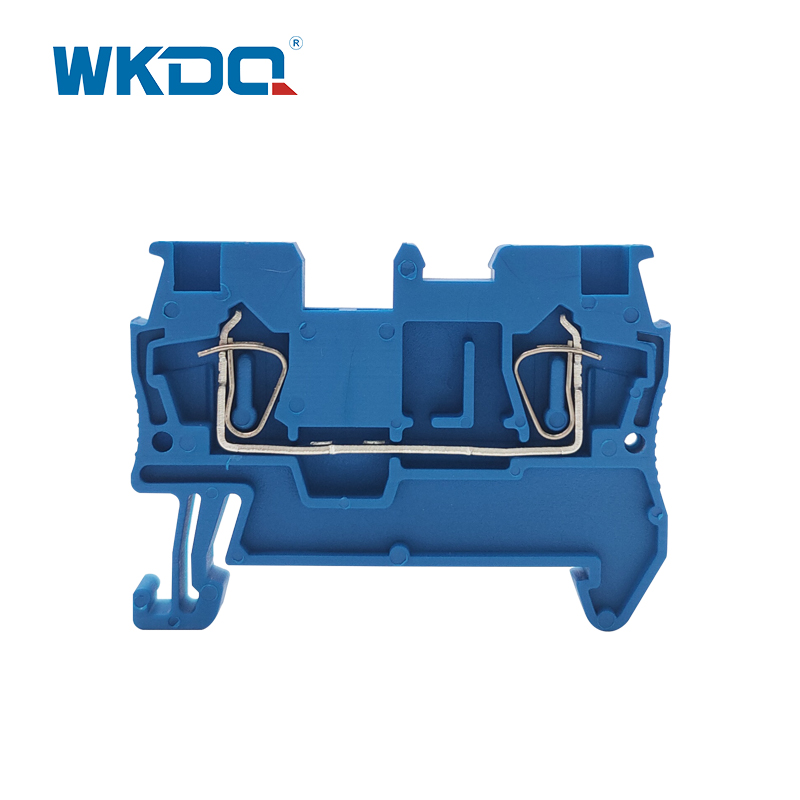

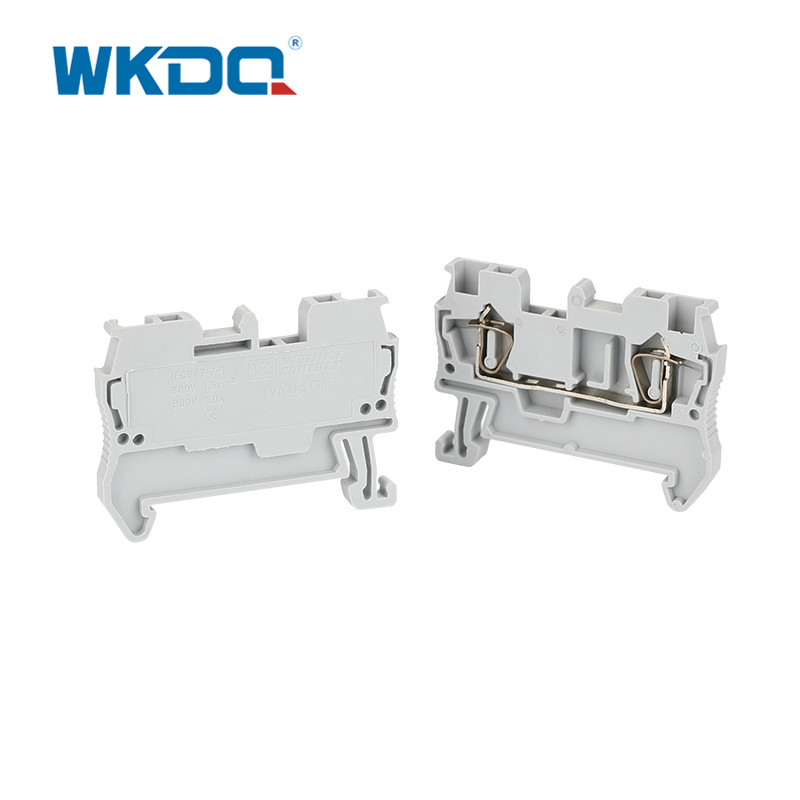

JST 1.5 Spring DIN Rail Spring Terminal Block Connector , Spring Loaded Terminal Anti - Vibration

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 1.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 1.5

Send Inquiry

Product Description

The WonkeDQ spring-clamped terminal block is made of flame-retardant PA66+ nickel-plated brass material. The spring crimping structure achieves shock absorption and anti-loosening. The DIN rail NS35 quick-installation design saves space. Low-impedance contact points (<0.05Ω) ensure stable power supply. Corrosion-resistant metal parts are suitable for humid/vibrating environments. Modular accessories (end covers/Bridges) support flexible expansion and comply with industrial-grade safety standards.

Technical Parameters

Part No.	JST 1.5
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	49/36/4.2
Connection method	Spring connection
Material	Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm² / 0.14-1.5 mm²
Conductor Size	26-16 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	4.67g/pc, 100PCS/BOX,4200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
