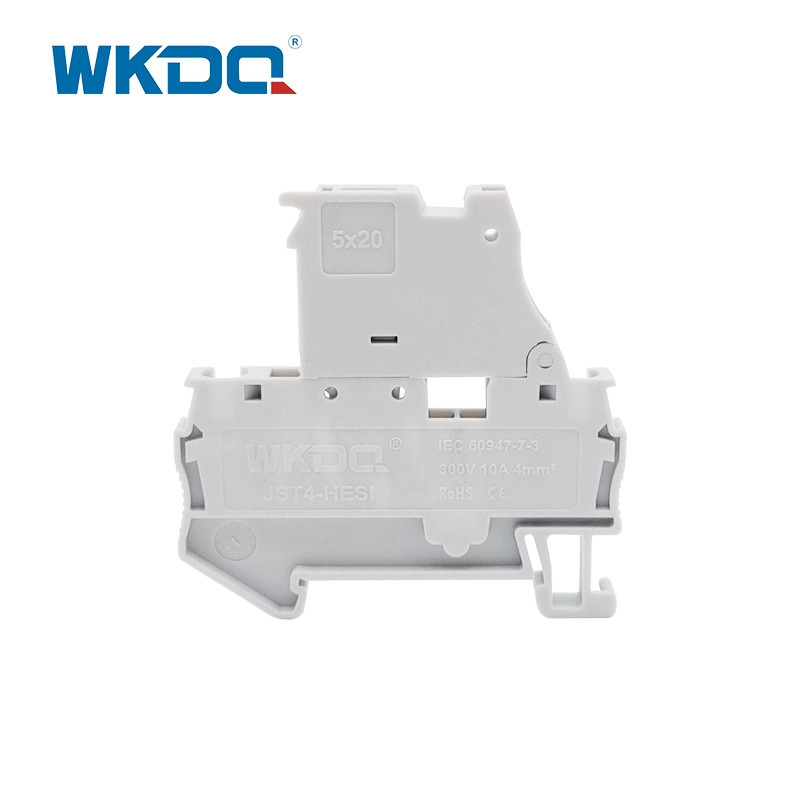

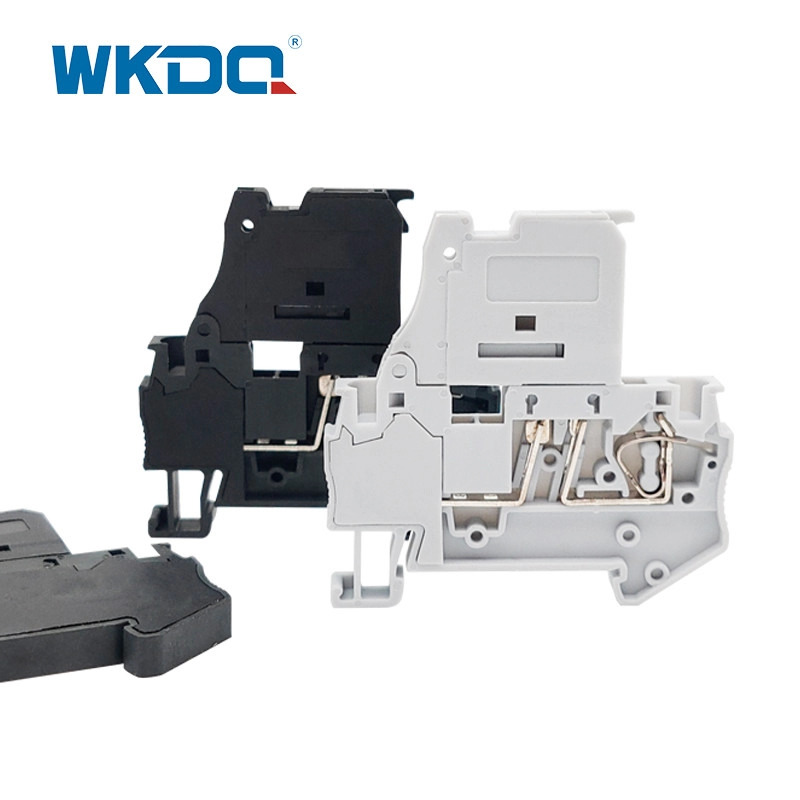

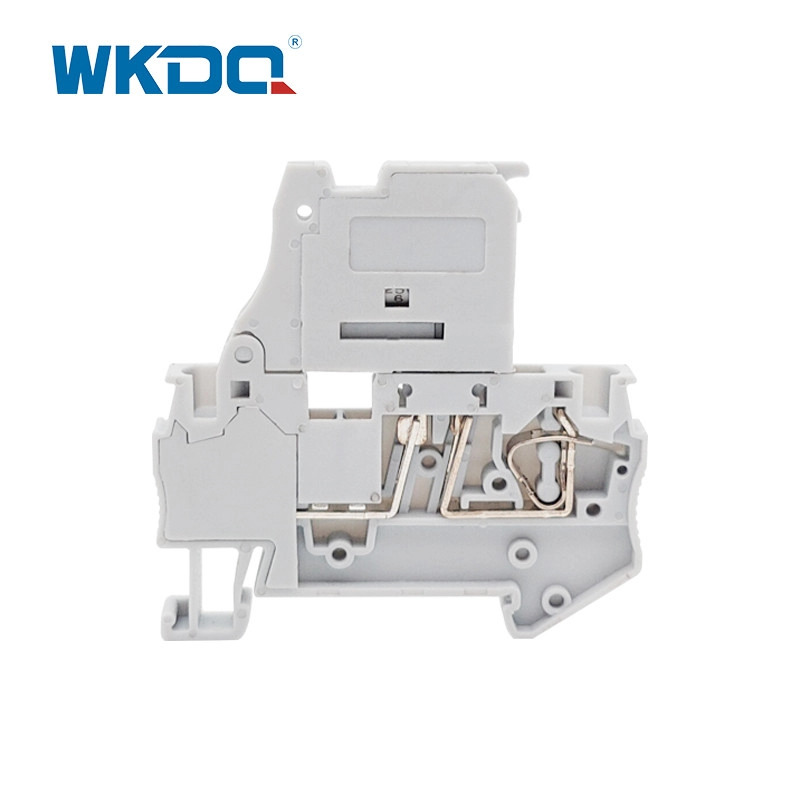

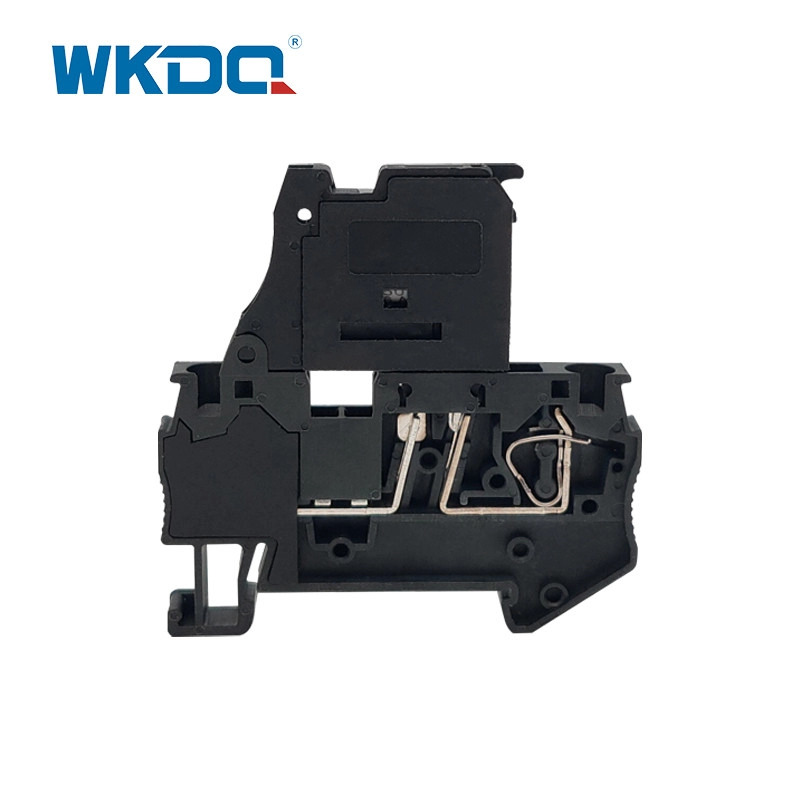

ST4 - HESI Fuse Spring Terminal Block Cage Connector Din Rail Mounted

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE, RoHs, CQC,etc
Model Number: JST4-HESI

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST4-HESI

Send Inquiry

Product Description

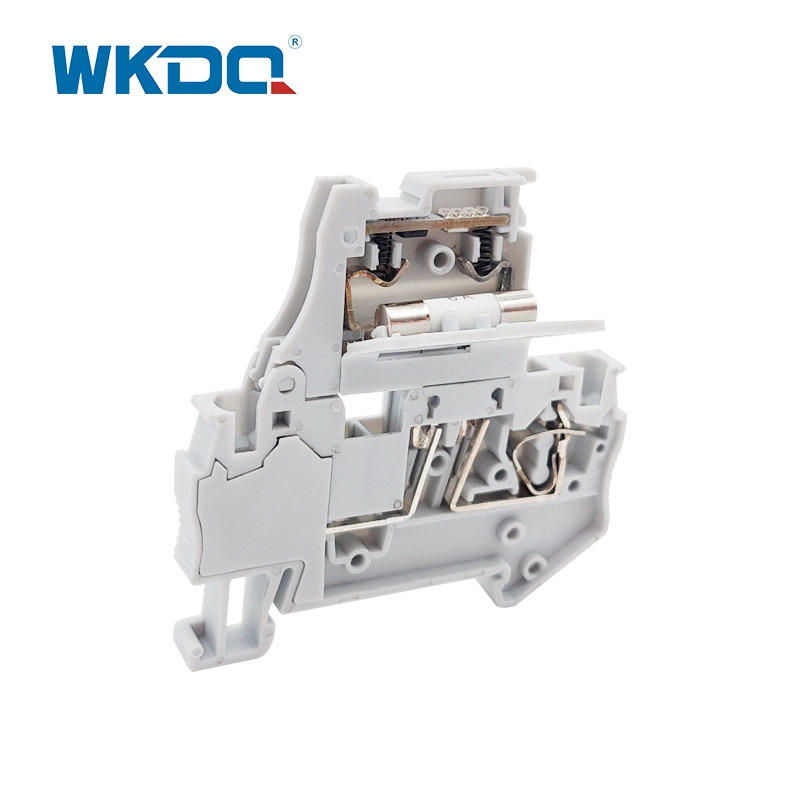

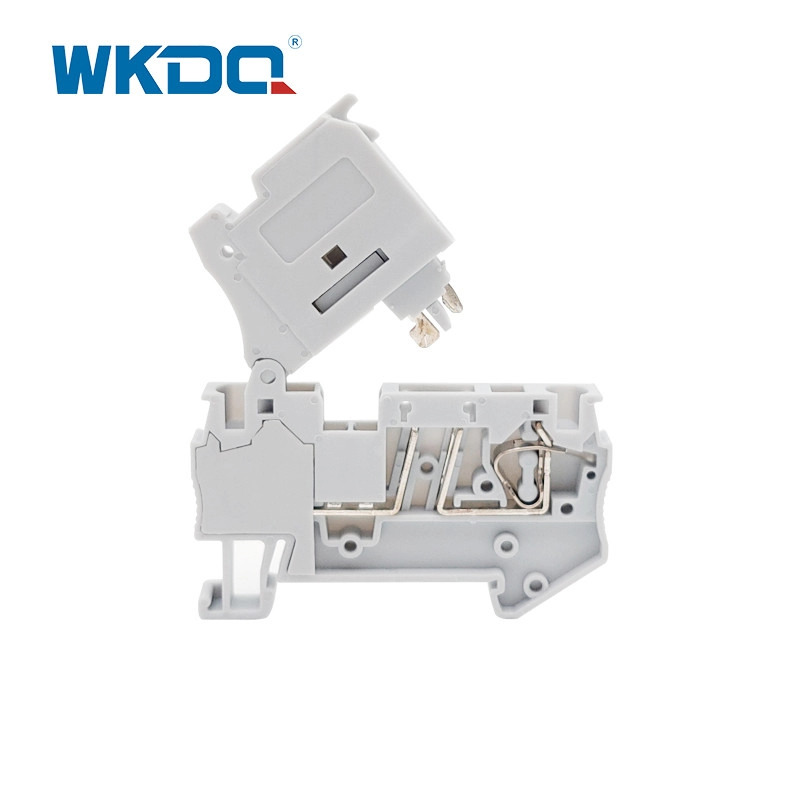

The new spring-type fuse terminal block adopts a spring crimping design to achieve quick fuse insertion and removal, saving 70% of the wiring time compared with the traditional screw terminal. Flame-retardant PA66+ copper material ensures corrosion resistance and low contact resistance. The DIN rail direct installation design is suitable for harsh scenarios such as motor control. With a rich variety of accessories, it supports customized power distribution solutions.

Technical Parameters

Model No.	JST4-HESI Fuse terminal block
Color	Black, Gray.
Length/Height/Wide (mm)	62.5 / 35.6 / 6.2 mm
Connection method	Spring cage connection
Material	Nylon PA66
Rated Voltage/Current	300V / 10A
Cross section, solid/soft Cable	0.08-4 mm² / 0.08-4 mm²
Conductor Size	24-12 AWG

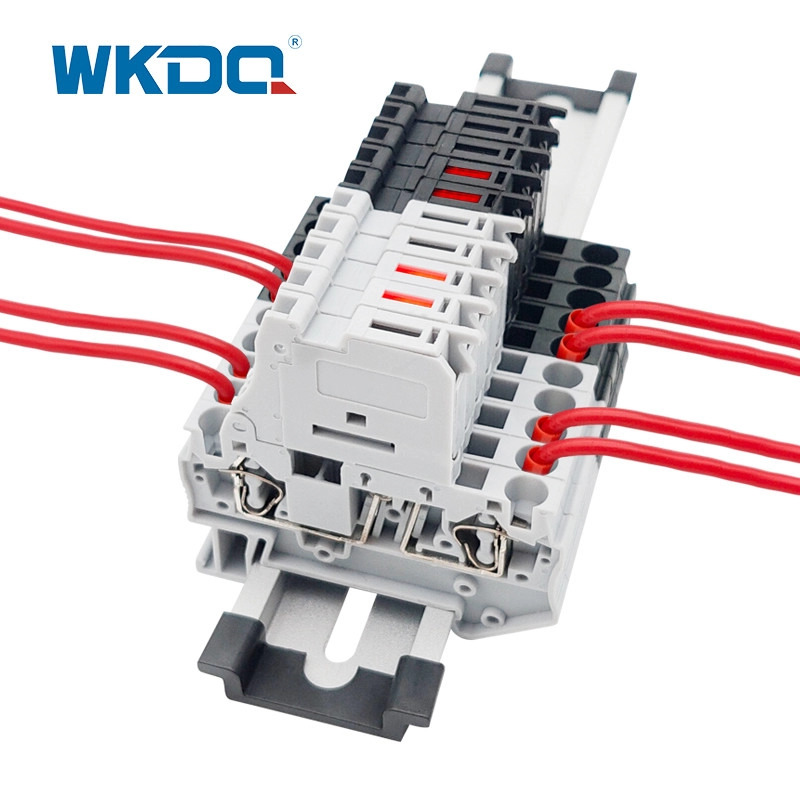

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized LOGO can be made.
Packing Detail	17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
