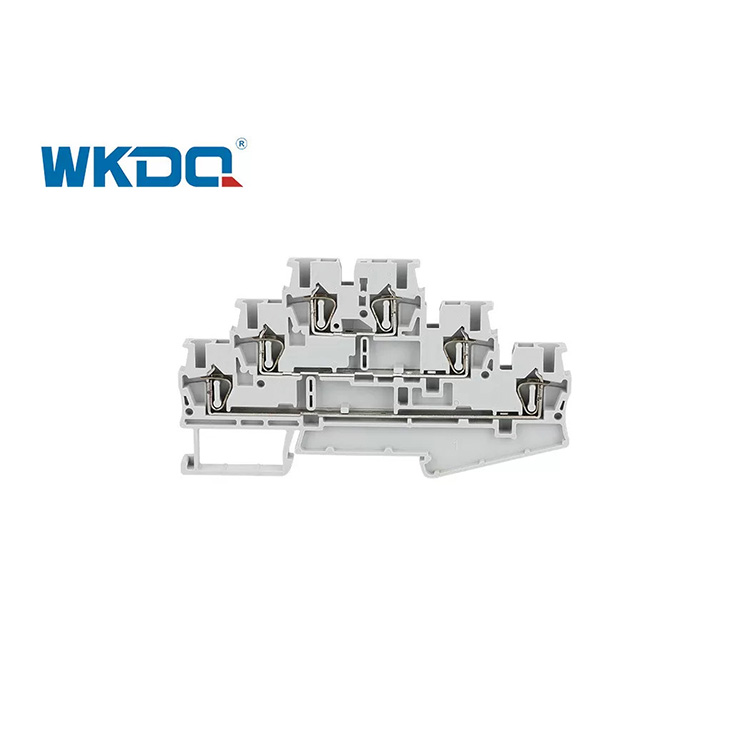

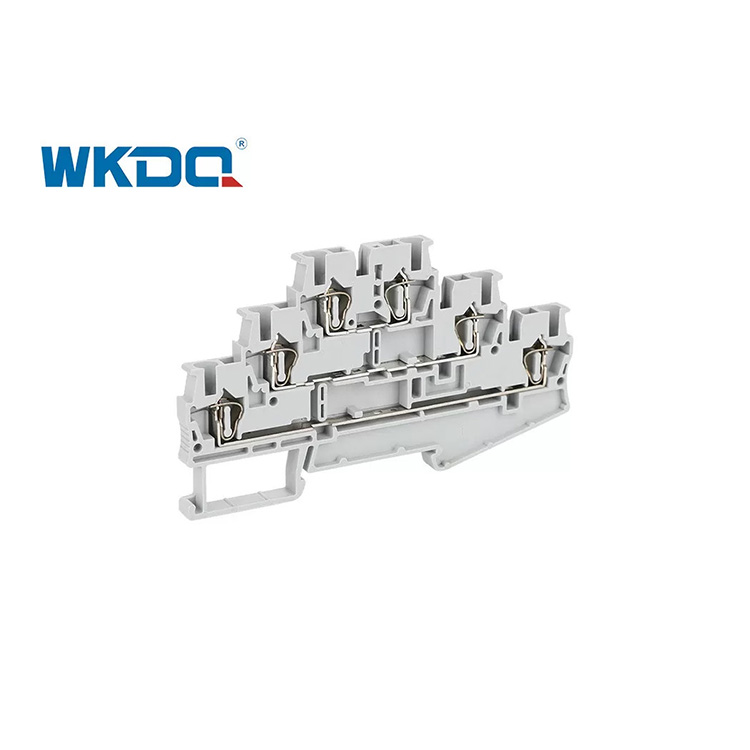

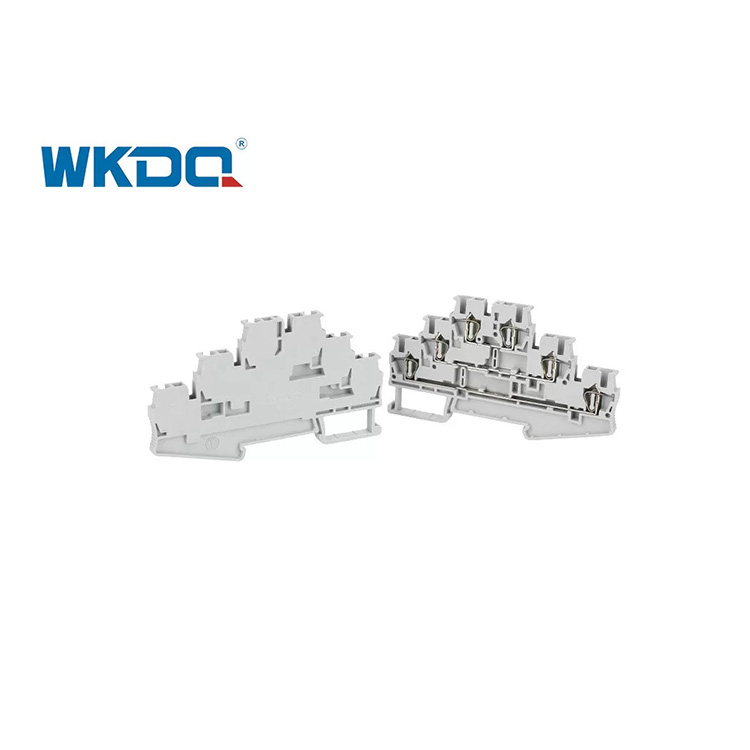

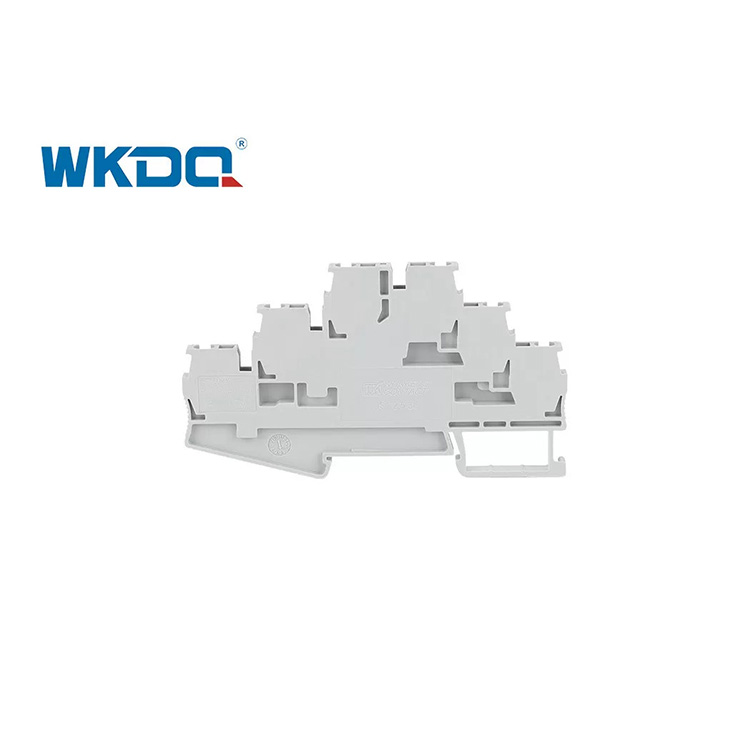

JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving
  • JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space SavingJST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving
  • JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space SavingJST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving
  • JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space SavingJST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving
  • JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space SavingJST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving
  • JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space SavingJST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving

JST 2.5-3L Spring Loaded Terminal Block Connector Multiple Three Levels Layer Space Saving

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-3L
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 2.5-3L

Send Inquiry

Product Description

     The multi-layer terminal block offers standard/double-layer/triple-layer configurations. It features high-density wiring to save space, anti-corrosion contacts and flame-retardant PA66 brass material. It supports DIN rail installation and center bridging, and integrates LED indication and protection conductors to achieve stable low-resistance connection and long-term durability of sensors/control systems.

Technical Parameters

Model Number JST 2.5-3L
Color Grey, Blue, Orange
L/H/W(mm) 99.5/57/5.2
Connection Spring connecting
Material Flame retardants Nylon PA66
Standing Voltage/Current 500V/28A
Cross size, solid/stranded wire 0.2-4mm2 / 0.2-2.5 mm2
Conductor Dimension 28-12 AWG

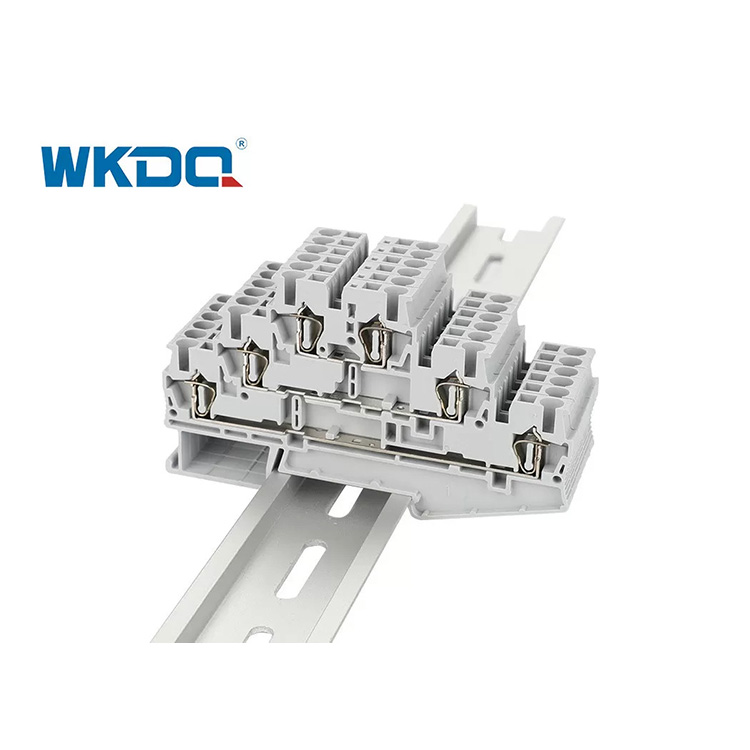

Mounting Type DIN 35mm
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing 17.07g/pc, 50PCS/BOX,1000PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
