JST 2.5-QUATTRO-PE Spring Terminal Block , Spring Cage Connection Terminal Block CE Certificate

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-QUATTRO-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 2.5-QUATTRO-PE

Send Inquiry

Product Description

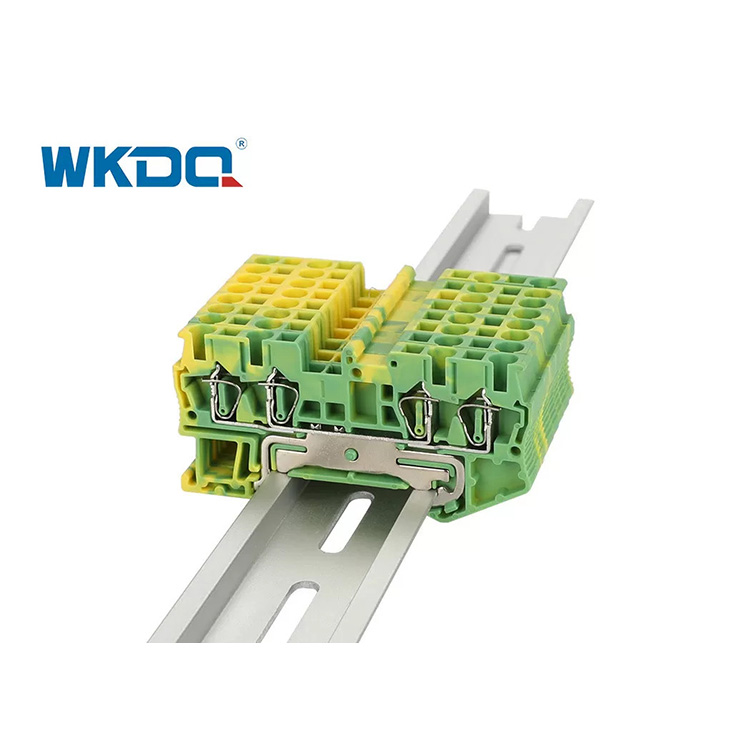

       The WonkeDQ spring-clamped grounding terminal block is made of flame-retardant PA66+ tin-plated brass material, with shockproof and anti-corrosion design. It features a DIN rail quick-installation structure that is compatible with 35mm standard rails. Spring crimping with low impedance (<0.05Ω) ensures stable power supply. Multiple marking positions support quick wiring management. Modular accessories (patch cords/end covers) are suitable for harsh scenarios such as industrial and hazardous environments.

Technical Parameters

Part No. JST 2.5-QUATTRO-PE
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 72.5/35.5/5.2
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/30A
Cross section, solid/soft Cable 0.2-4mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 12.51g/pc, 65PCS/BOX, 2500PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
