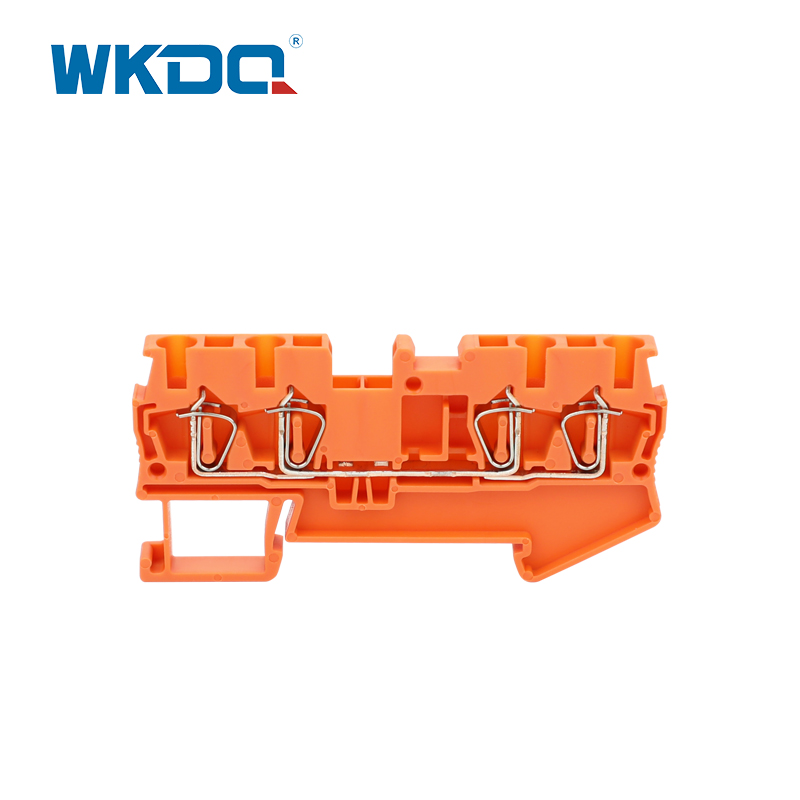

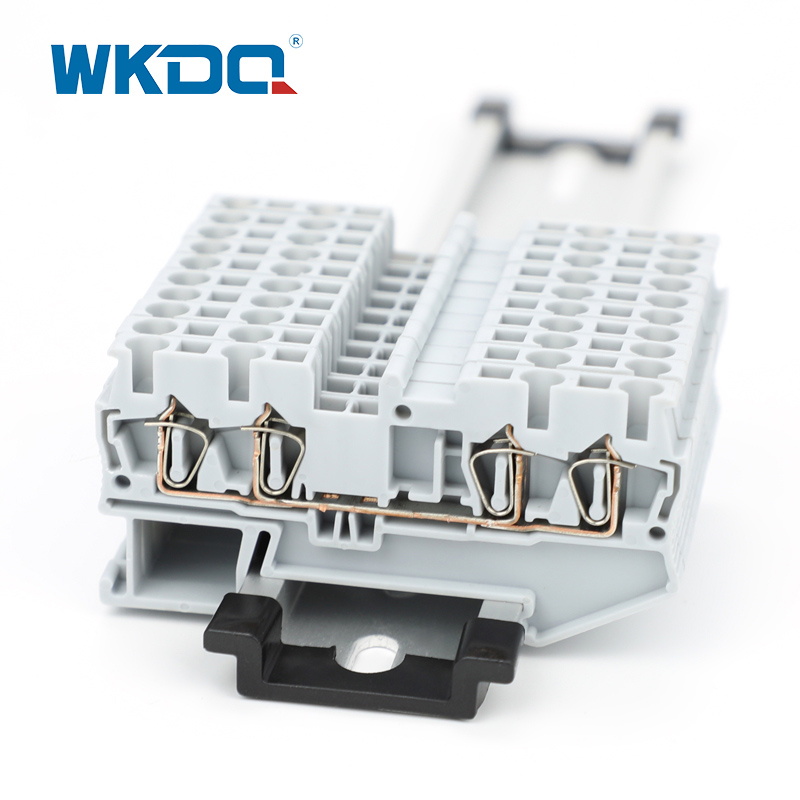

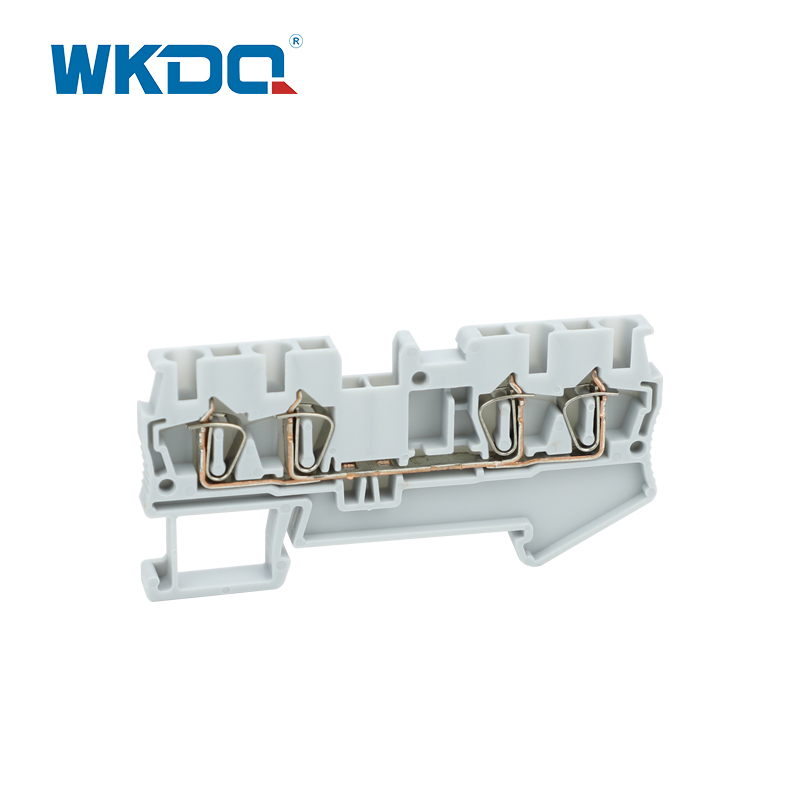

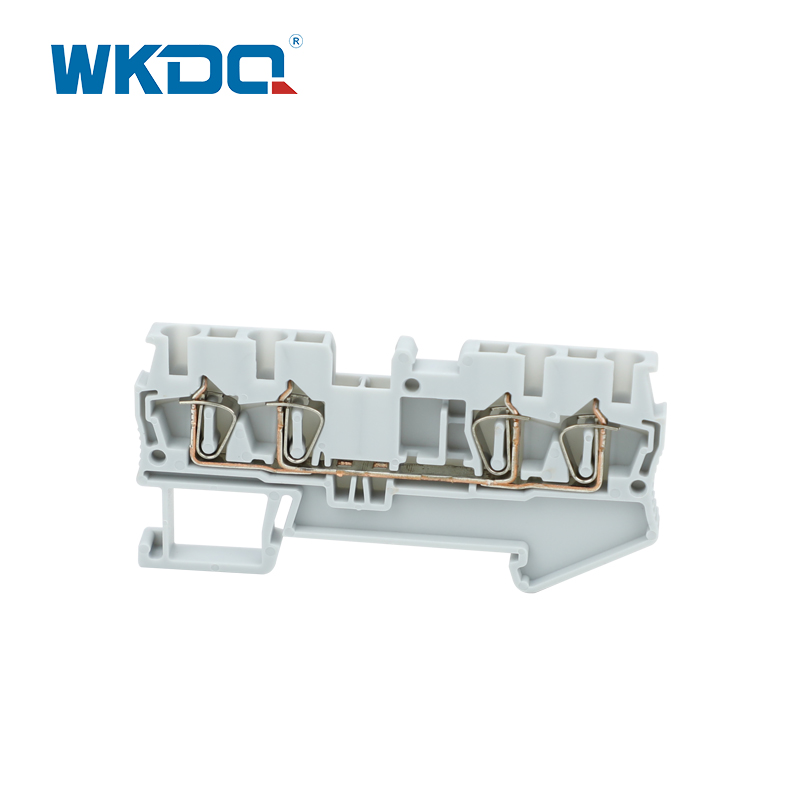

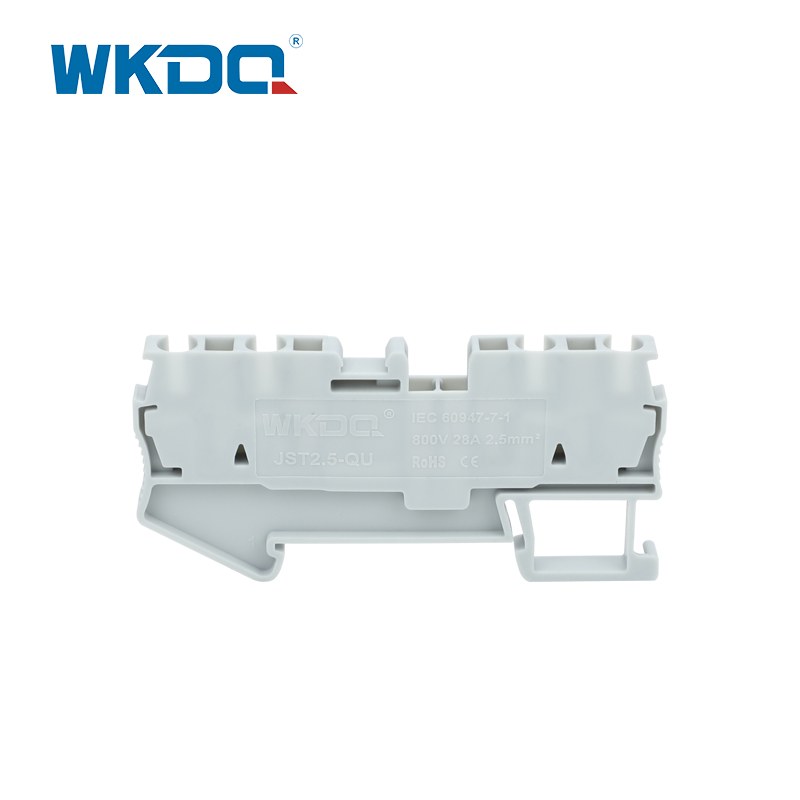

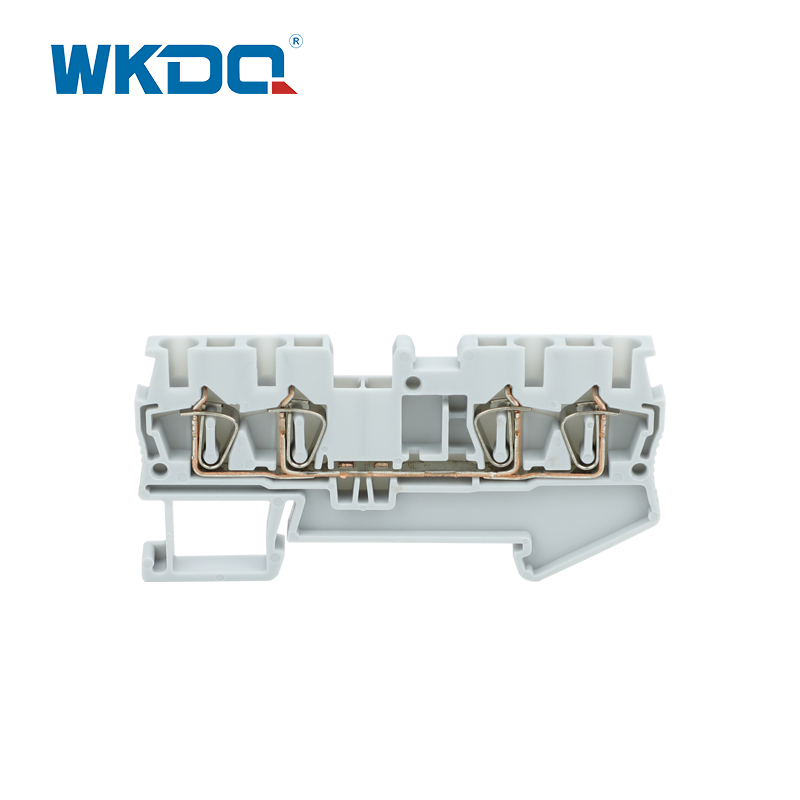

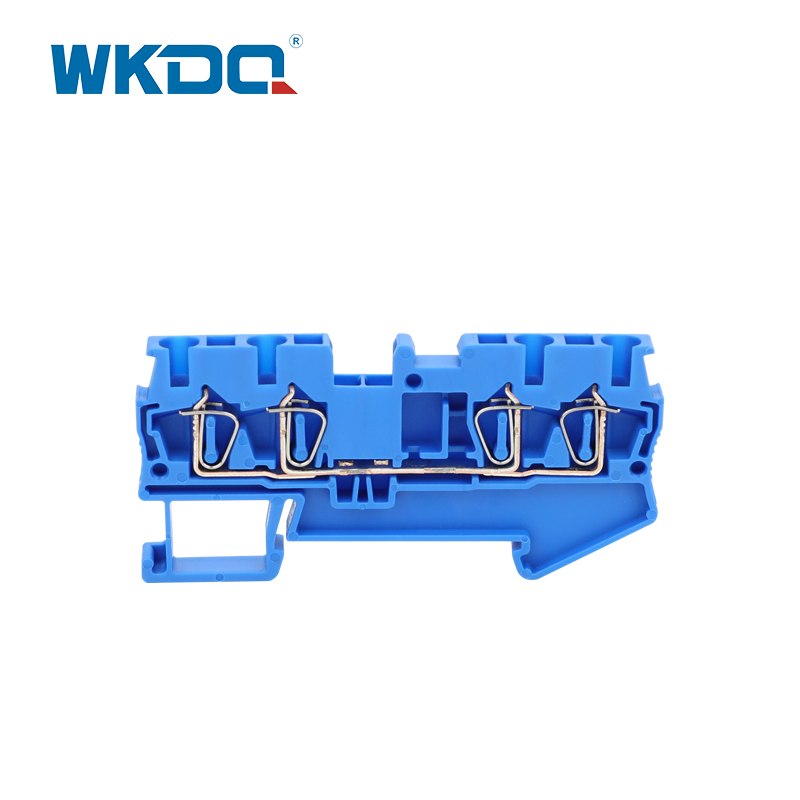

ST2.5 quattro Spring Loaded Wire Connector

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5 QUATTRO
Packaging Details: Box
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST2.5-QU

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

WonkeDQ industrial terminals: 72-hour express delivery, IEC spring clip terminals support screw-free quick installation, flame-retardant PA66+ brass airtight contacts, suitable for high-vibration scenariosThe compact design of the front wiring saves 30% of cabinet space, supports jumper insertion and partition distribution, and has passed UL/CE certification. It provides OEM customization and is designed to provide highly reliable connection solutions for new energy, rail transit, and industrial automation.

Model Number	JST 2.5-QUATTRO
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	72.5/35.5/5.2
Connection method	Spring connecting
Material	Flaming resistant Nylon PA66
Rated Voltage/Current	800V/30A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Mount NS 35
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	9.18g/pc, 65PCS/BOX, 2600PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
