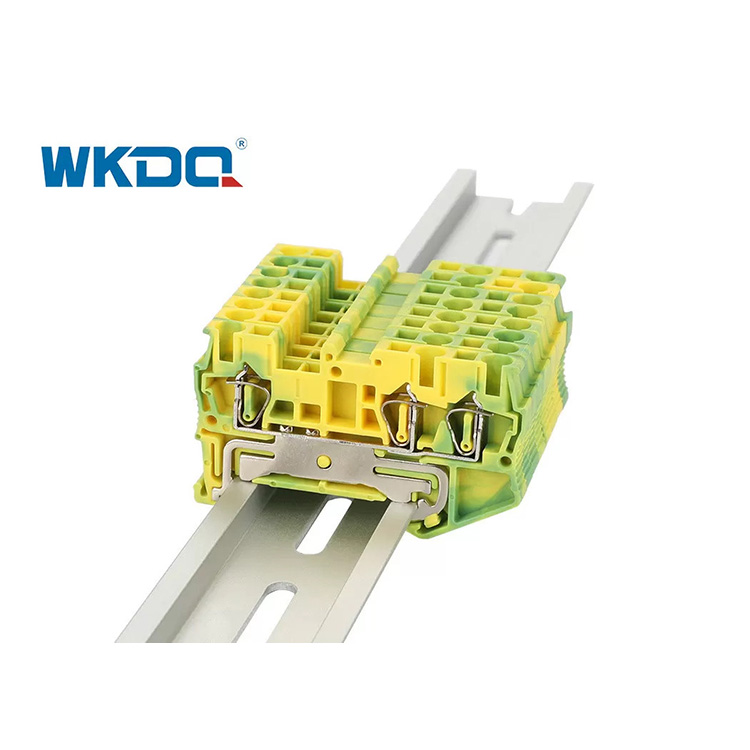

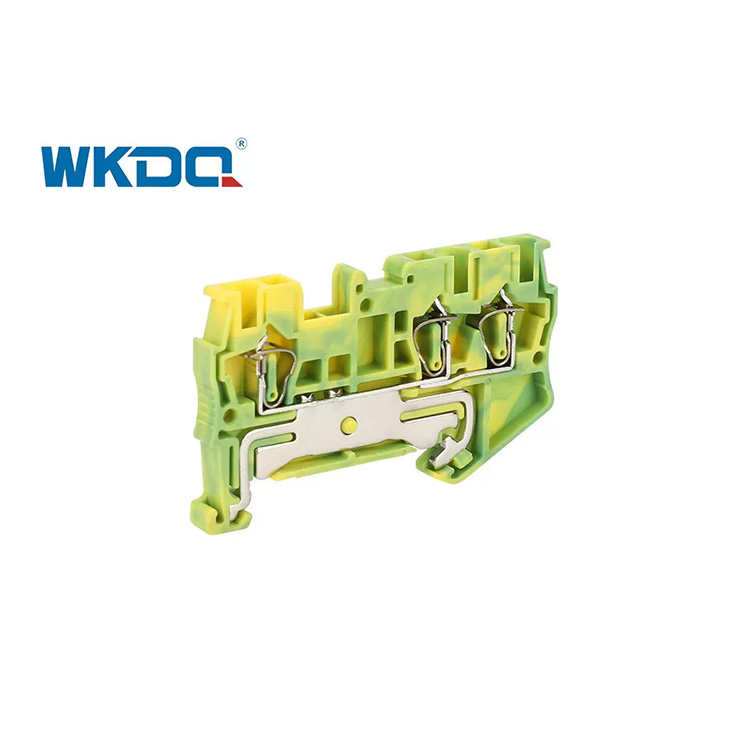

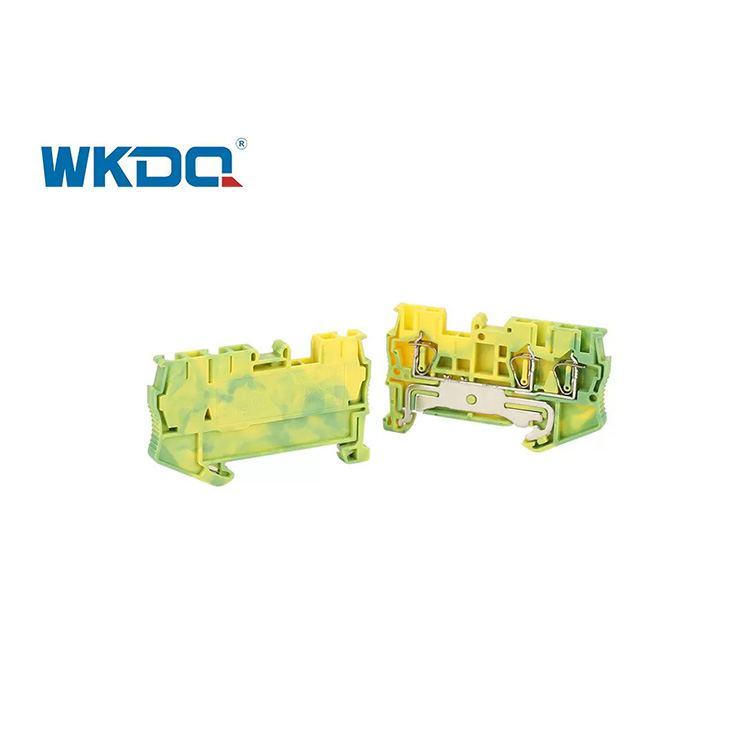

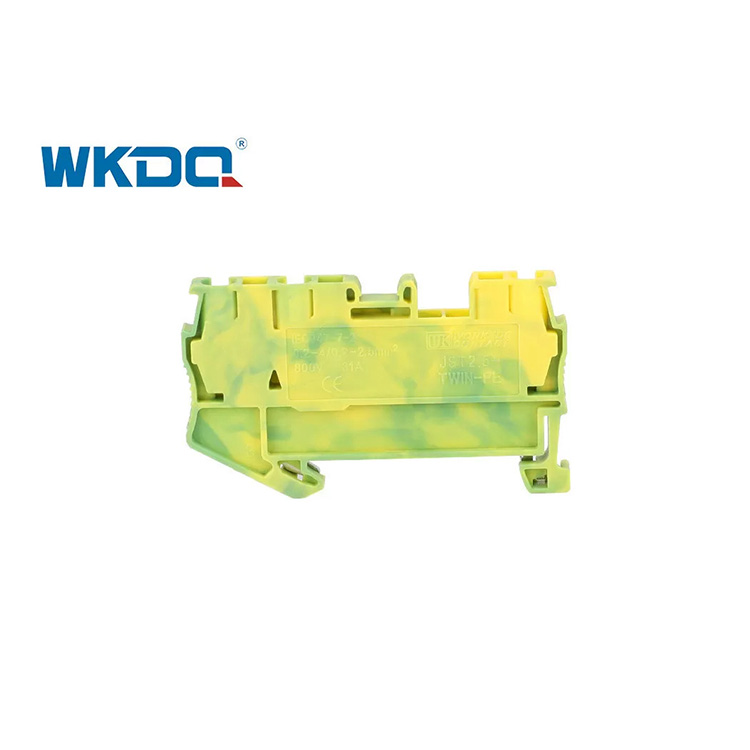

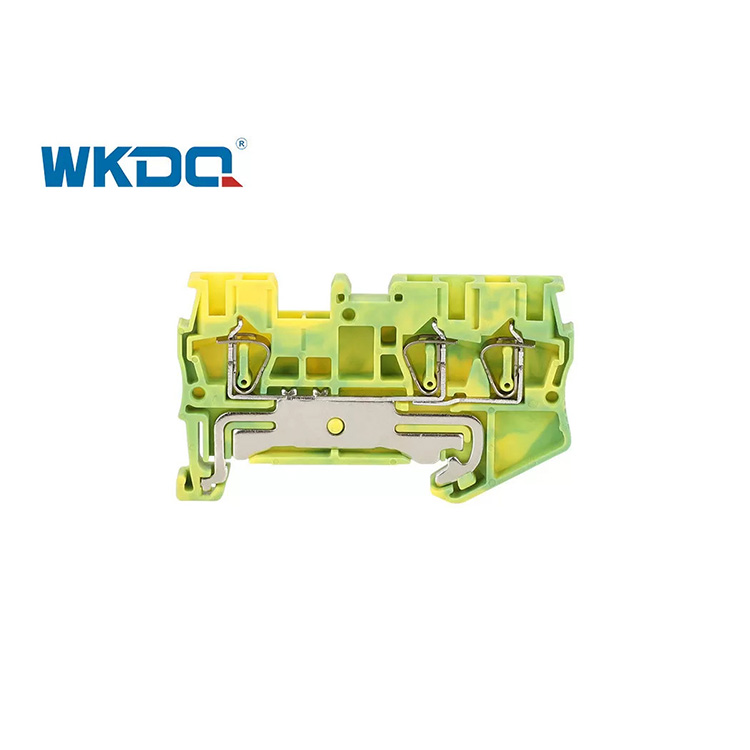

JST 2.5-TW-PE Terminal Block CE Certificate Twin Grounding Snap On Mounting
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-TW-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JST 2.5 TW PE
Send Inquiry
Product Description
The JST 2.5TW PE is made of PA66+ brass material, with yellow-green dual-color forced grounding markings. The shockproof and airtight design enables stable connection with low impedance (<0.05Ω). DIN rail quick installation + spring crimping technology ADAPTS to multiple wire diameters. The complete set of accessories supports quick wiring, complies with IEC standards, and saves 80% of installation time.
Technical Parameters
| Model No. | JST 2.5-TW-PE |
| Color | Yellow/Green, other color can be customized |
| Length/Wide/Height (mm) | 61/36/5.2 |
| Connection method | Spring clamp |
| Material | Flame retardant Nylon PA66 |
| Rated Voltage/Current | 800V/65A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5 mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 10.69g/pc, 50PCS/BOX, 1500PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
