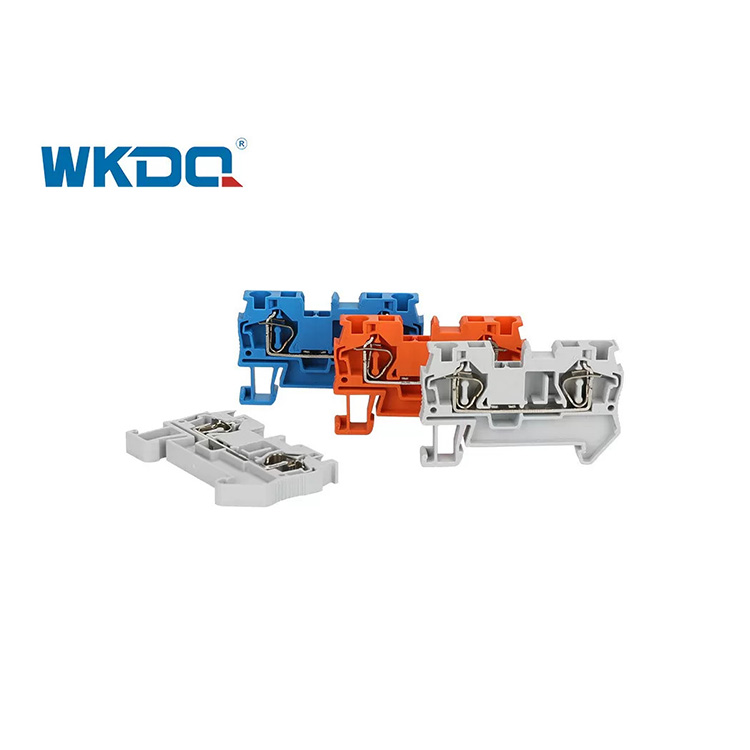

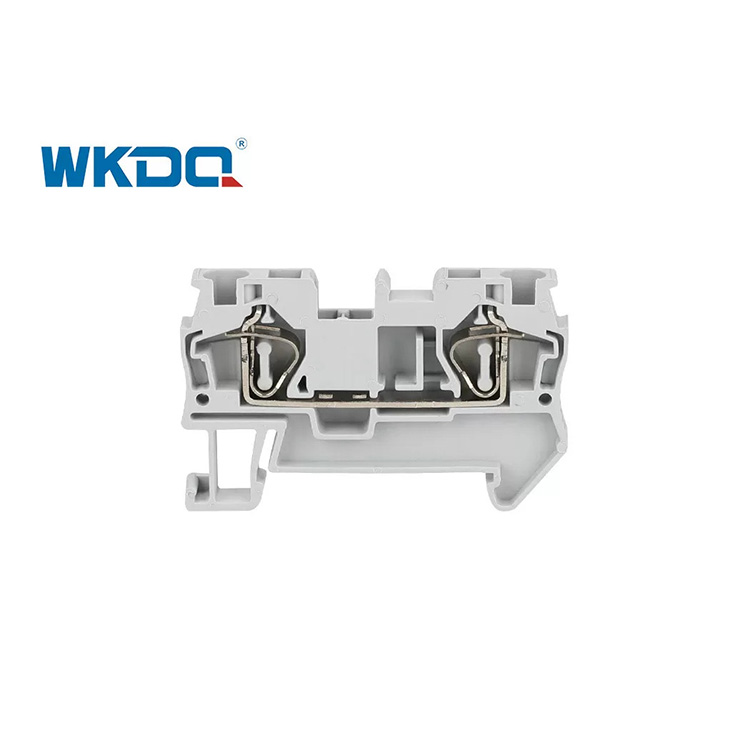

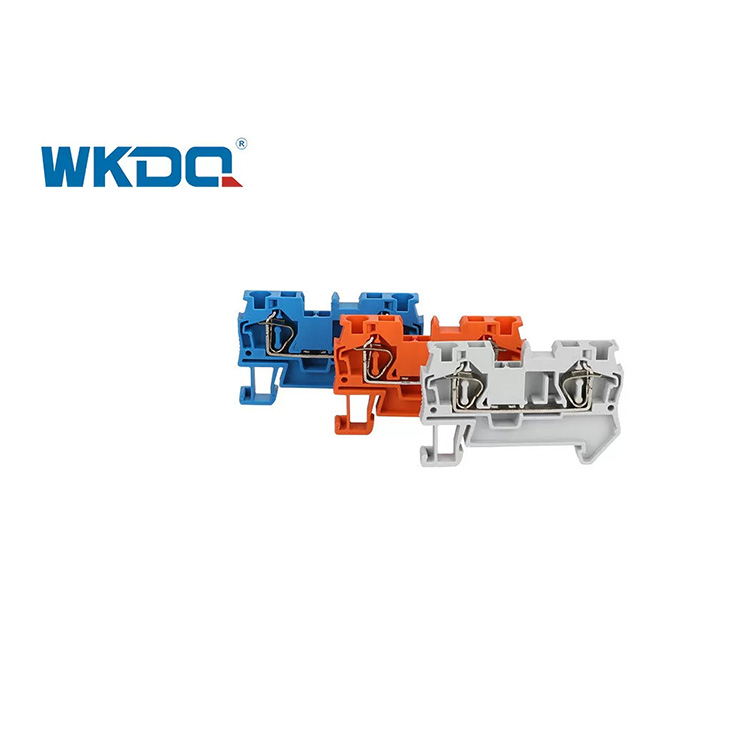

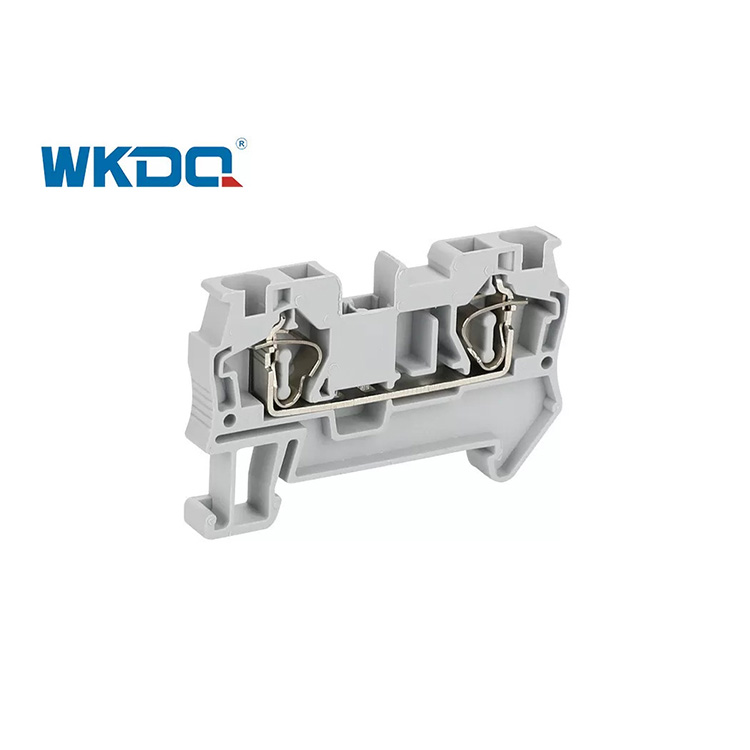

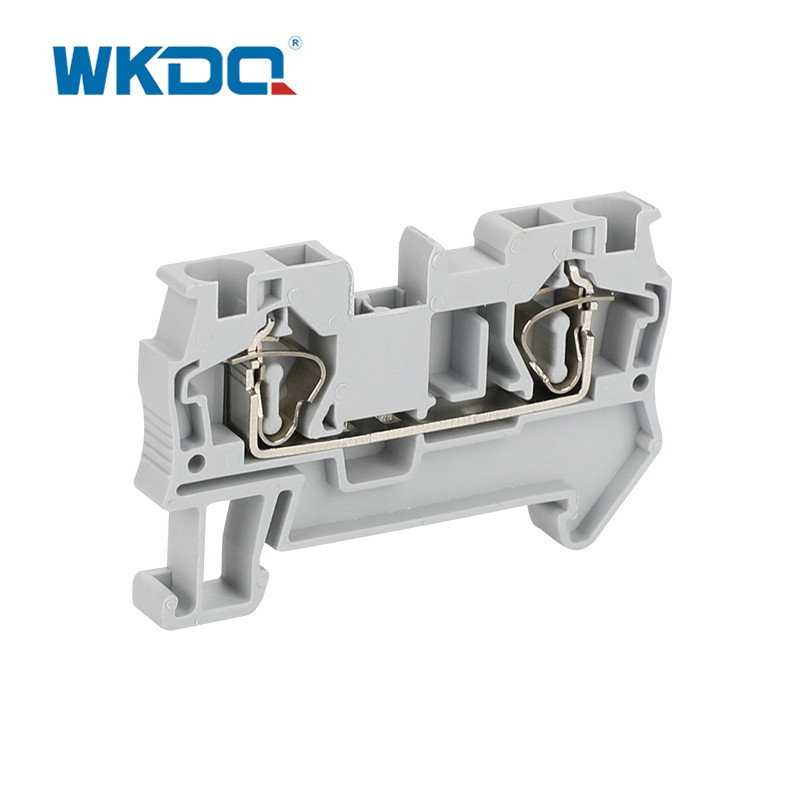

JST 4 Spring Terminal Block Connector Low Voltage Snap On Mounting

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 4
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 4

Send Inquiry

Product Description

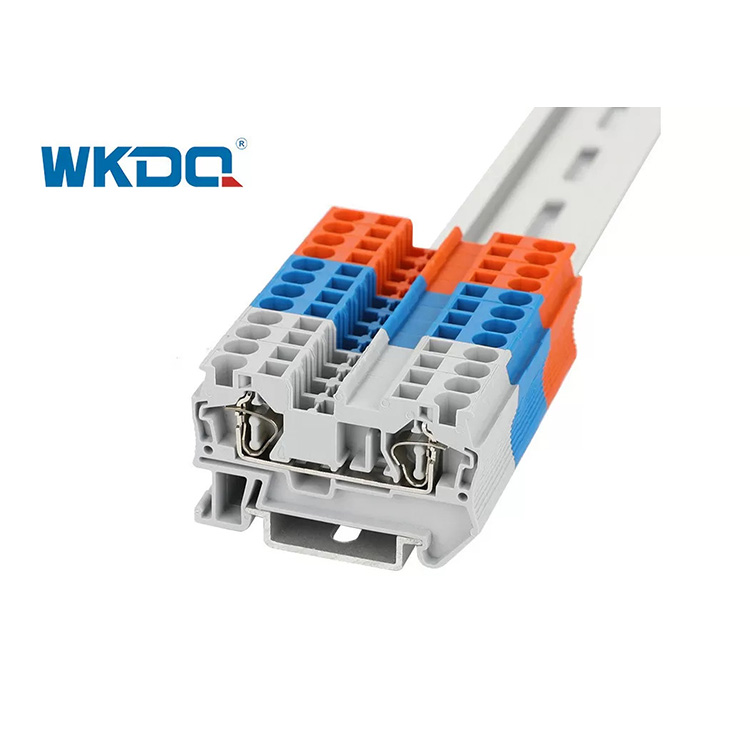

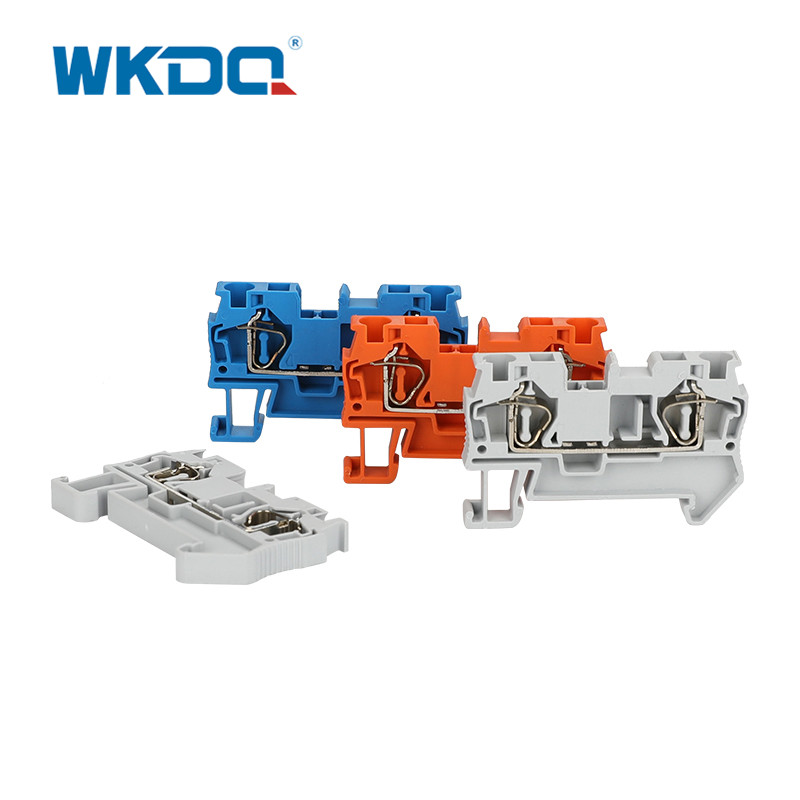

Spring Terminal Blocks integrate push-in and spring technologies for time-saving, low-stock installations with flame-retardant PA66+brass construction, offering gas-tight connections, corrosion-proof contacts, and low-resistance conductivity. Featuring DIN Rail NS 35 compatibility, front-access design, and space-saving wiring, they support two large conductors and modular accessories (bridges, covers) for secure, customizable electrical systems.

Technical Parameters

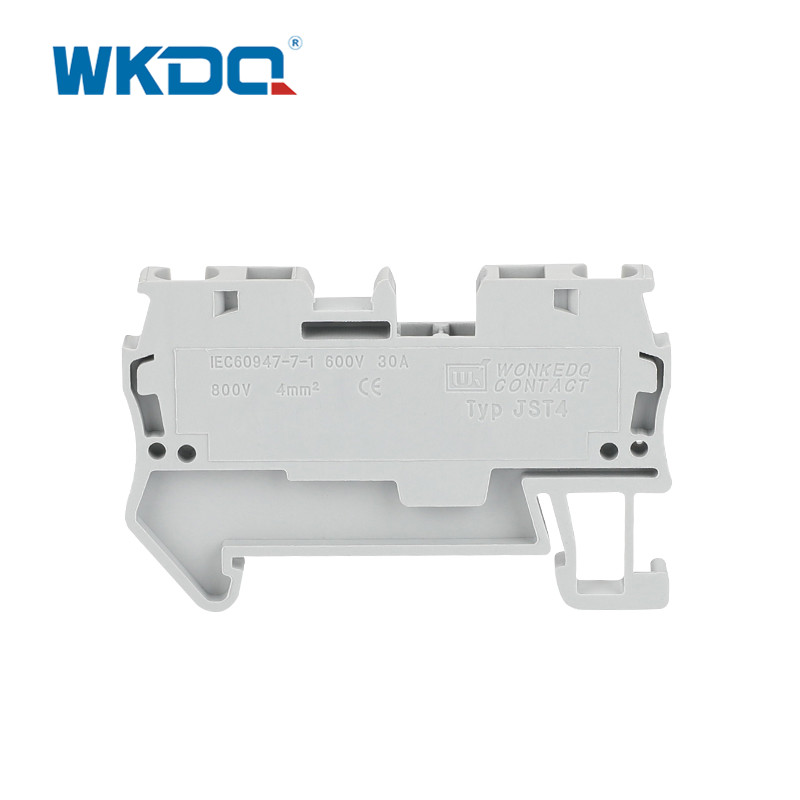

Model Number	JST 4

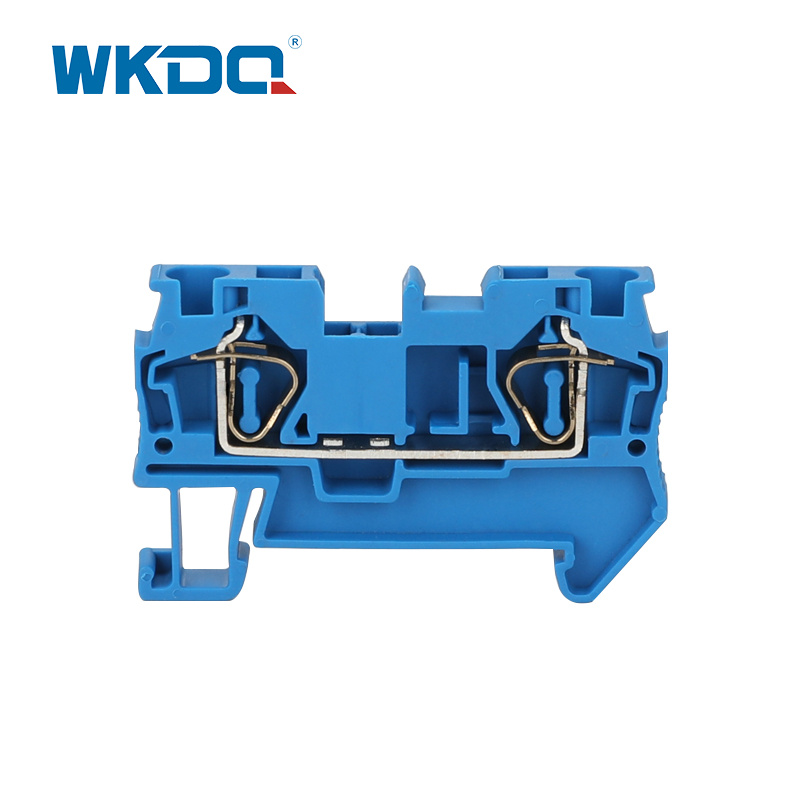

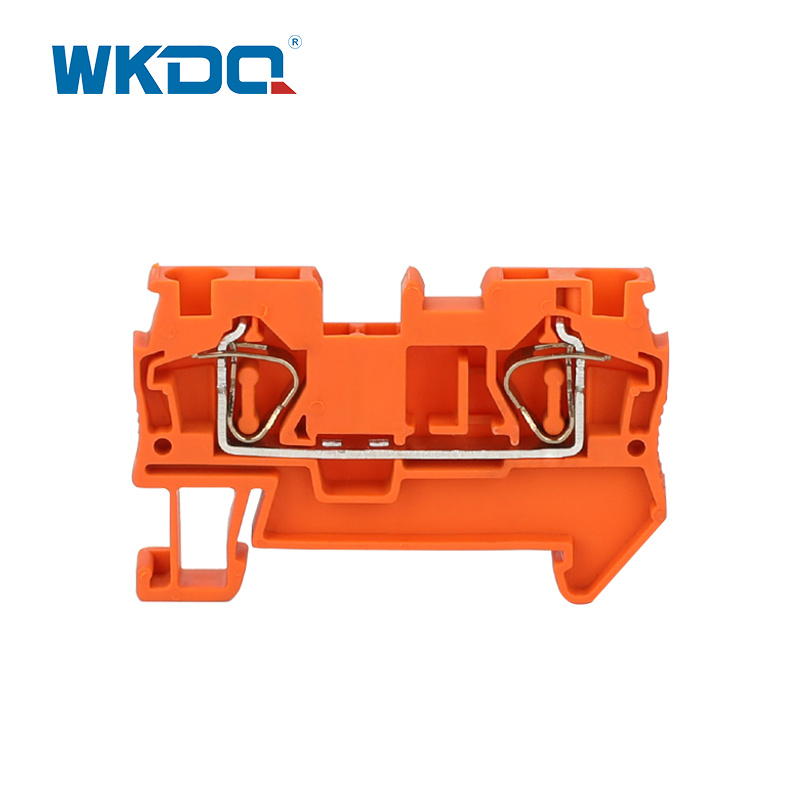

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	56.5/35.5/6.2
Connection method	Spring clip connection
Material	Nylon PA66
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	6.2g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
