JST 4-TW-PE Spring Terminal Block Connector 41A Rated Current High Durability

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 4-TW-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 4-TW-PE

Send Inquiry

Product Description

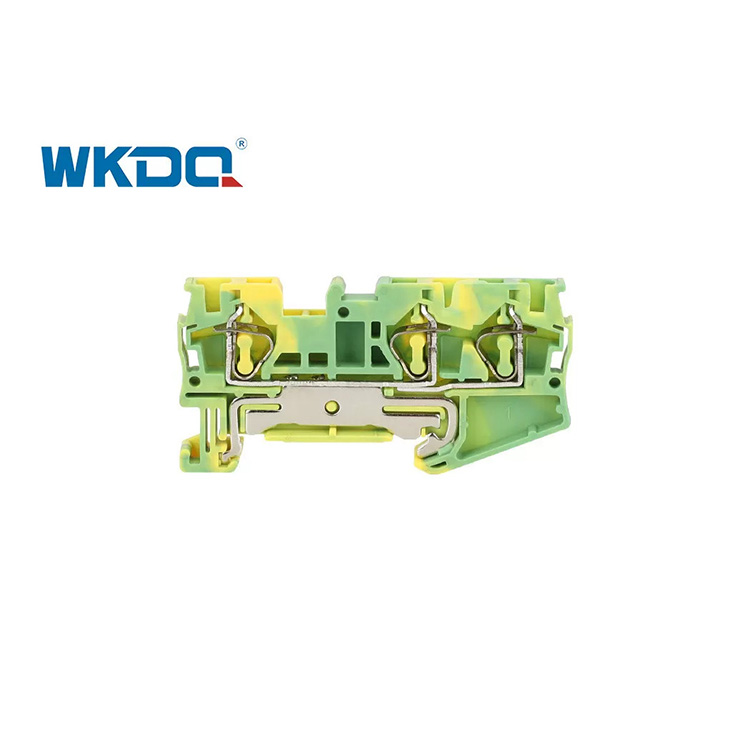

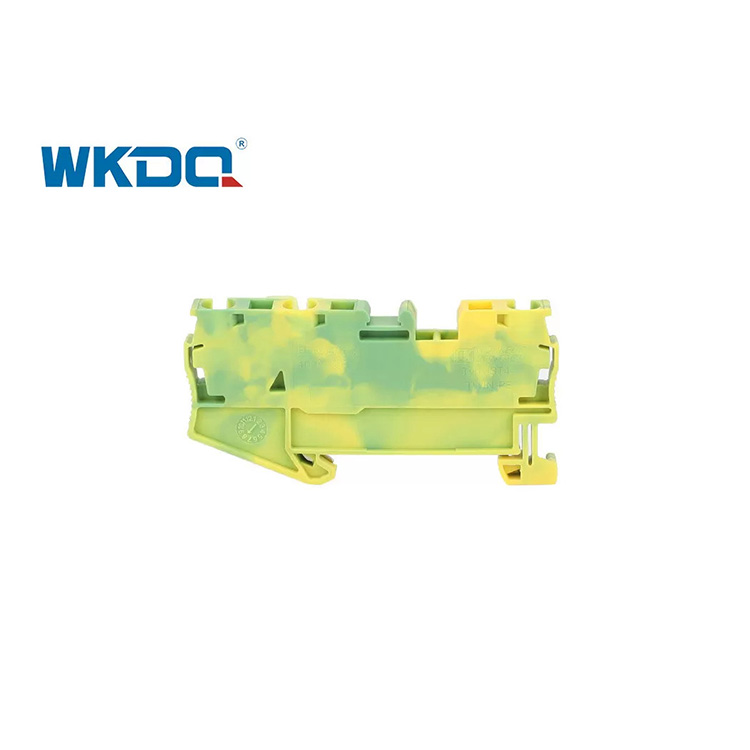

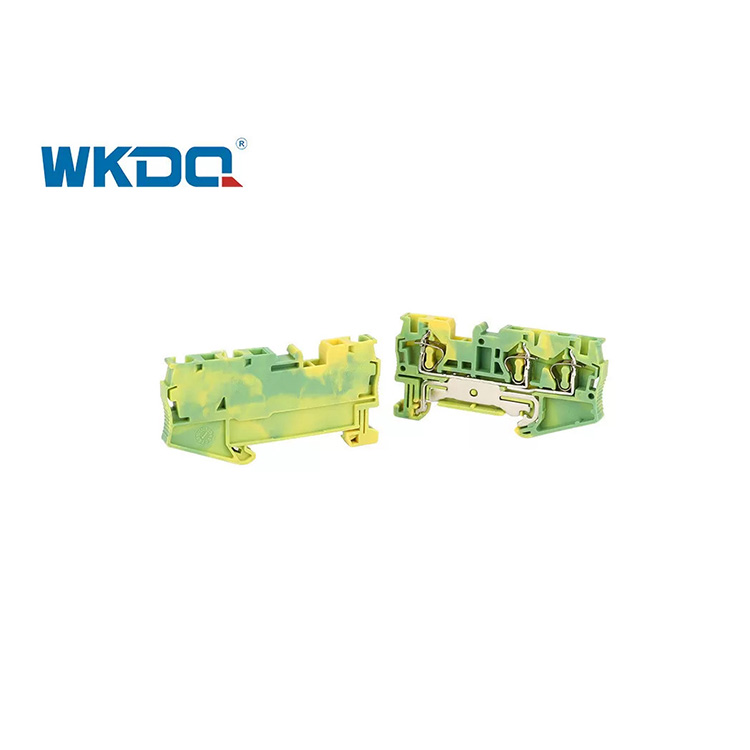

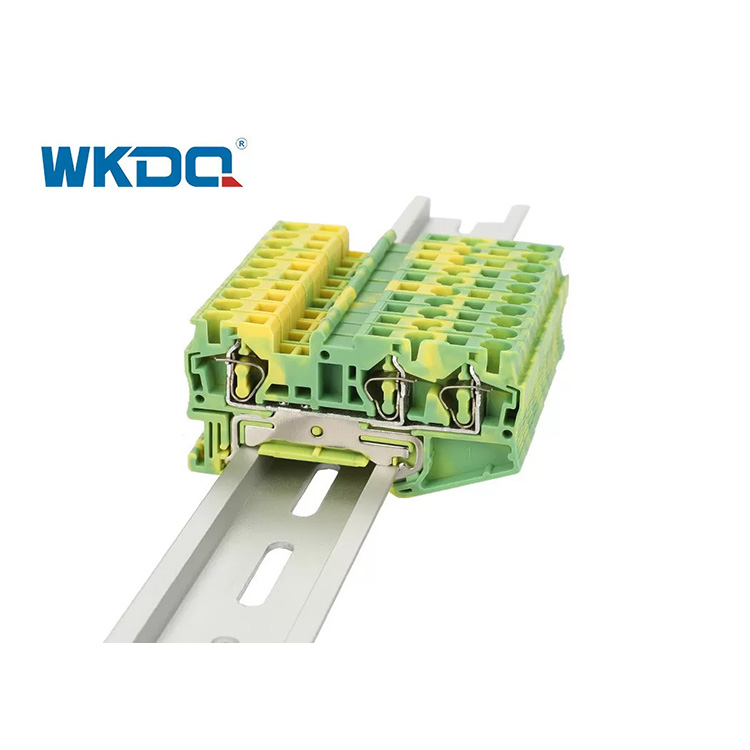

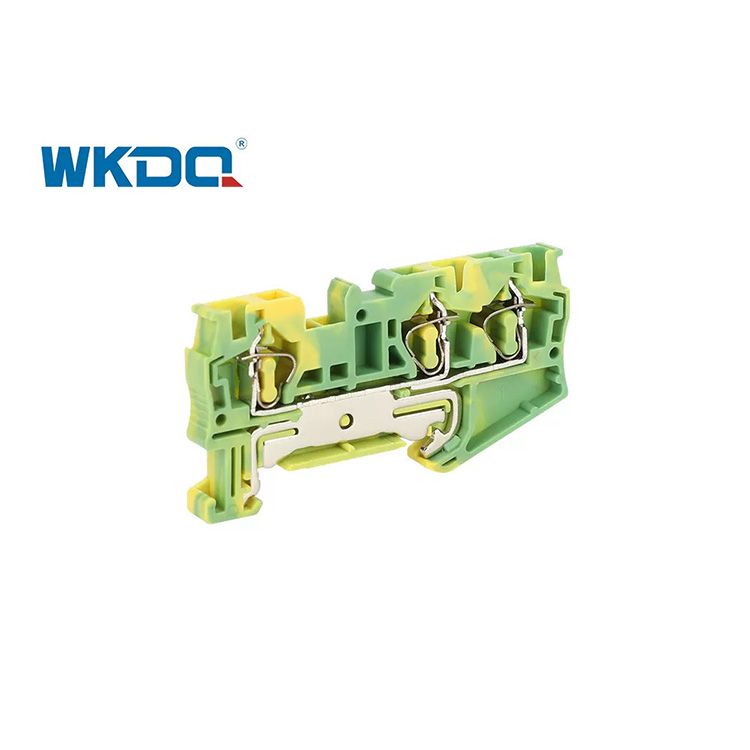

The JST 4 TW PE adopts flame-retardant PA66 shell and brass metal parts. The yellow-green dual-color shell has a mandatory grounding mark. The DIN rail instant installation design saves space and labor. The low contact resistance (<0.05Ω) combined with anti-corrosion contacts ensures stable connection. It is compatible with multi-diameter conductors and adapted to electrical control systems. The complete set of accessories supports modular expansion. It complies with the IEC 60947-7-2 standard and is reliable and durable.

Technical Parameters

Model Number	JST 4-TW-PE
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	71.5/36.5/6.2
Connection method	Spring connection
Material	Nylon PA66
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	14.98g/pc
Certification	CE/RoHS/CQC/ISO 9001
