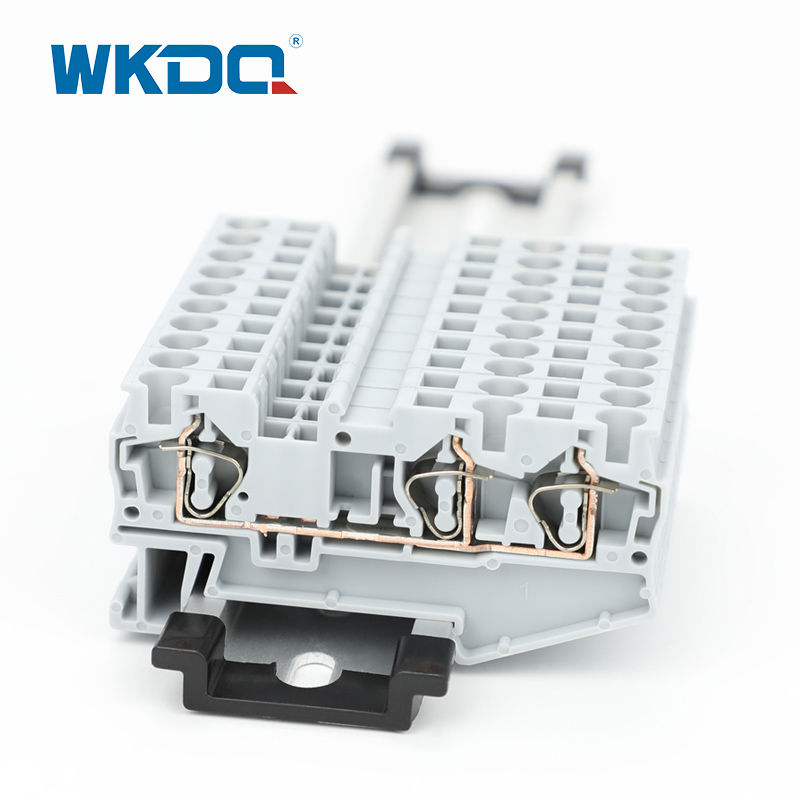

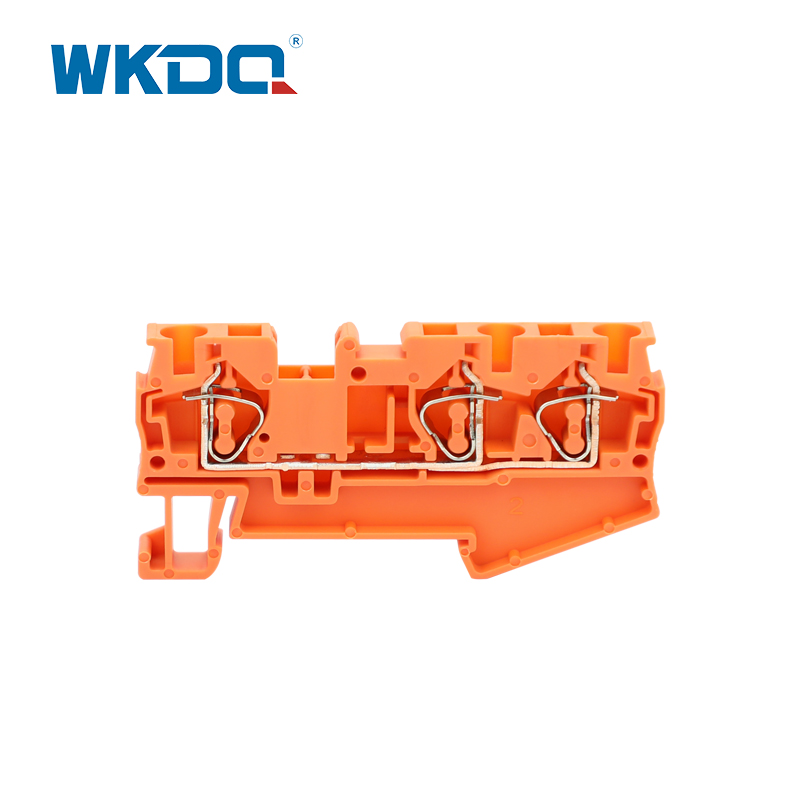

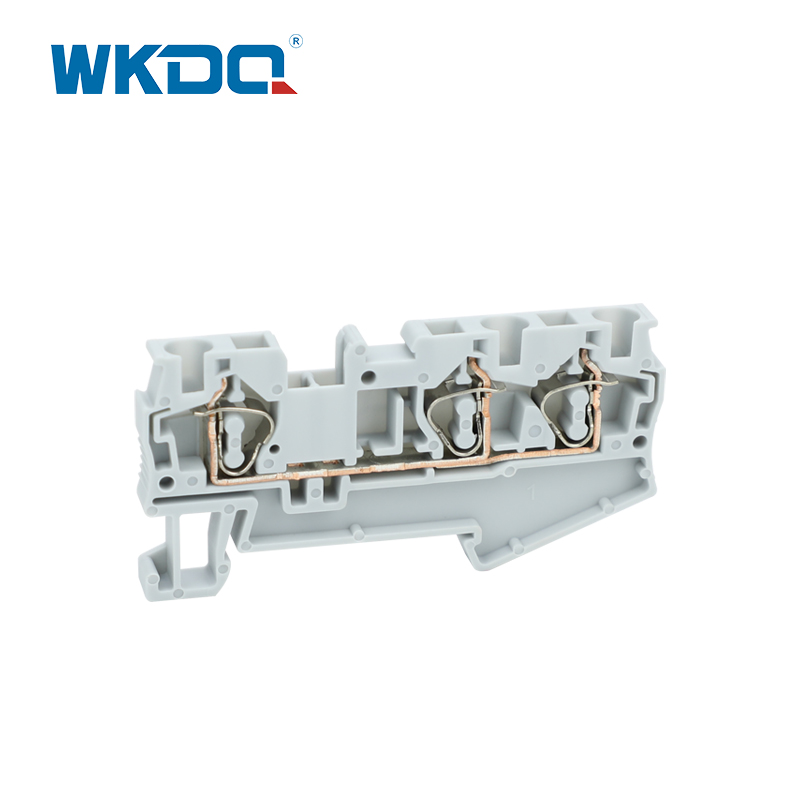

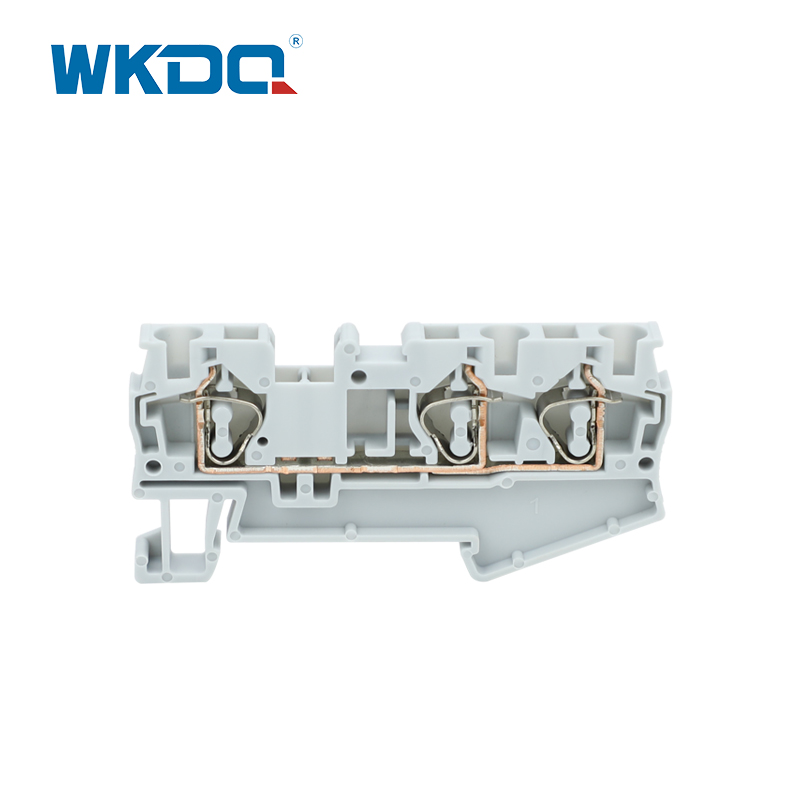

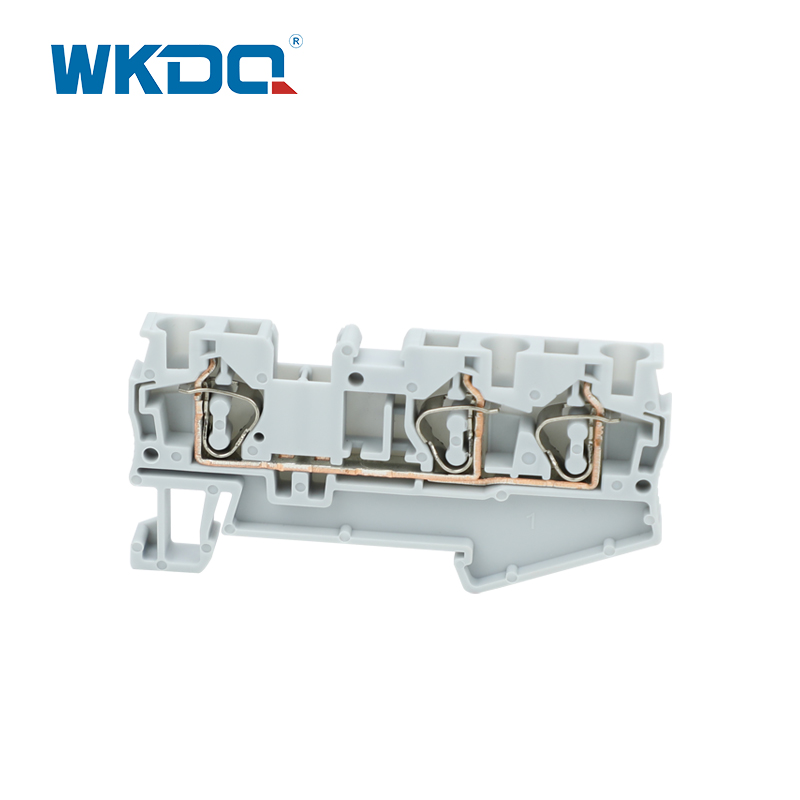

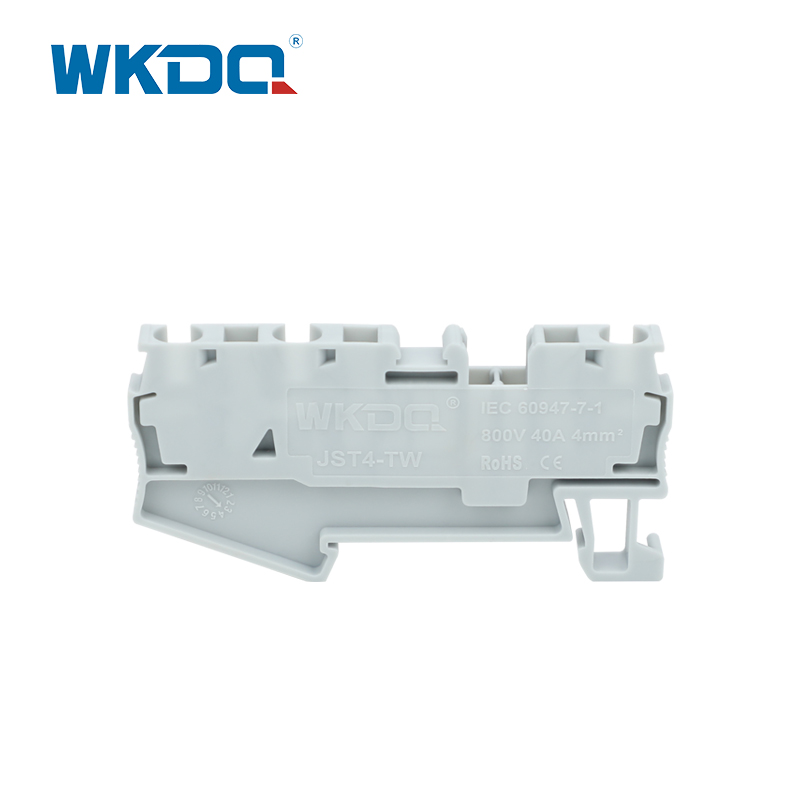

TWIN Springs Terminal Block Connector

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 4 TWIN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 4 TW

Send Inquiry

Product Description

The JST 4-TW DIN rail terminal block is made of flame-retardant PA66+ brass material, supporting multi-conductor (3 wires in parallel) and airtight anti-loosening connection (<0.05Ω). The DIN rail quick-installation design saves 70% of working hours. The anti-corrosion contact points and compact front-end wiring are suitable for narrow Spaces and harsh scenarios such as industry, elevators, and railways, meeting international safety certifications.

Technical Parameters

Model Number	JST 4-TW
Color	Grey, Blue, other color can be customized
Dimension (mm)	L71.5/H36.5/W6.2
Connection method	Spring cage connection
Material	Anti-flaming Nylon PA66
Rated Voltage/Current	800V/41A
Cross, hard/stranded Cable	0.5-6mm² / 0.5-4 mm²
Conductor	20-10 AWG
Mounting	NS 35 DIN rail
Standard	IEC 60947-7-1
Brand	WonkeDQ, LOGO can be customized
Packing Detail	11.6g/pc, 55PCS/BOX, 2200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
