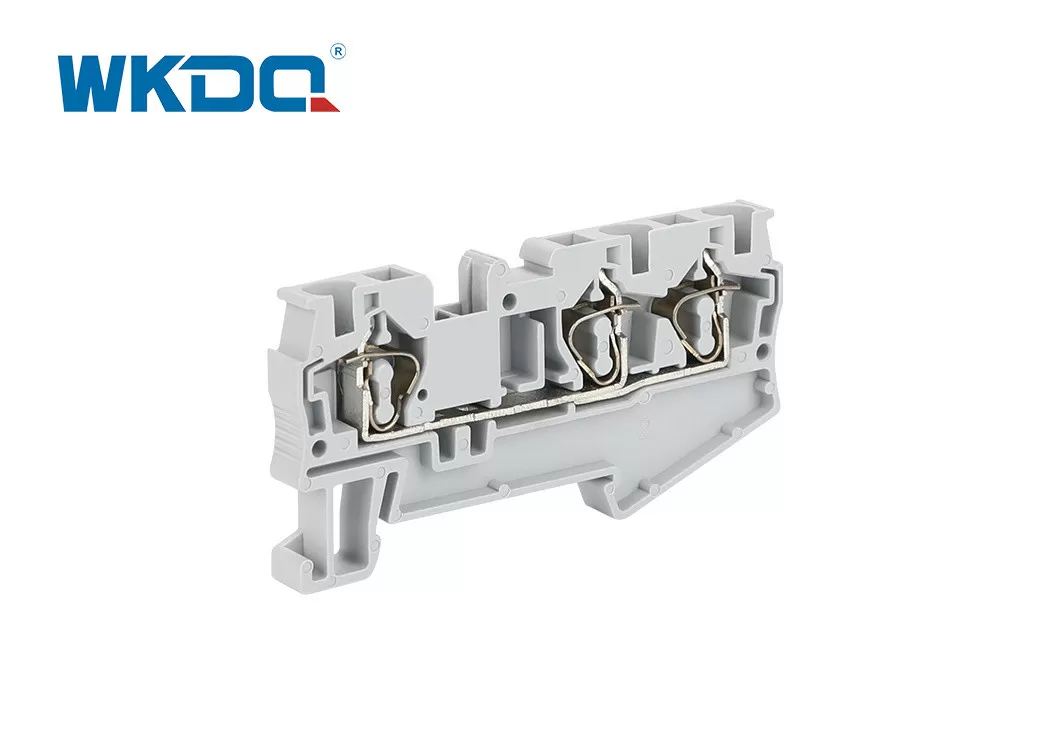

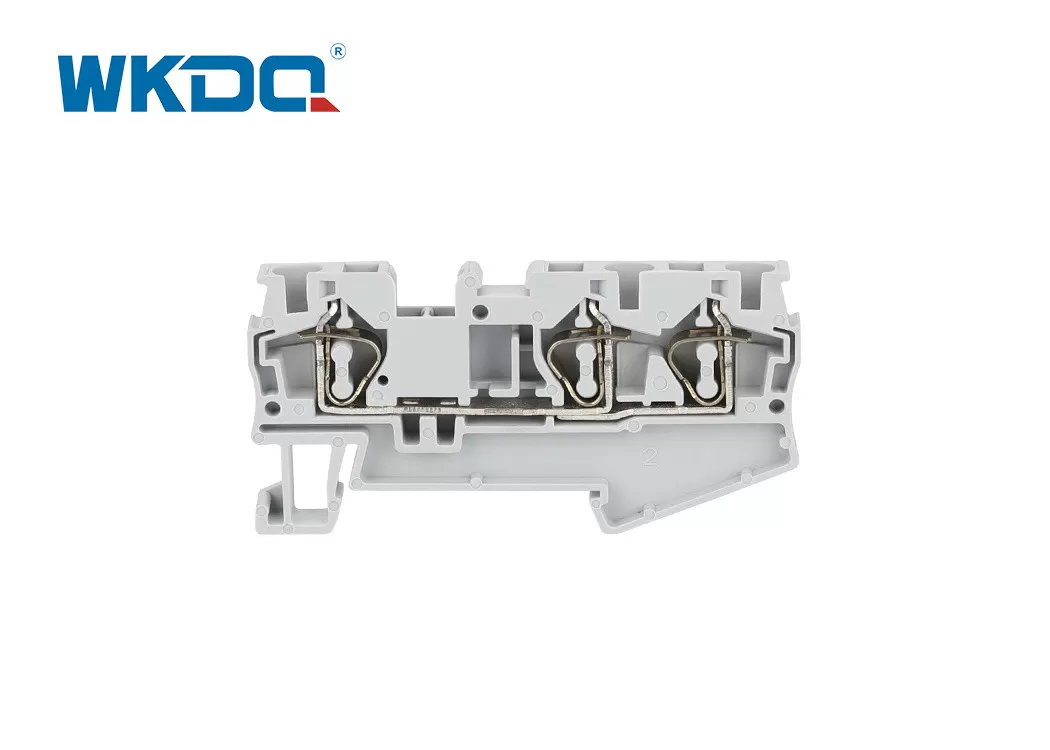

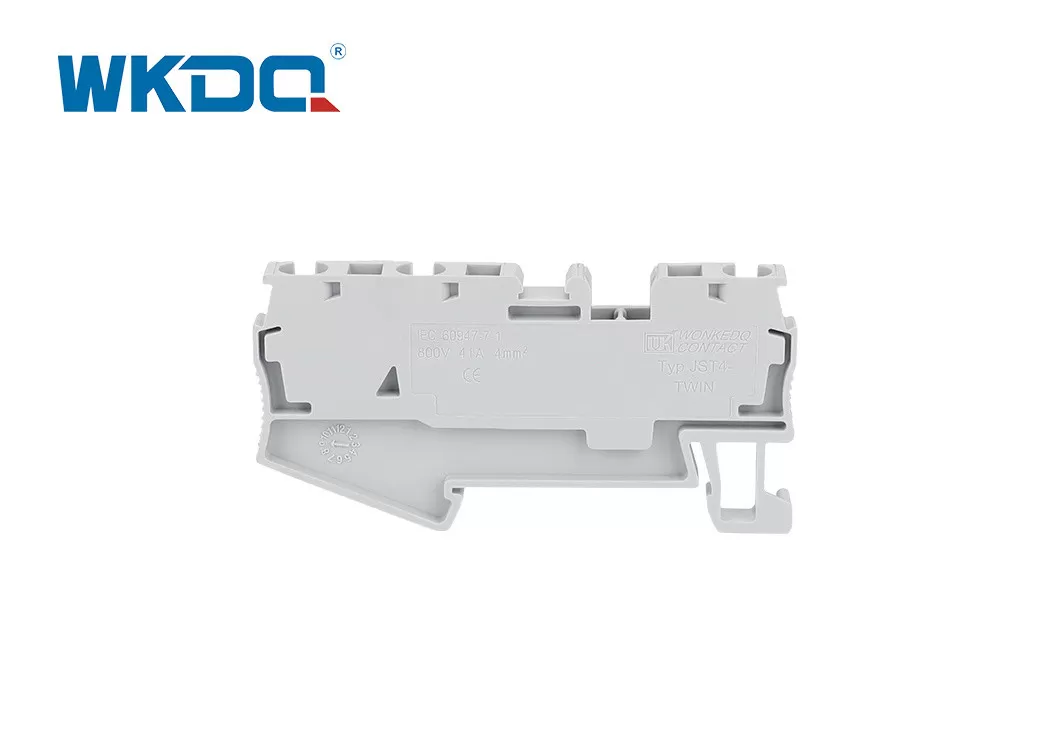

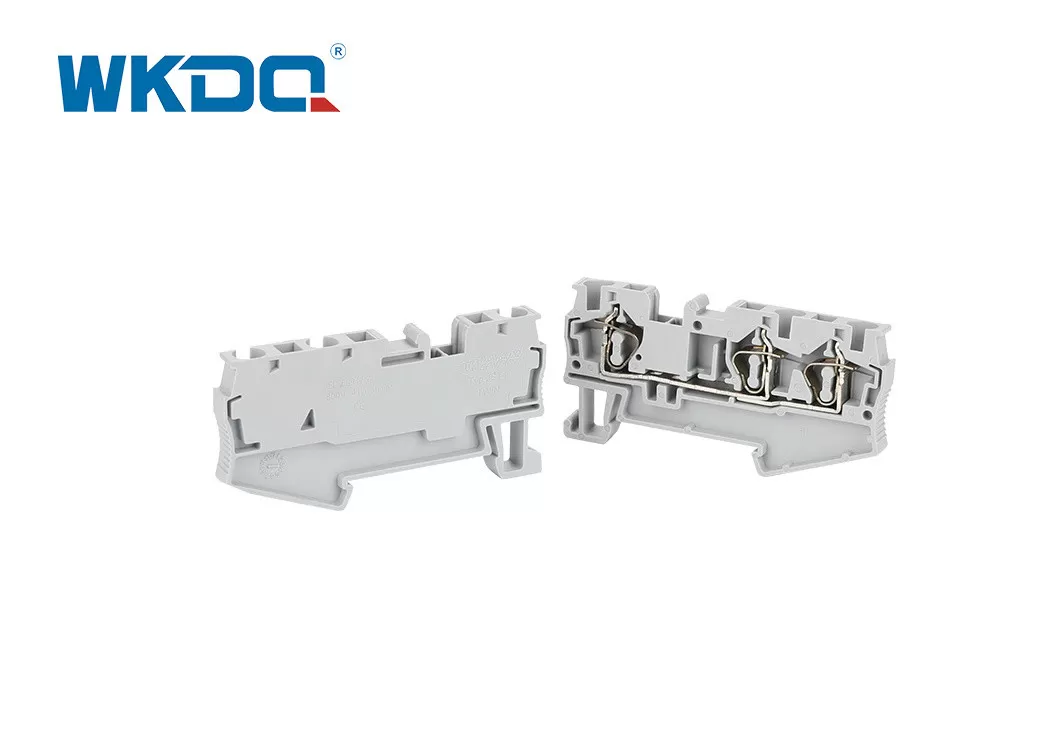

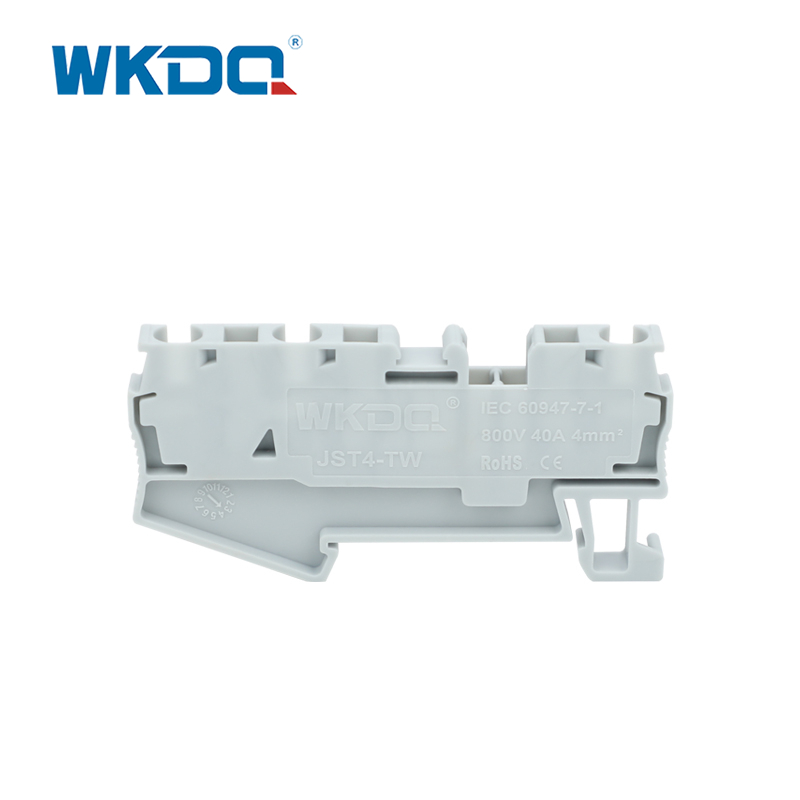

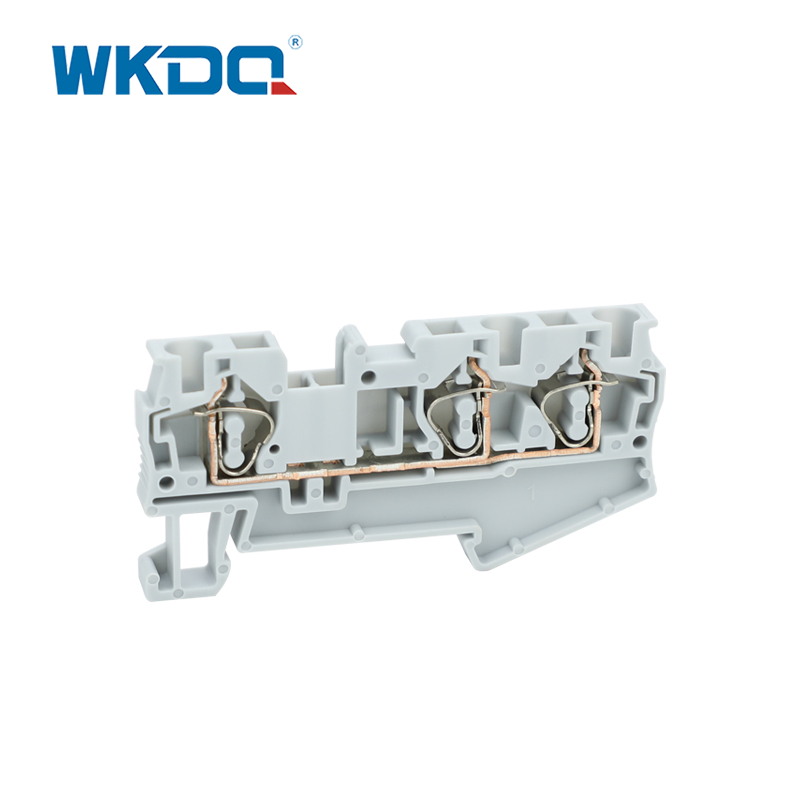

TWIN Spring Terminal Block Connector

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 4 TWIN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 4 TWIN

Send Inquiry

Product Description

WonkeDQ rail terminal: flame retardant PA66+brass contact, airtight and earthquake resistant; Quick connect design suitable for industrial control/railway scenarios, CE/UL certification, compact front wiring saves 30% space, supports multi line parallel connection and expansion accessories, ensuring long-term stability in high vibration environments.

Model Number	JST 4-TW

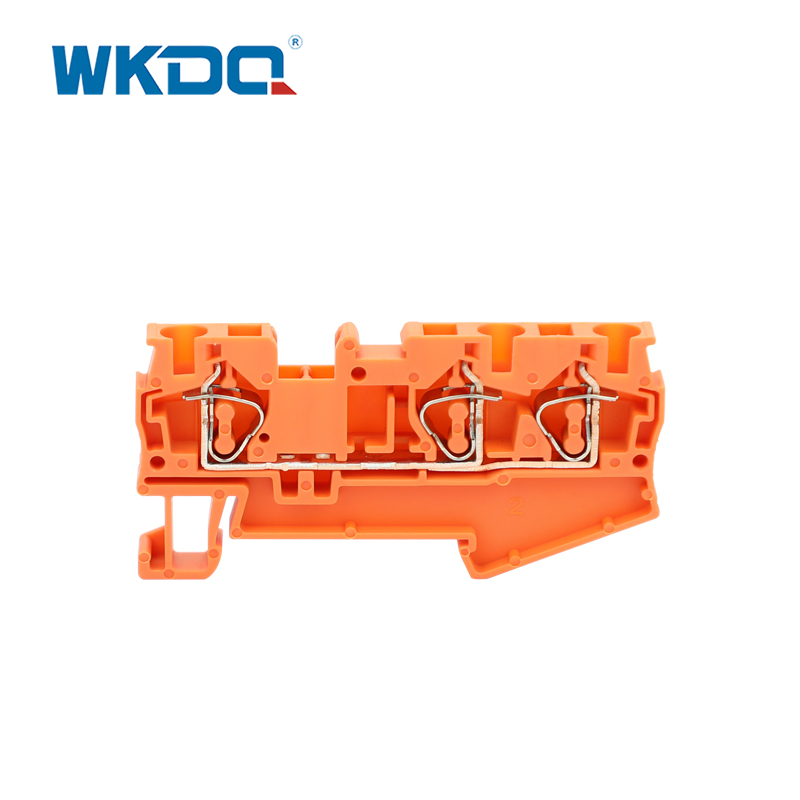

Color	Grey, Blue, other color can be customized
Dimension (mm)	L71.5/H36.5/W6.2
Connection method	Spring cage connection
Material	Anti-flaming Nylon PA66
Rated Voltage/Current	800V/41A
Cross, hard/stranded Cable	0.5-6mm² / 0.5-4 mm²
Conductor	20-10 AWG

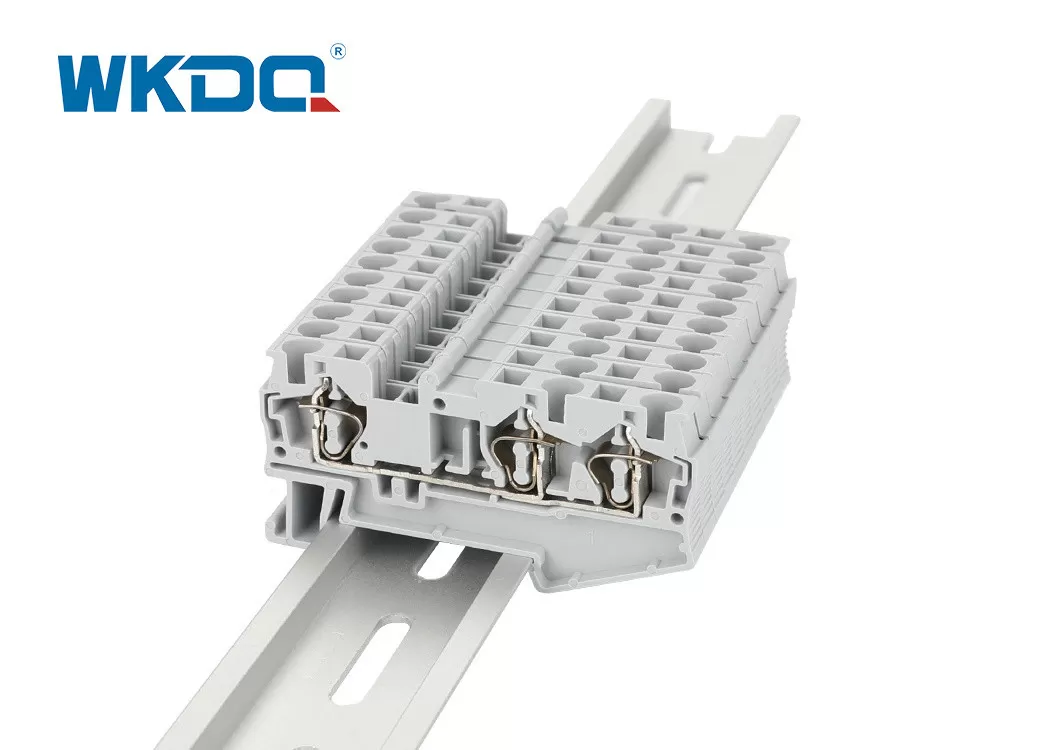

Mounting	NS 35 DIN rail
Standard	IEC 60947-7-1
Brand	WonkeDQ, LOGO can be customized
Packing Detail	11.6g/pc, 55PCS/BOX, 2200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
