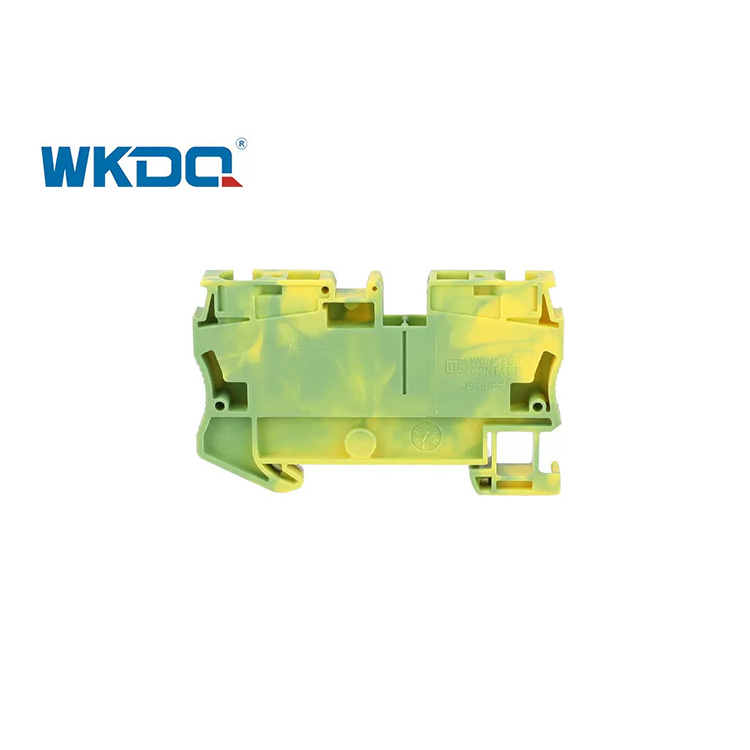

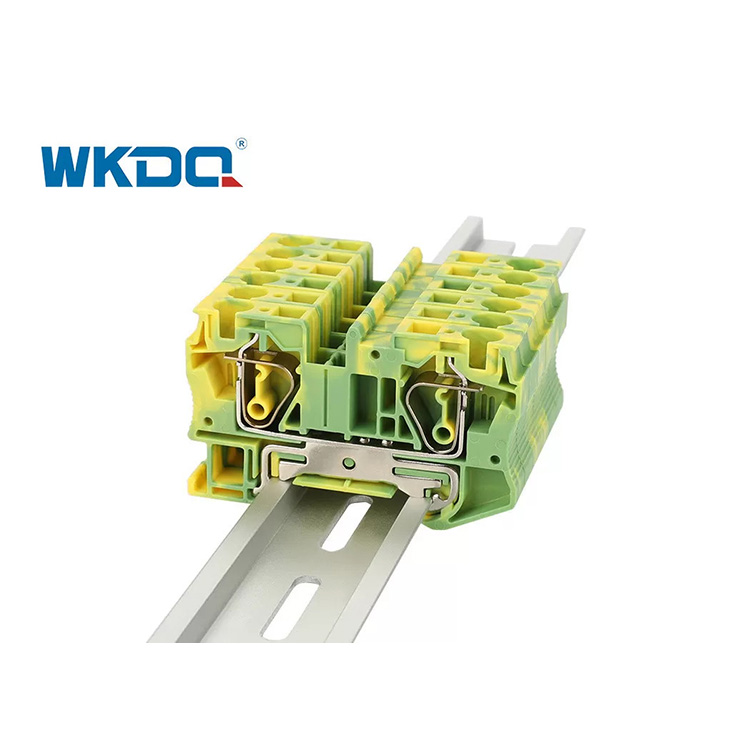

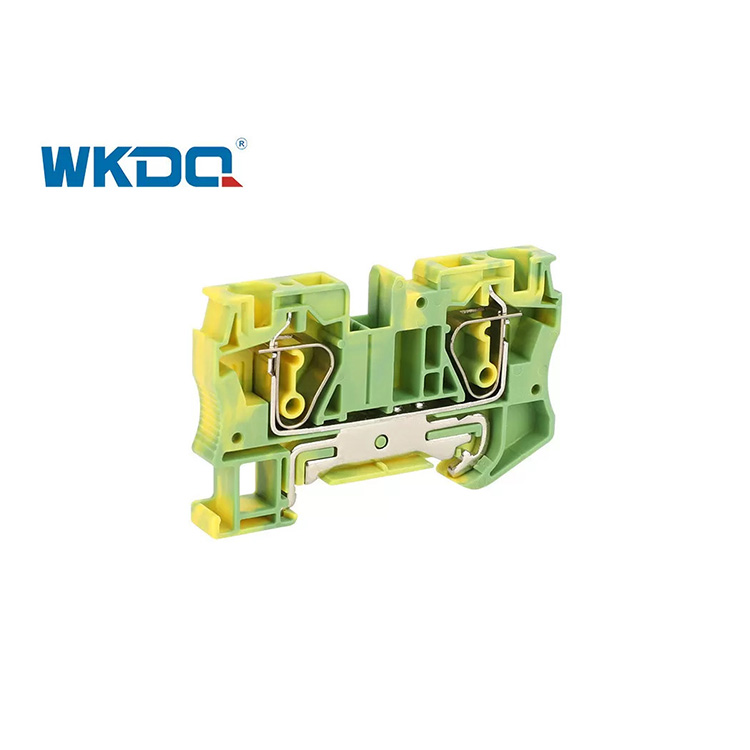

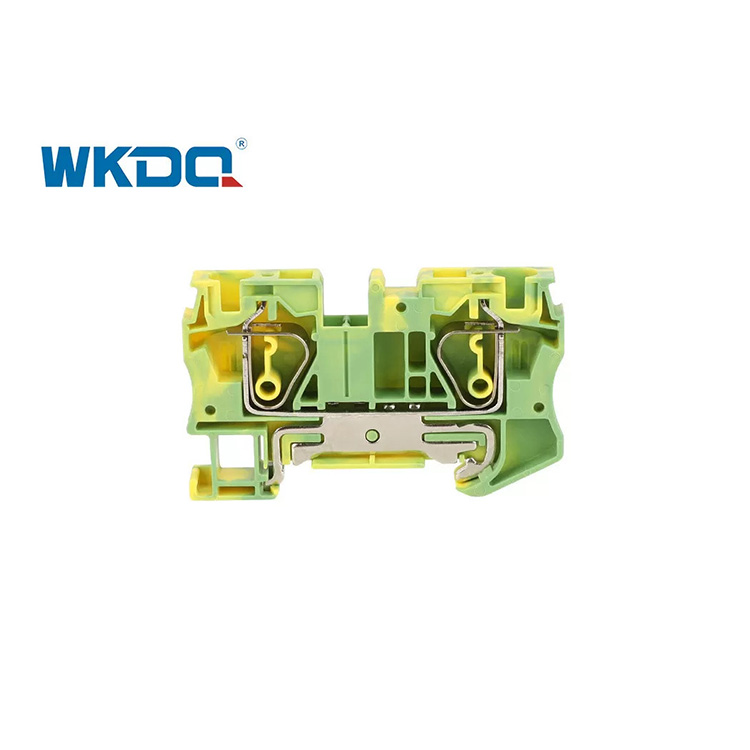

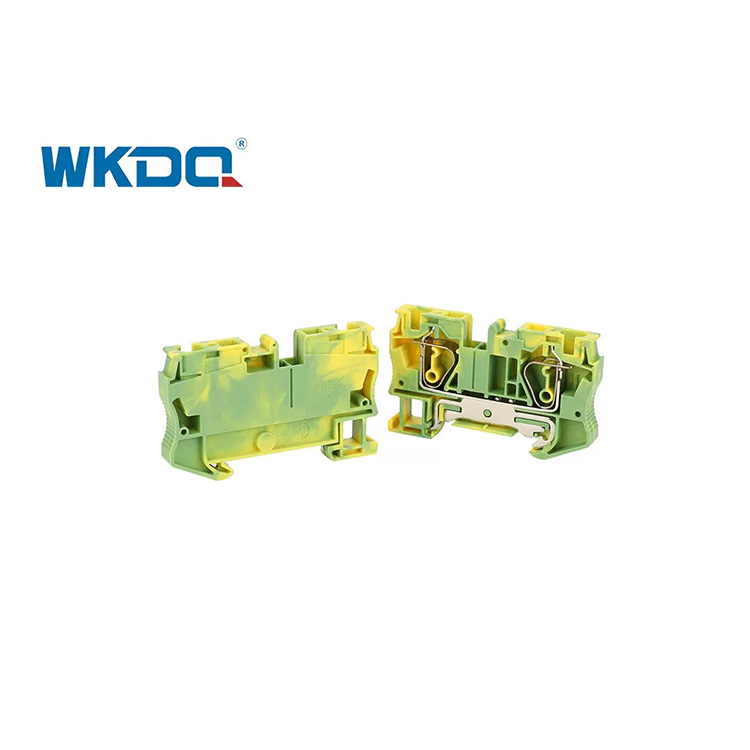

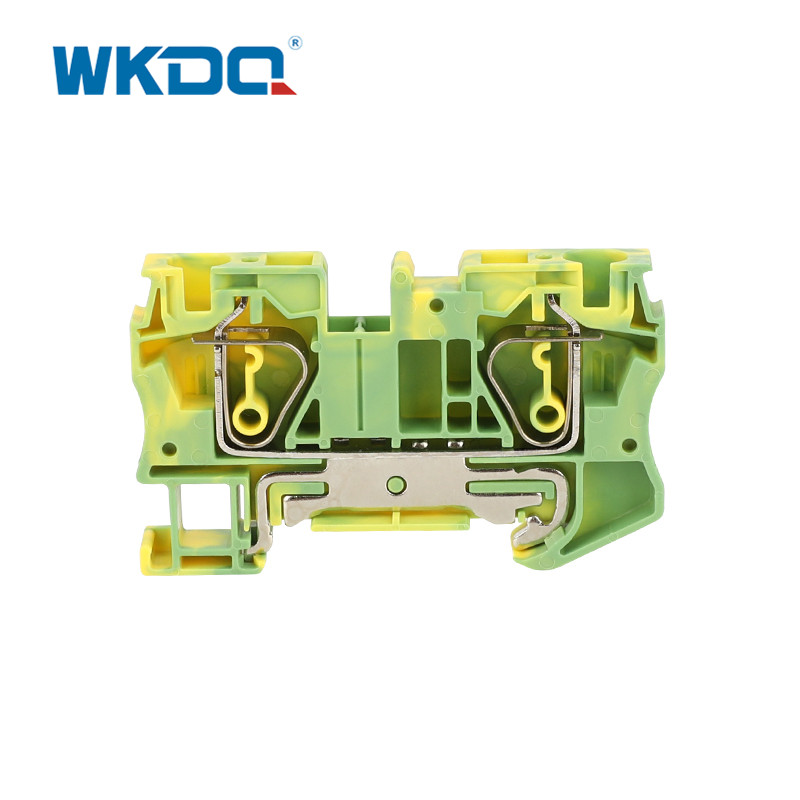

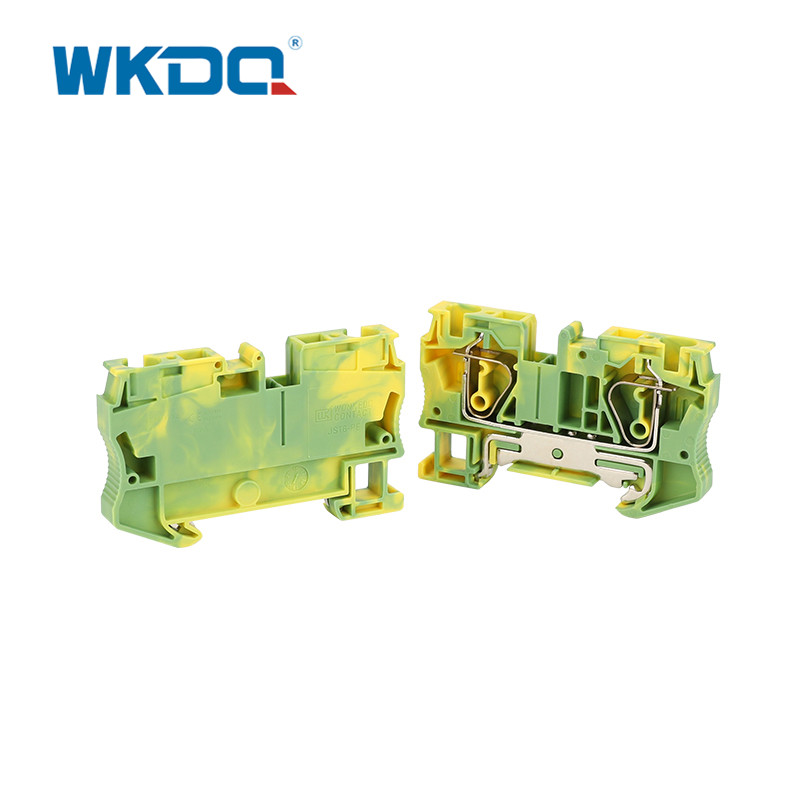

JST 6 PE Universal Din Rail Power Distribution Block , Spring Loaded Wire Connector PE Ground

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 6-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 6-PE

Send Inquiry

Product Description

The WKDQ spring terminal block is made of flame-retardant PA66+ brass material, with a stainless steel spring shockproof design and a DIN rail quick-installation structure to save space. Low-impedance contact points (<0.05Ω) ensure stable power supply. Anti-corrosion metal parts are suitable for humid/vibrating environments. Modular accessories (jumpers/end covers) support flexible expansion and comply with industrial-grade safety standards.

Technical Parameters

Part No.	JST 6-PE
Color	Yellow/Green,
Length/Height/Wide (mm)	70/43/8.2
Connection method	Spring-cage connection
Material	Anti-flaming Nylon PA66
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.5-10mm² / 0.5-6 mm²
Conductor Size	20-8 AWG
Mounting Type	NS 35mm
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	19.27g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
