Springs Clamp Terminal Block

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 4
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 4

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

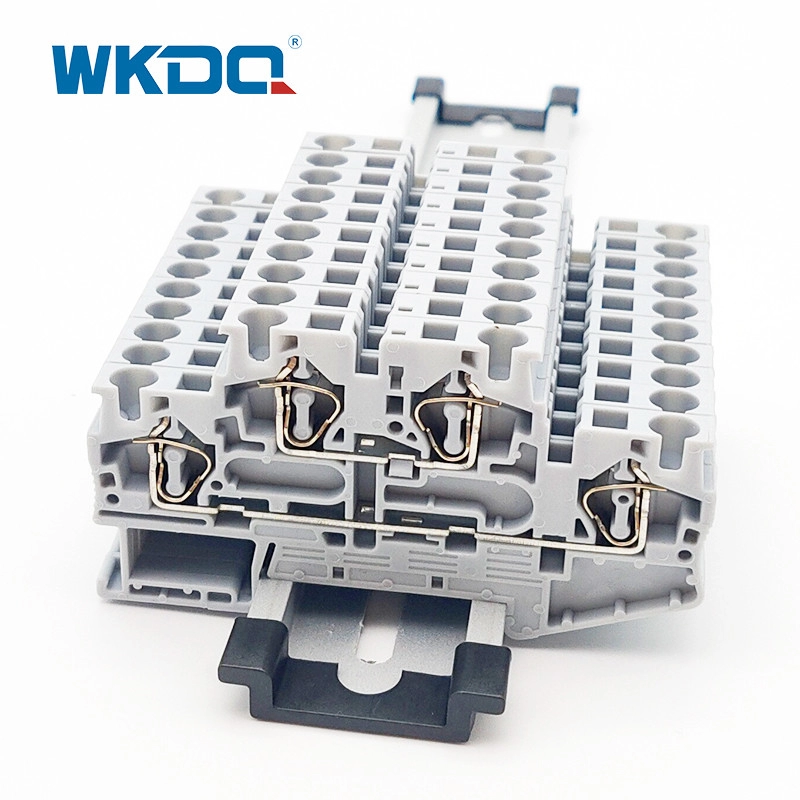

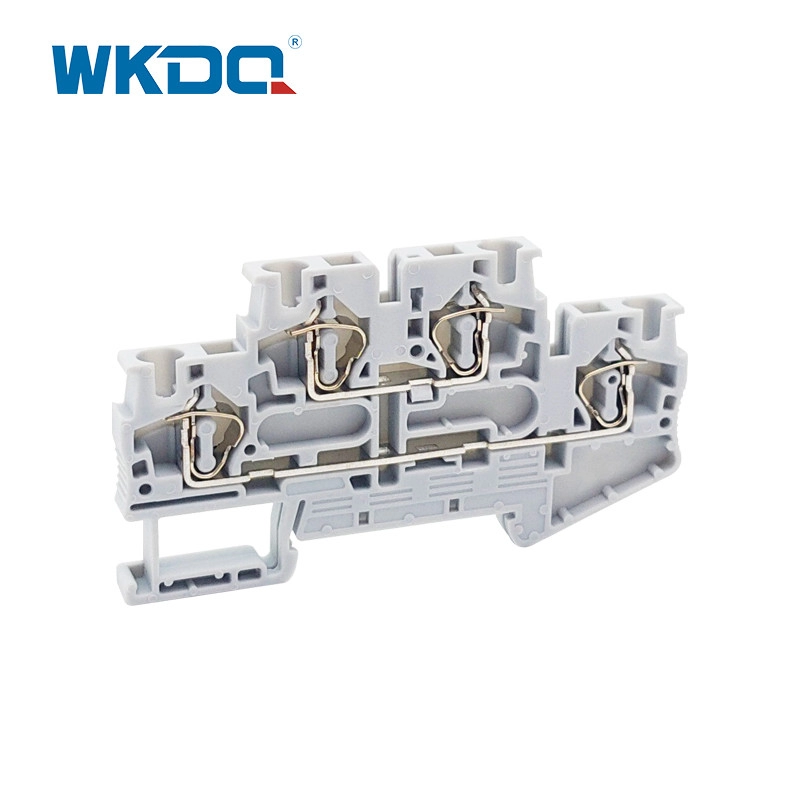

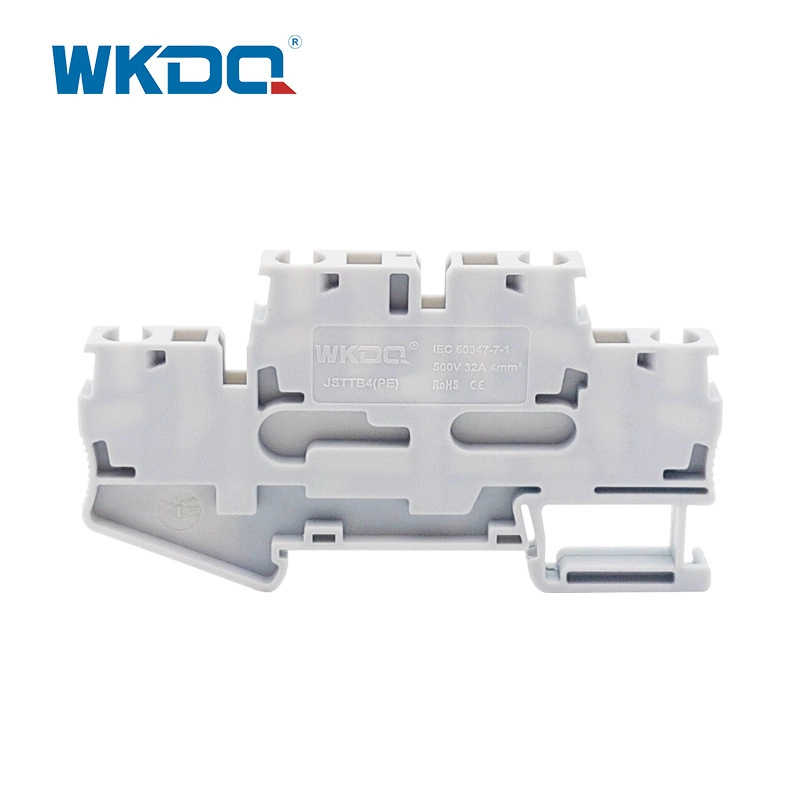

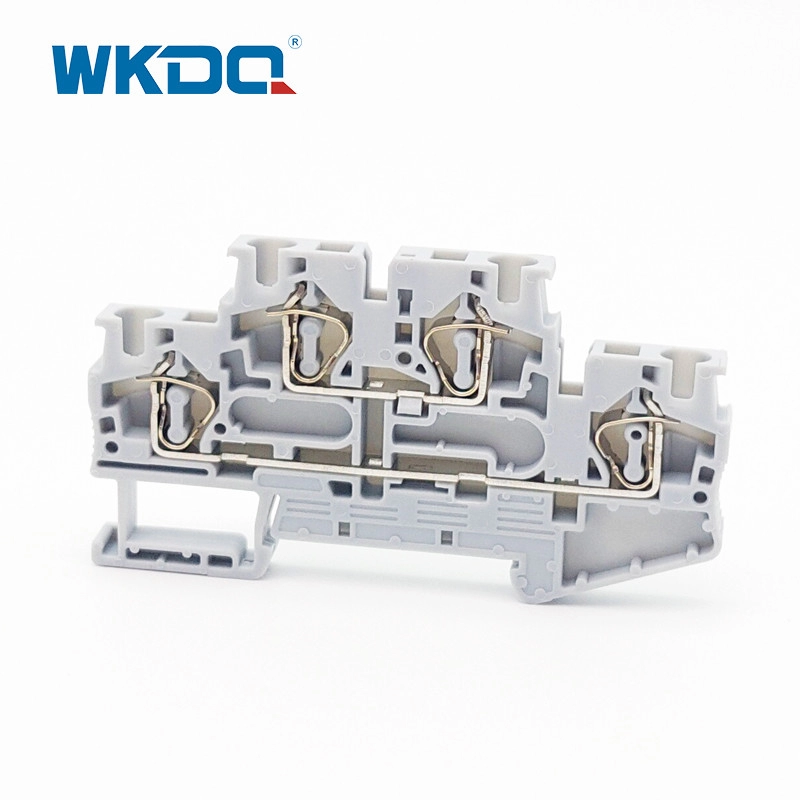

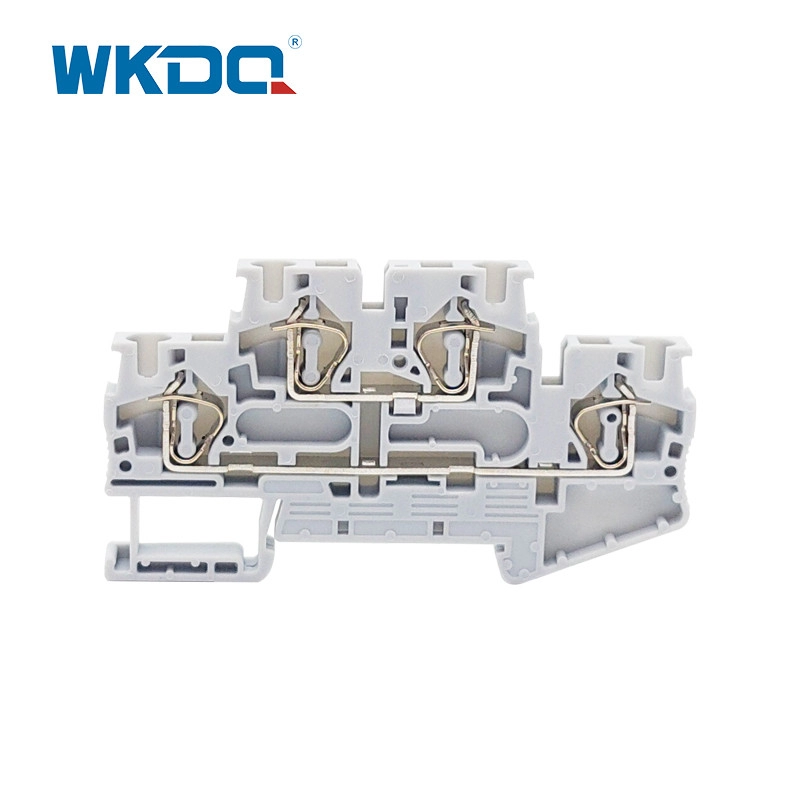

The dual-function shaft terminal block integrates a vertical potential bridge to achieve flexible power distribution at multiple terminals and support the connection of large cross-section wires. Made of flame-retardant PA66+ brass material, the corrosion-resistant contact points ensure long-term stability. Compatible with 35mm DIN rails, it comes standard with marking slots and bridging configurations, simplifying potential distribution and maintenance. It is specifically designed to provide high-density, anti-loosening solutions for electrical control systems and supports OEM customization.

Model Number	JSTTB 4
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	86.5/46/6.2
Connection method	Spring type connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13g/pc,
Certification	CE/RoHS/CQC/ISO 9001
