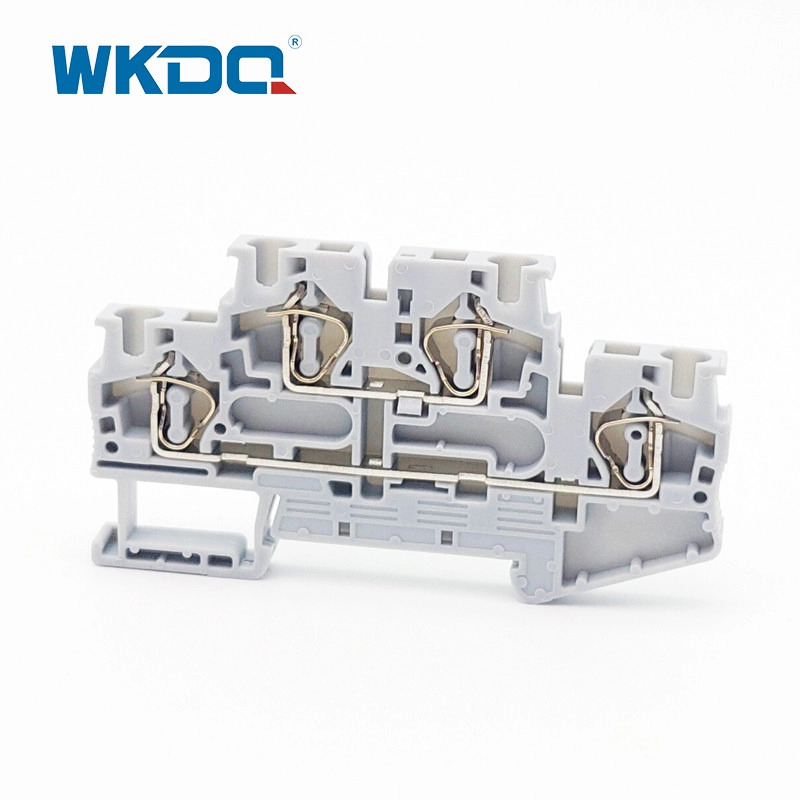

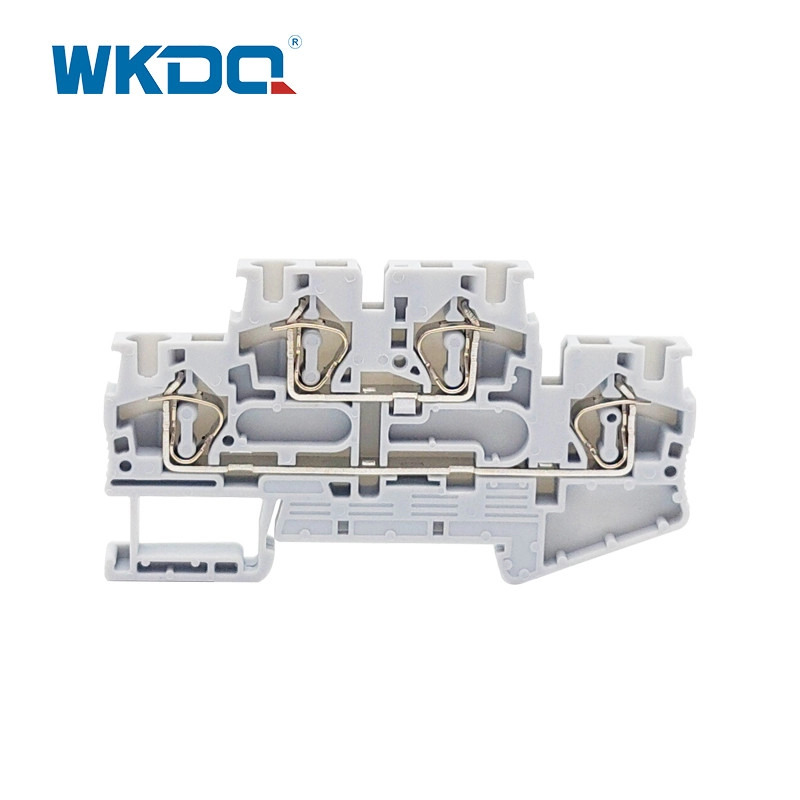

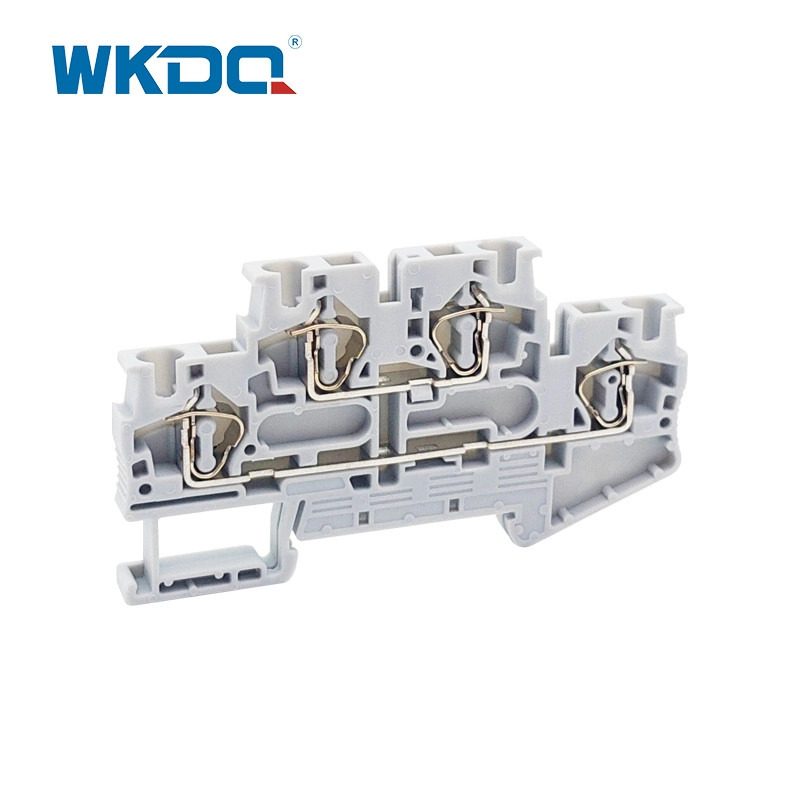

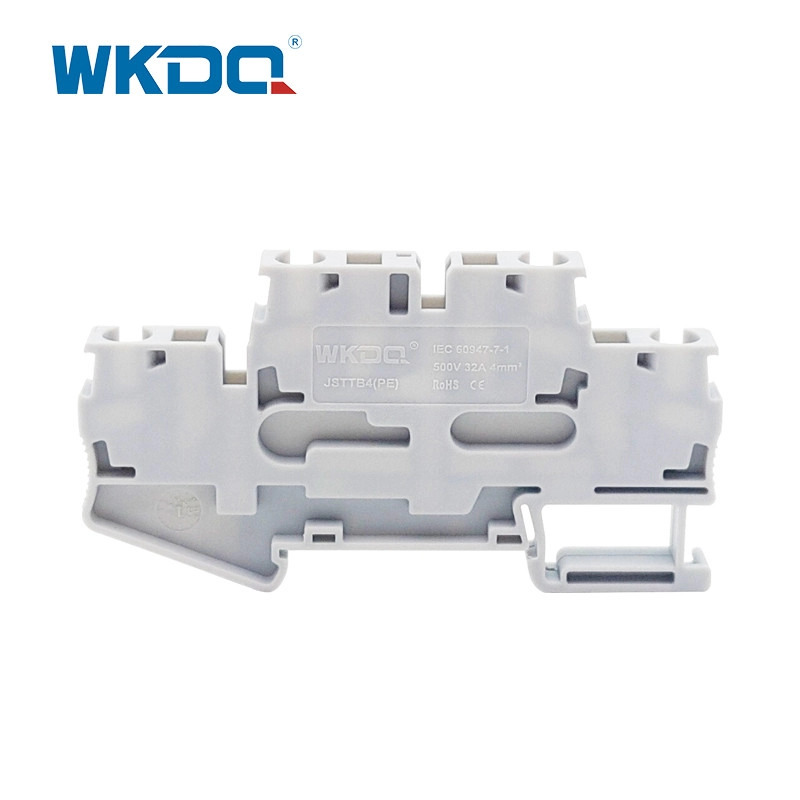

JSTTB 4 Spring Terminal Block Connector Grey Color High Grade Two Conductors

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 4
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 4

Send Inquiry

Product Description

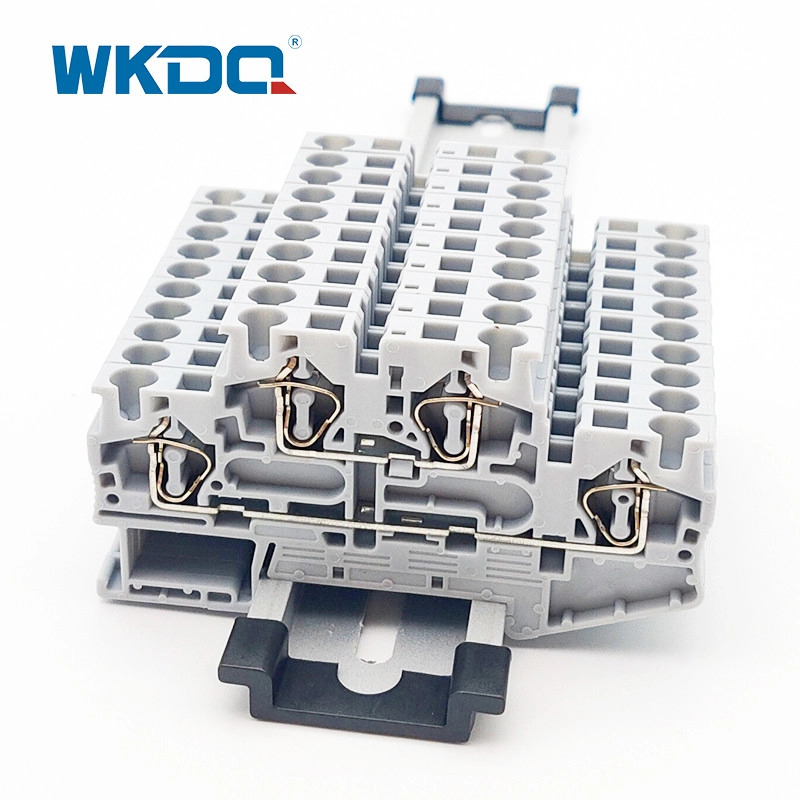

JSTTB 4 supports rapid power distribution among multiple layers of terminals and is compatible with 35mm DIN rails. The flame-retardant PA66+ brass material ensures corrosion resistance and low-resistance conductivity. The space-saving design is compatible with large cross-section wires. It comes standard with an identification slot and modular bridging, and supports OEM customization. It is suitable for high-density electrical systems such as machine tools and control cabinets.

Technical Parameters

Model Number	JSTTB 4
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	86.5/46/6.2
Connection method	Spring type connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13g/pc,
Certification	CE/RoHS/CQC/ISO 9001
