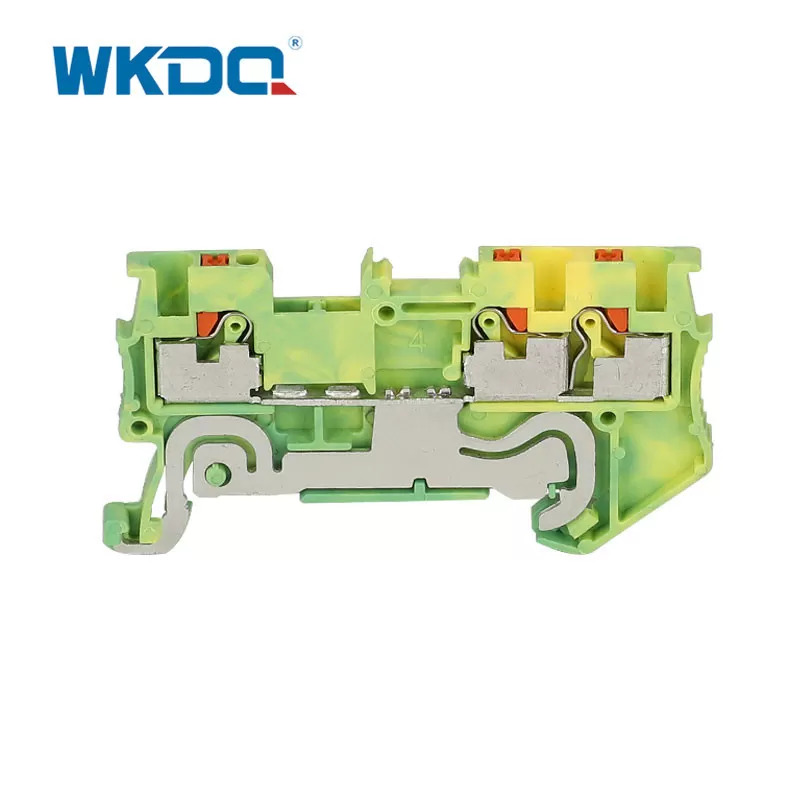

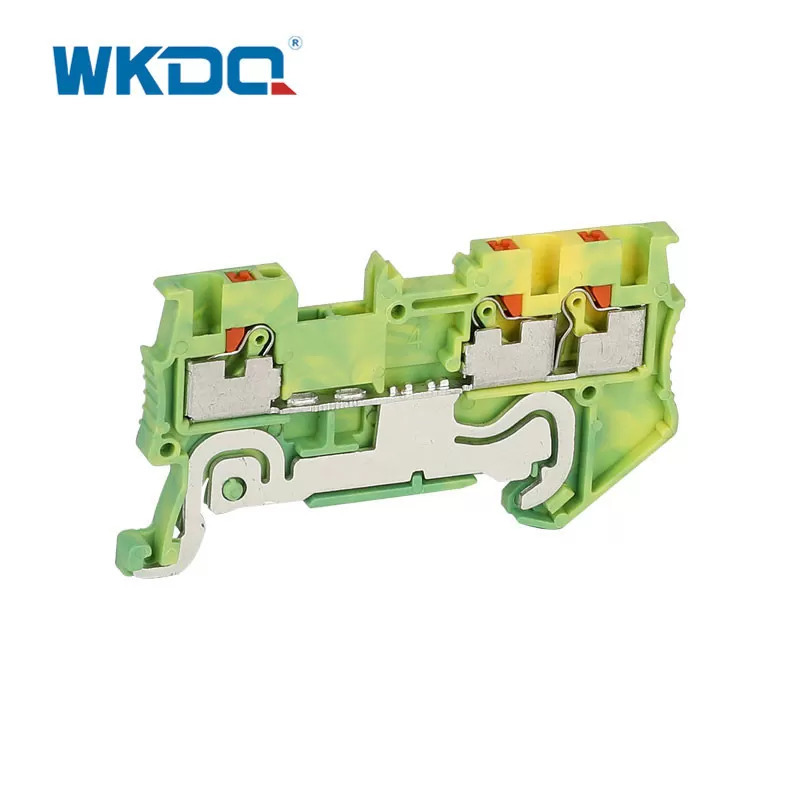

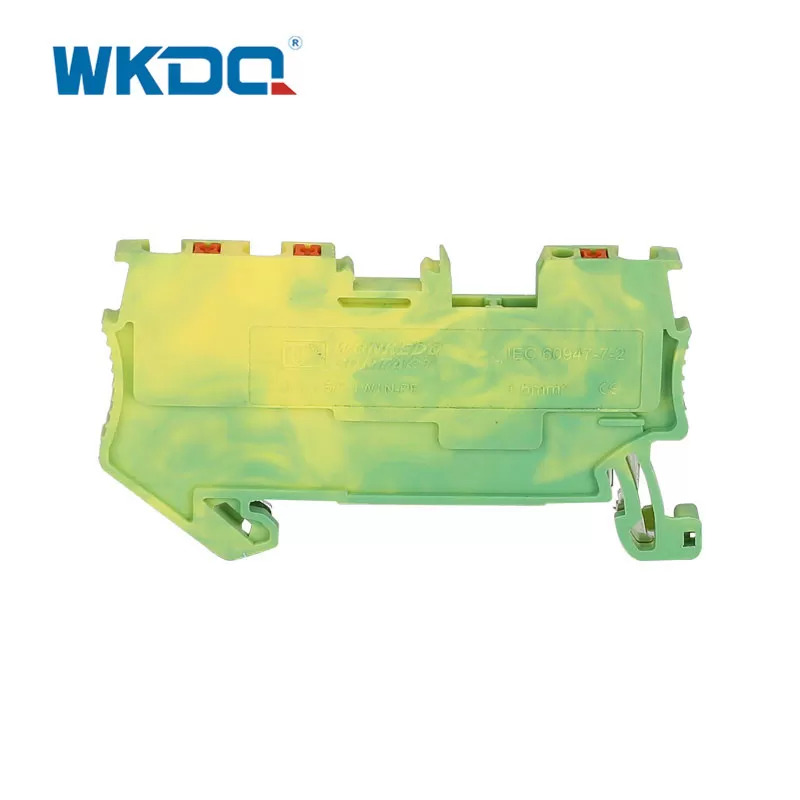

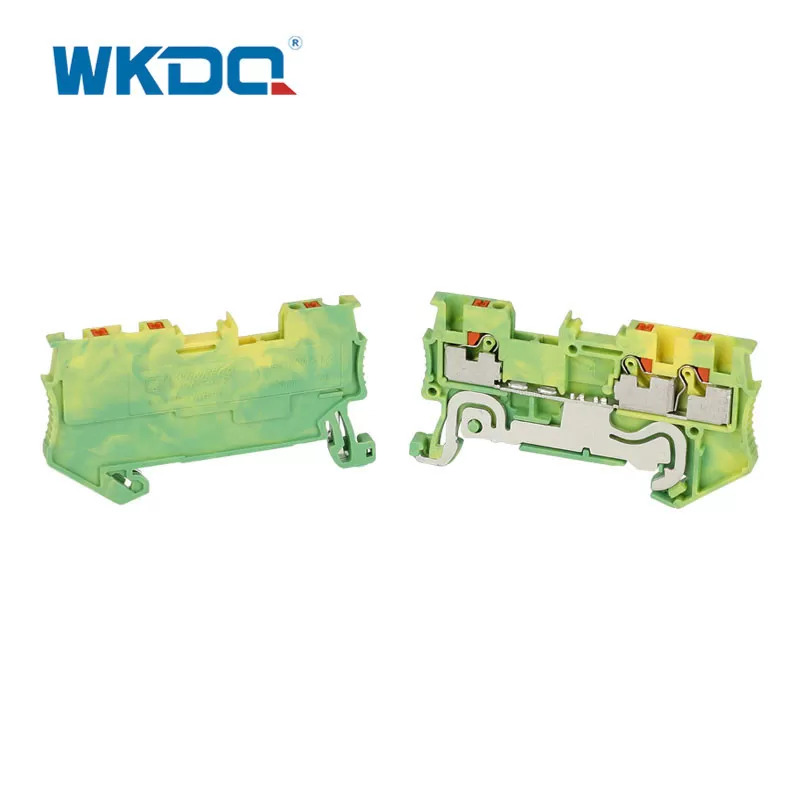

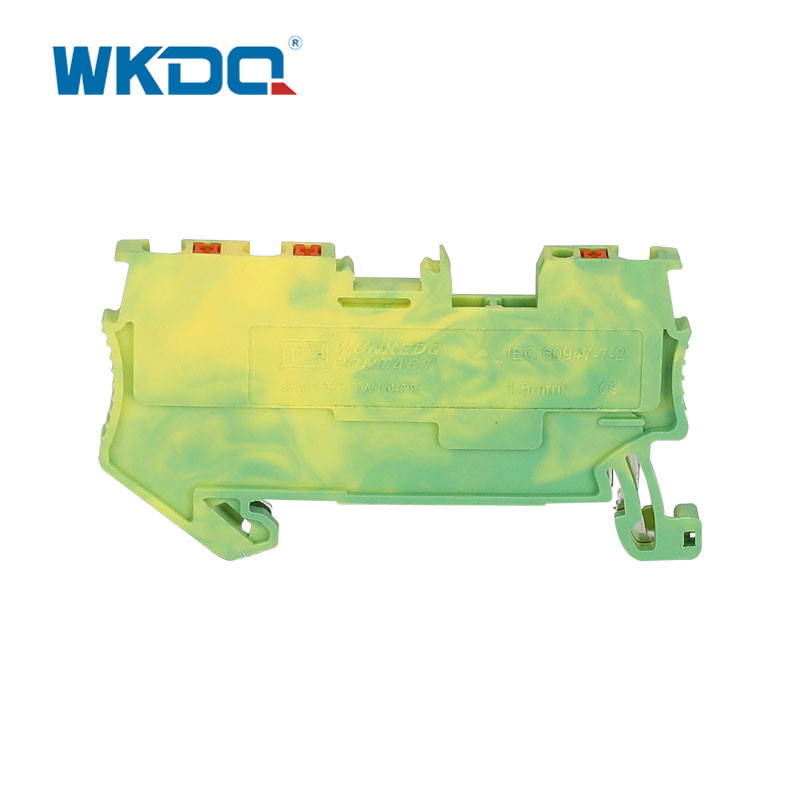

Multi - Conductor Small Wire Terminal Block Yellow and Green Electrical Connector Blocks
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5/S-TWIN-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Model:JPT1.5/S-TWIN-PE
Send Inquiry
Product Description
JPT 1.5TWIN PE provide an easy-to-identify, convenient, neatly organized grounding bus that is mounted on the DIN rail.JPT push-in connection terminal blocks have been developed for direct conductor connection. This means that solid conductors or conductors with ferrules can be inserted directly into the terminal block without tools.
Extremely easy direct and tool-free
The special contact spring allows easy insertion and ensures a high level of contact quality.

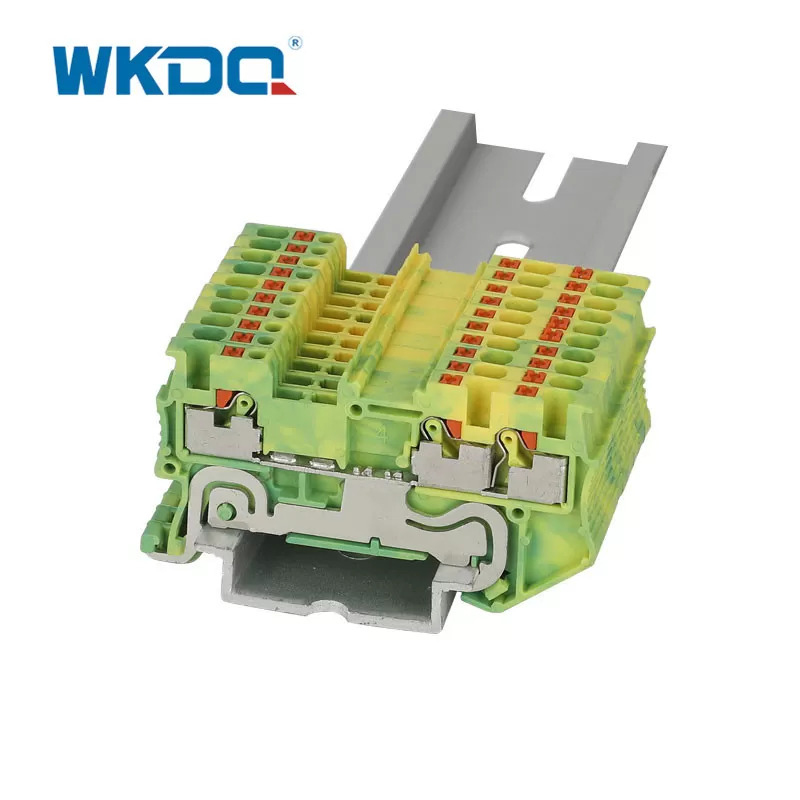

Can mount these terminal blocks on a rail as a one unit. It is used extensively.
V0 Flame Resistant .
Copper Conductor
TECHNICAL PARAMETERS
| Part No. | JPT 1.5/S-TWIN-PE |
| Color | Yellow and Green |
| Length/Height/Wide (mm) | 54/30.5/3.5 |
| Connection method | Push-in connection |
| Material | Flame resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/17.5A |
| Cross section, solid/soft Cable | 0.14-1.5mm²/0.14-1.5mm² |
| Conductor Size | 26-16 AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 5.09g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
