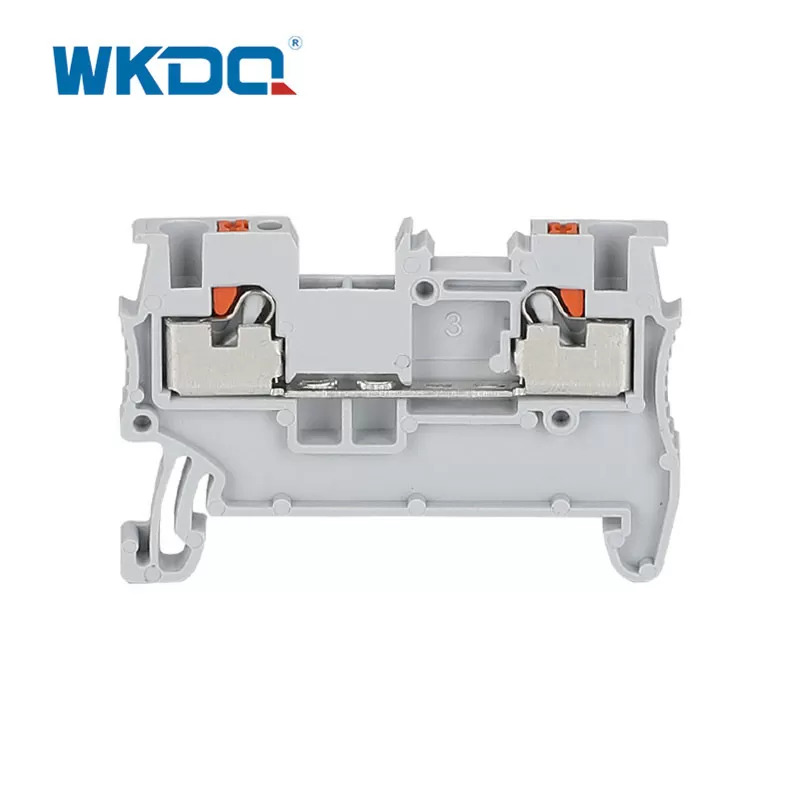

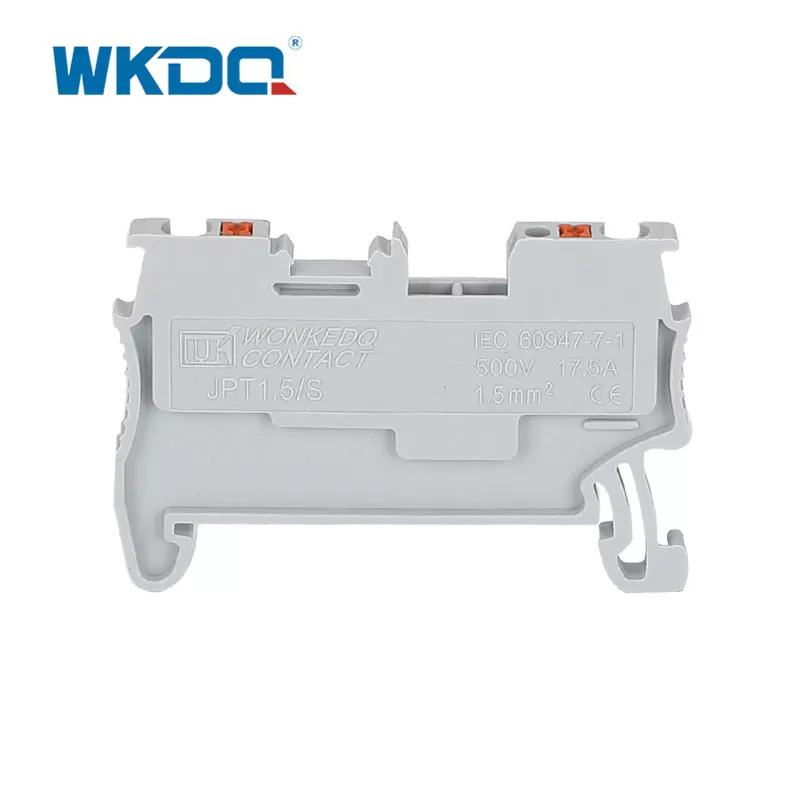

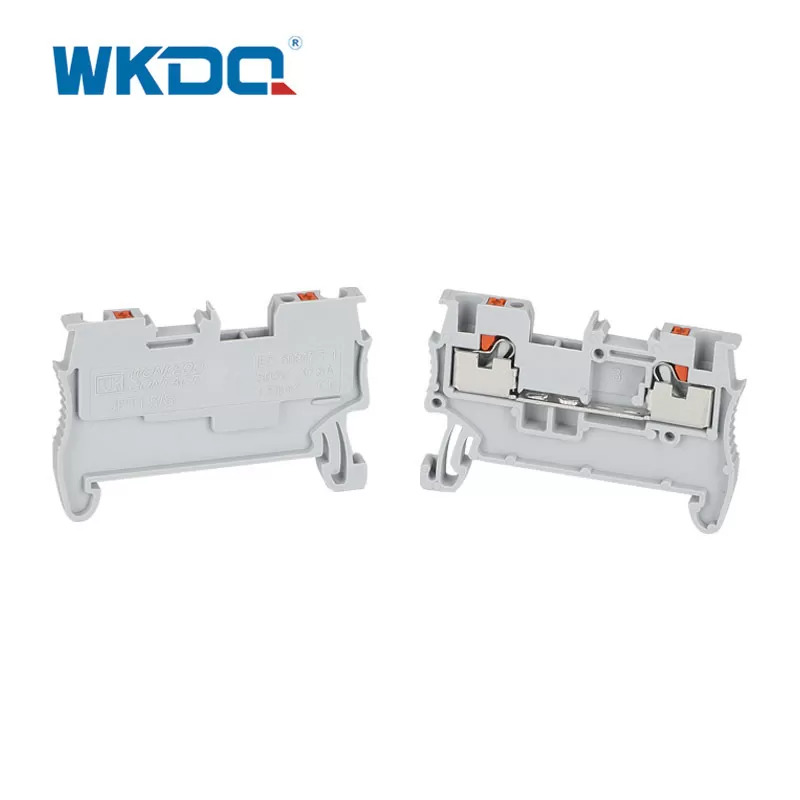

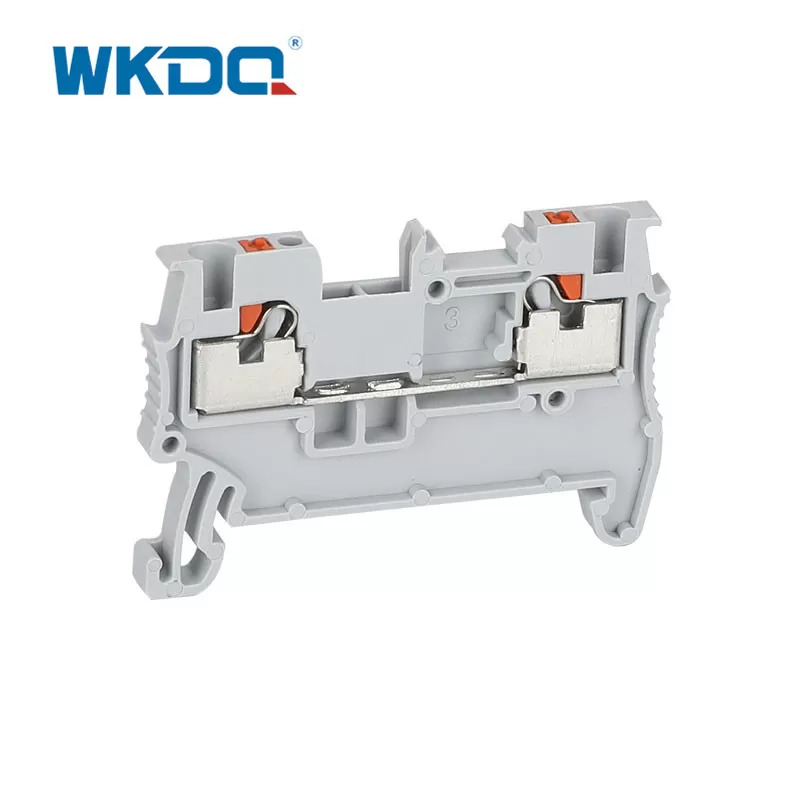

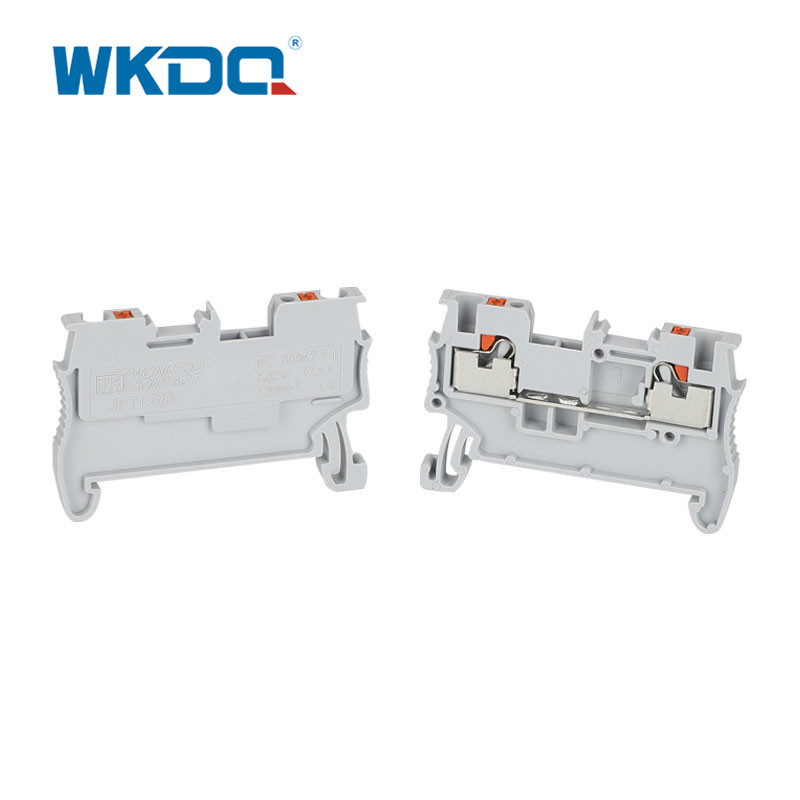

Nylon PA66 Din Rail NS35 Terminal Block
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5
Packaging Details: PCS
Delivery Time: 2-7days
Send Inquiry
Product Description
The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.
l Made from anti Inflaming Nylon PA 66, Brass Bar
l The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
l The compact design and front connection enable wiring in a confined space.
l In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.

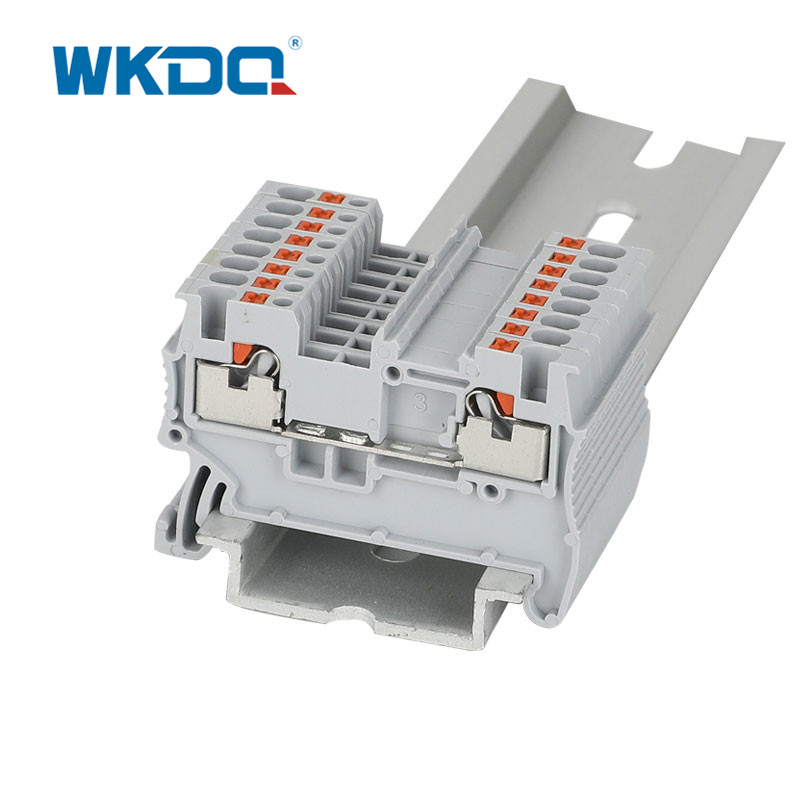

l With universal foot which can be installed on Din Rail 35mm.
l Electric potential distribution can use plug-in bridges in the terminal center.
TECHNICAL PARAMETERS
| Model Number | JPT 1.5/S |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 45/32/3.5 |
| Connection method | Push-in connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 500V/17.5A |
| Cross section, solid/soft Cable | 0.14-1.5 mm² / 0.14-1.5 mm² |
| Conductor Size | 26-16 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 3.29g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
