Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5/S-TWIN
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Introducing our green-yellow feed-through terminal block, the JPT 2.5-TWIN-PE, and the One In Two Out Terminal Blocks, designed to simplify your wiring needs in control cabinets and distributors.
The JPT 2.5-TWIN-PE terminal block is designed with a cross-section range of 0.14 mm² to 4 mm² (AWG: 26 - 12) and a compact width of 5.2 mm. It features three connections on one level, providing versatility and flexibility for various wiring applications.
The compact design of the ground terminal block, combined with the direct push-in connection technology, allows for easy and tool-free wiring in a limited amount of space. Whether you're working in control cabinets or distributors, the JPT 2.5-TWIN-PE terminal block is a reliable solution.
Conductors with ferrules or solid conductors can be effortlessly inserted into the conductor channel of the terminal block. The contact spring automatically opens to accommodate the conductor, providing the required pressure force against the current bar. This ensures secure and reliable electrical connections.

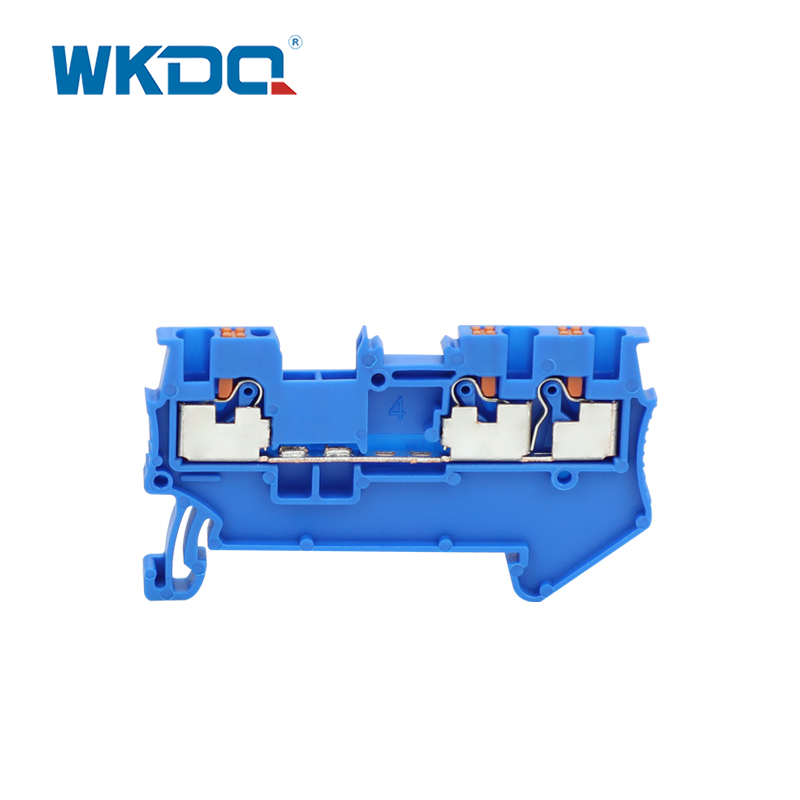

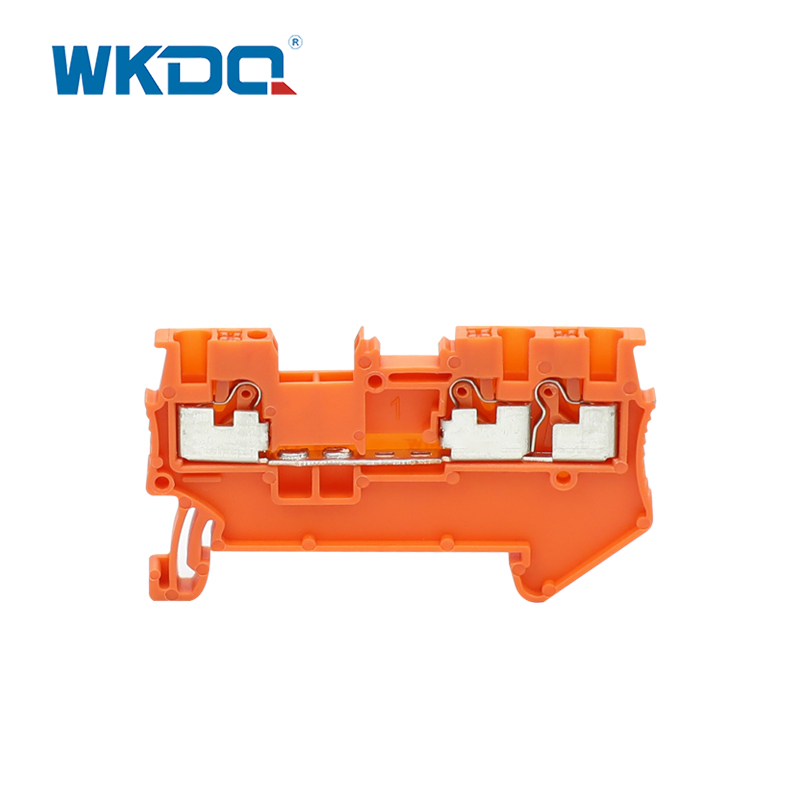

In addition, our One In Two Out Terminal Blocks provide an efficient solution for managing multiple connections in a compact space. These terminal blocks allow you to split one incoming connection into two outgoing connections, optimizing your wiring configuration.
The JPT 2.5-TWIN-PE terminal block, along with the One In Two Out Terminal Blocks, offers universal usability, making them suitable for a wide range of applications in control cabinets and distributors. They provide a convenient and efficient solution for wiring needs.
Upgrade your control cabinets and distributors with our green-yellow feed-through terminal block, the JPT 2.5-TWIN-PE, and the One In Two Out Terminal Blocks. Benefit from their compact design, easy and tool-free wiring, versatile cross-section range, and efficient management of multiple connections. Trust in their reliable contact spring mechanism for secure electrical connections. Simplify your wiring processes with these reliable terminal blocks.

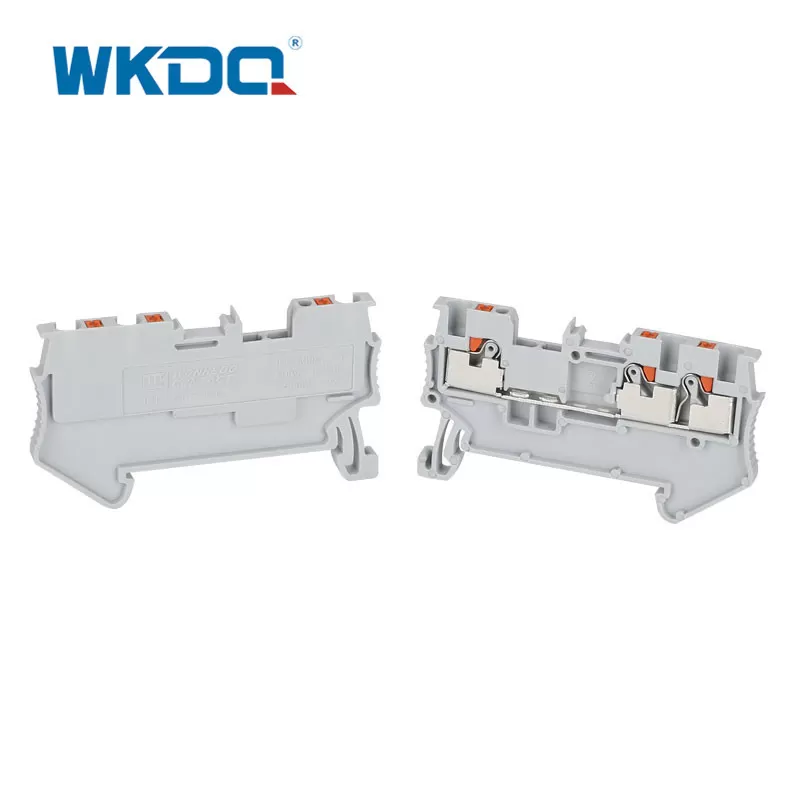

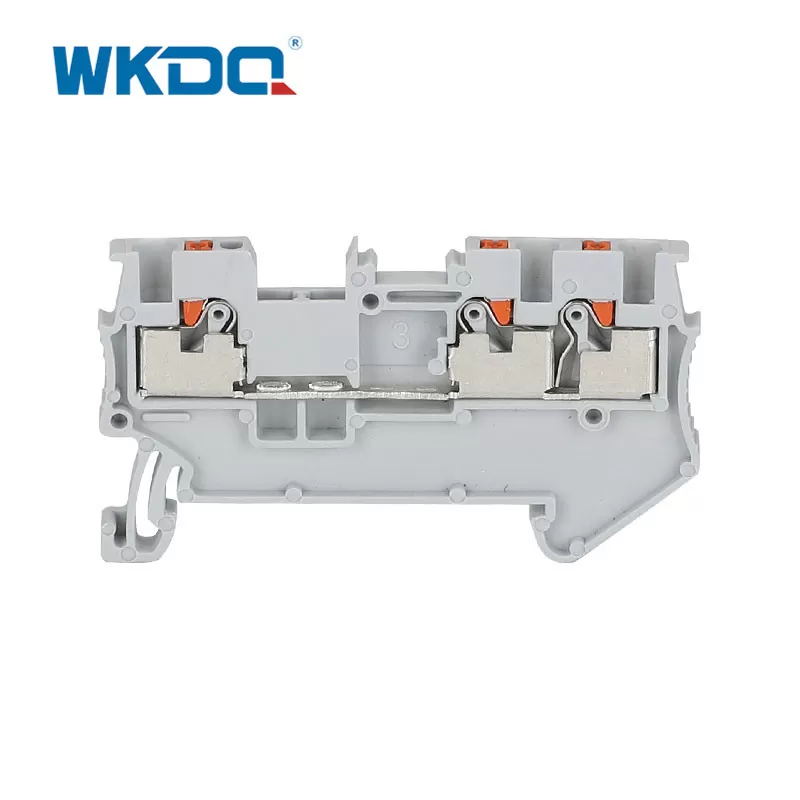

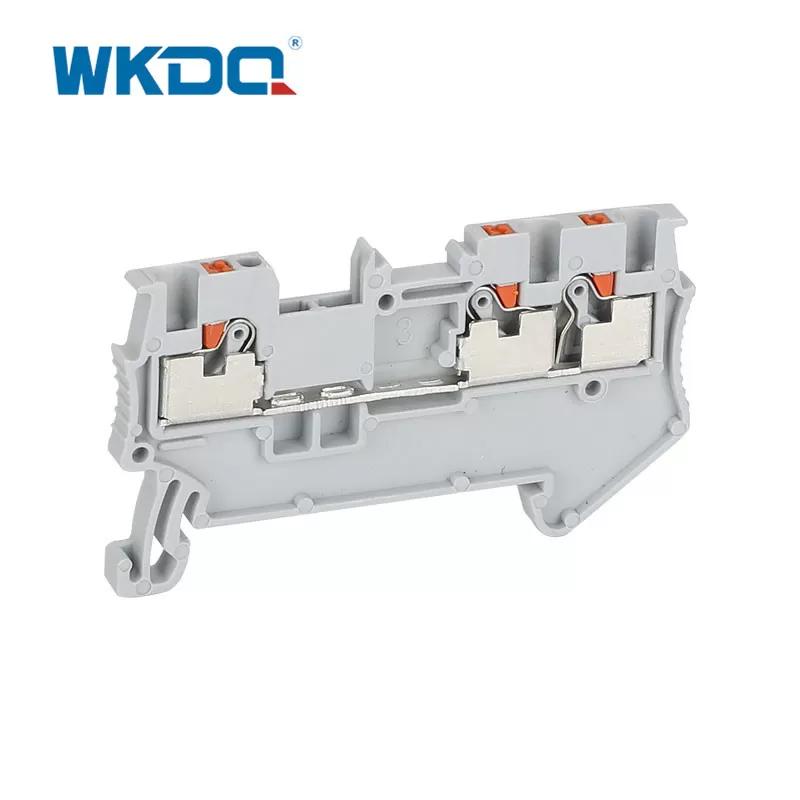

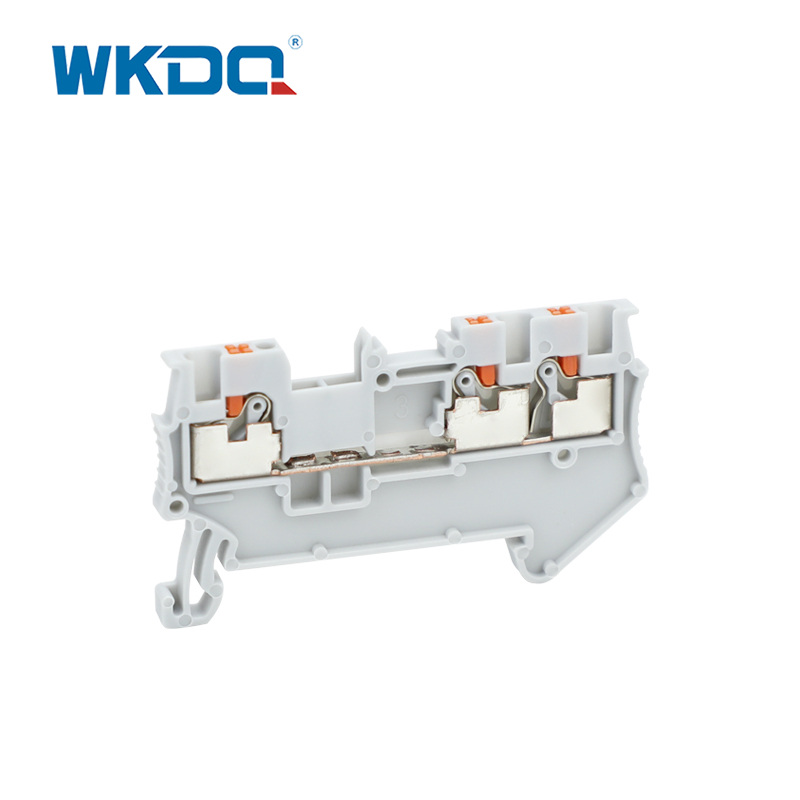

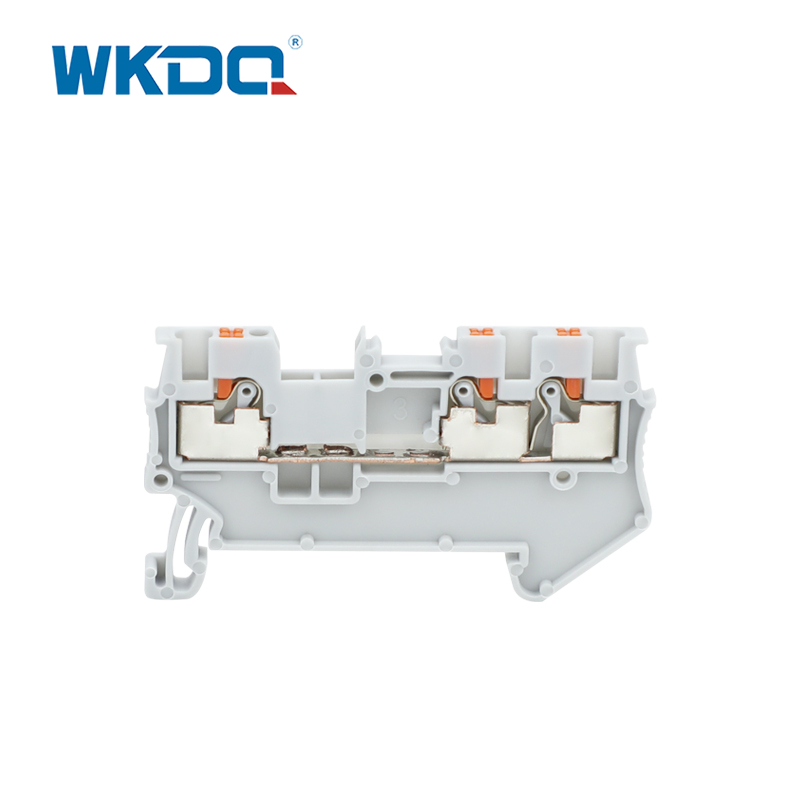

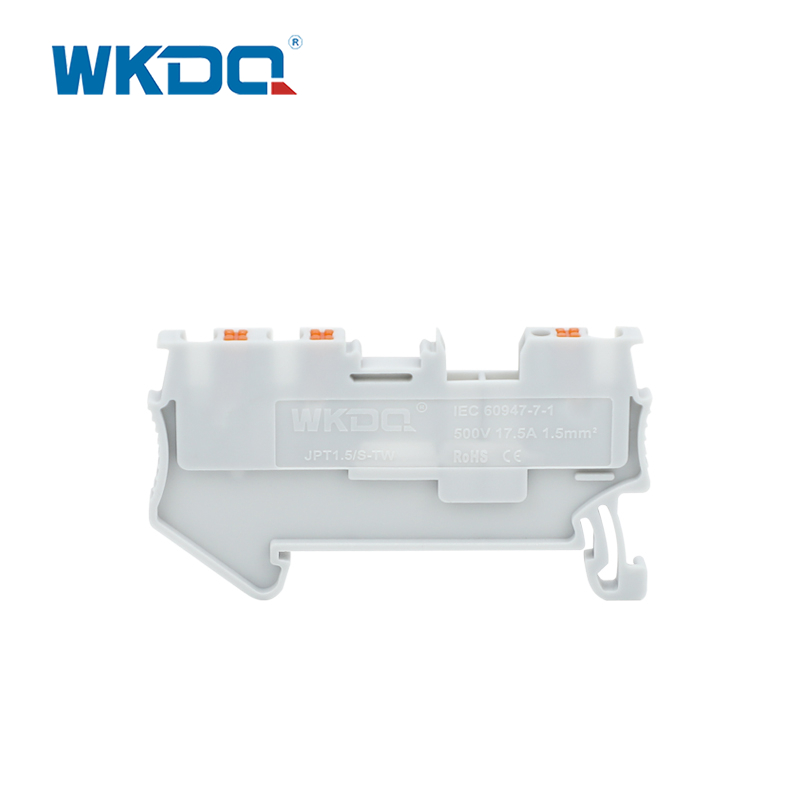

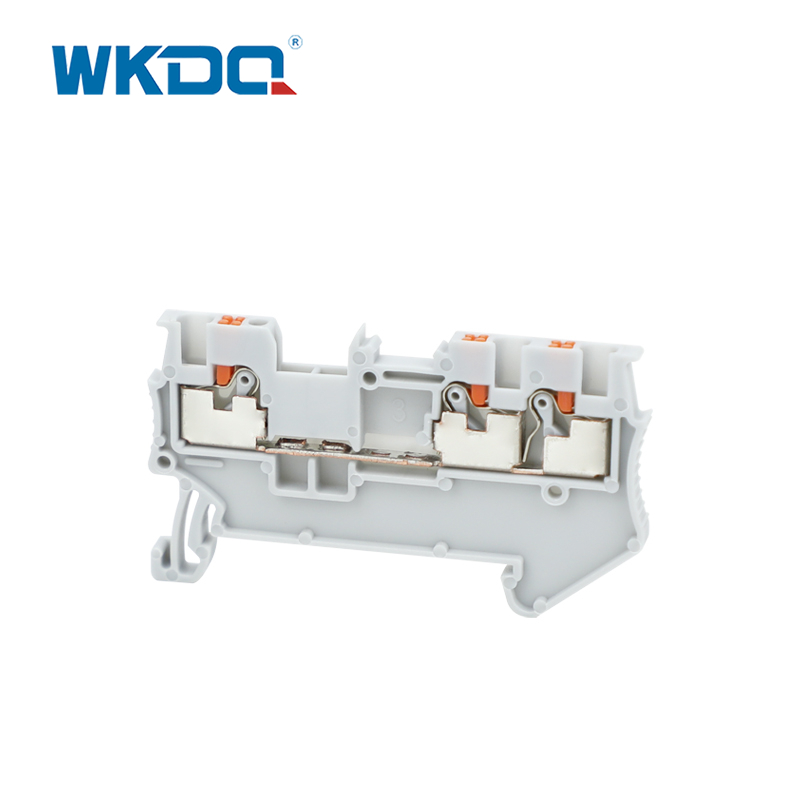

Model No. | JPT 1.5/S-TWIN |
Color | Grey, Blue, other color can be customized |
Length/Height/Wide (mm) | 54/30.5/3.5 |
Connection method | Push-in connection |
Material | Flame resistant Nylon PA66 V0 |
Rated Voltage/Current | 500V/17.5A |
Cross section, solid/soft Cable | 0.14-1.5mm²/0.14-1.5mm² |
Conductor Size | 26-16 AWG |

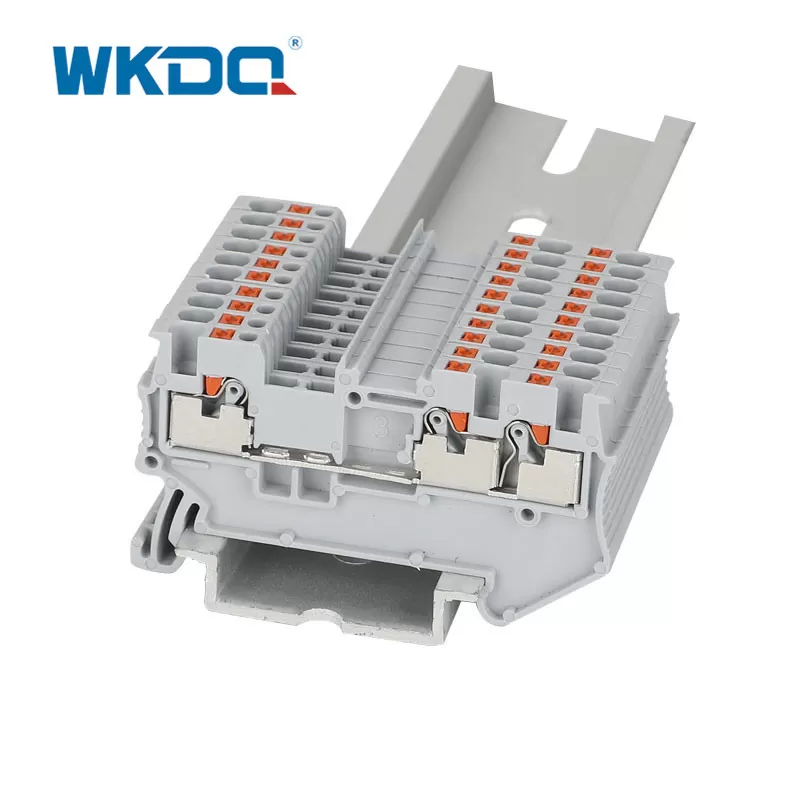

Mounting Type | DIN Rail NS 35 |
Standard | IEC 60947-7-1 |
LOGO | WonkeDQ, LOGO can be customized |
Packing Detail | 5.09g/pc, 100PCS/BOX |
Certification | CE/RoHS/CQC/ISO 9001 |
