Home > Products > Push In Terminal Block > PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato

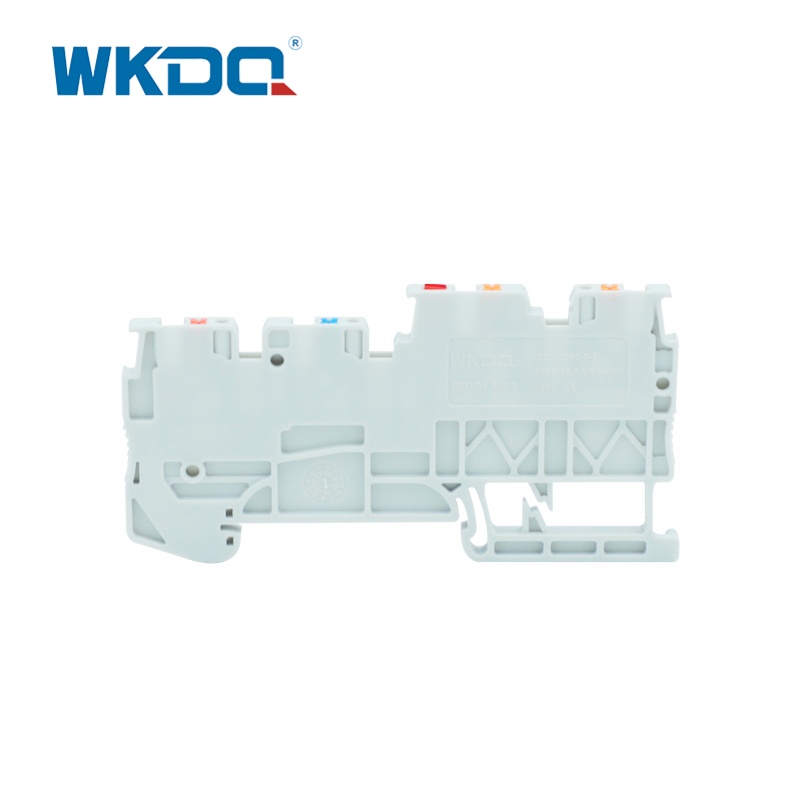

PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato
  • PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor ActuatoPTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato
  • PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor ActuatoPTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato
  • PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor ActuatoPTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato
  • PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor ActuatoPTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato

PTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: PTIO1.5/S/3-LED
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:PTIO1.5/S/3

Send Inquiry

Product Description

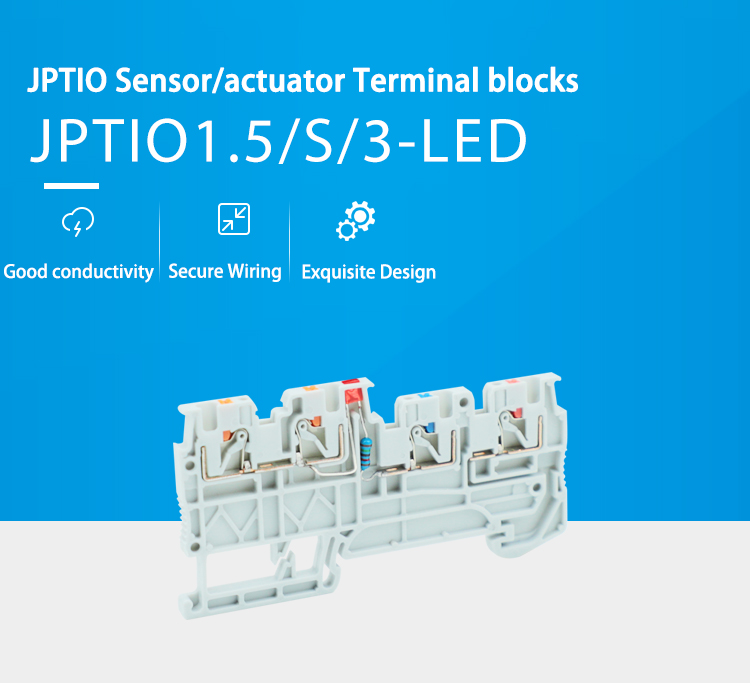

Characteristics of PTIO1.5/S/3-LED:

The PTIO1.5/S/3-LED terminal block is a cutting-edge solution designed to provide secure and efficient electrical connections while offering visual status monitoring through integrated LED indicators. Ideal for industrial control panels, automation systems, and machinery, it ensures reliable performance in demanding environments. Made from high-quality engineering flame-retardant nylon PA66, brass conductors, and stainless steel pressure springs, it guarantees durability and safety.

Advantages of PTIO1.5/S/3-LED:

This terminal block incorporates a plug-in connection system, enabling rapid modular configuration for diverse wiring requirements. Its compact design with front access ensures easy installation in tight spaces, while the universal mounting base allows seamless DIN Rail NS 35 installation. Built-in LED indicators provide real-time status feedback, improving diagnostic and maintenance efficiency. Fixed bridges in the terminal center support electric potential distribution. A comprehensive range of accessories including end covers, stoppers, marker strips, plug-in bridges, and marker carriers optimize functionality and organization.


TECHNICAL PARAMETERS

Model Number PTIO1.5/S/3-LED
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) L76.7/H40.1/W3.5mm
Connection method Plug in connection
Material Anti inflaming Nylon PA66
Rated Voltage/Current 250V/13.5A
Cross section, solid/soft Cable 0.14-1.5mm²/0.14-1.5mm²
Conductor Size 26-16AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, OEM serivce is supporting
Packing Detail 5.79g/pc, 100PCS/BOX
Certification CE/RoHS/CQC/ISO 9001


Hot Tags: JPTIO1.5/S/3-LED Plug In Connection Terminal Block Sensor Actuato, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
