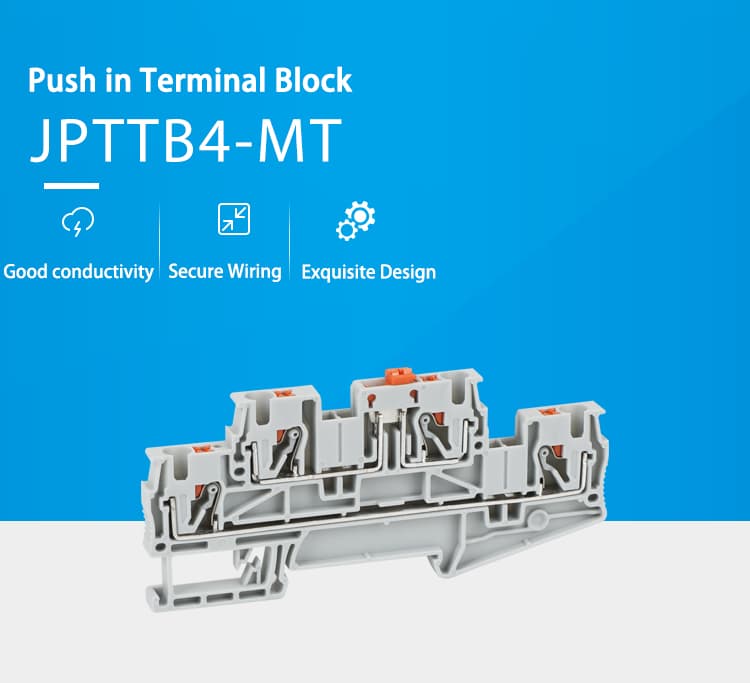

Push-in Terminal Block

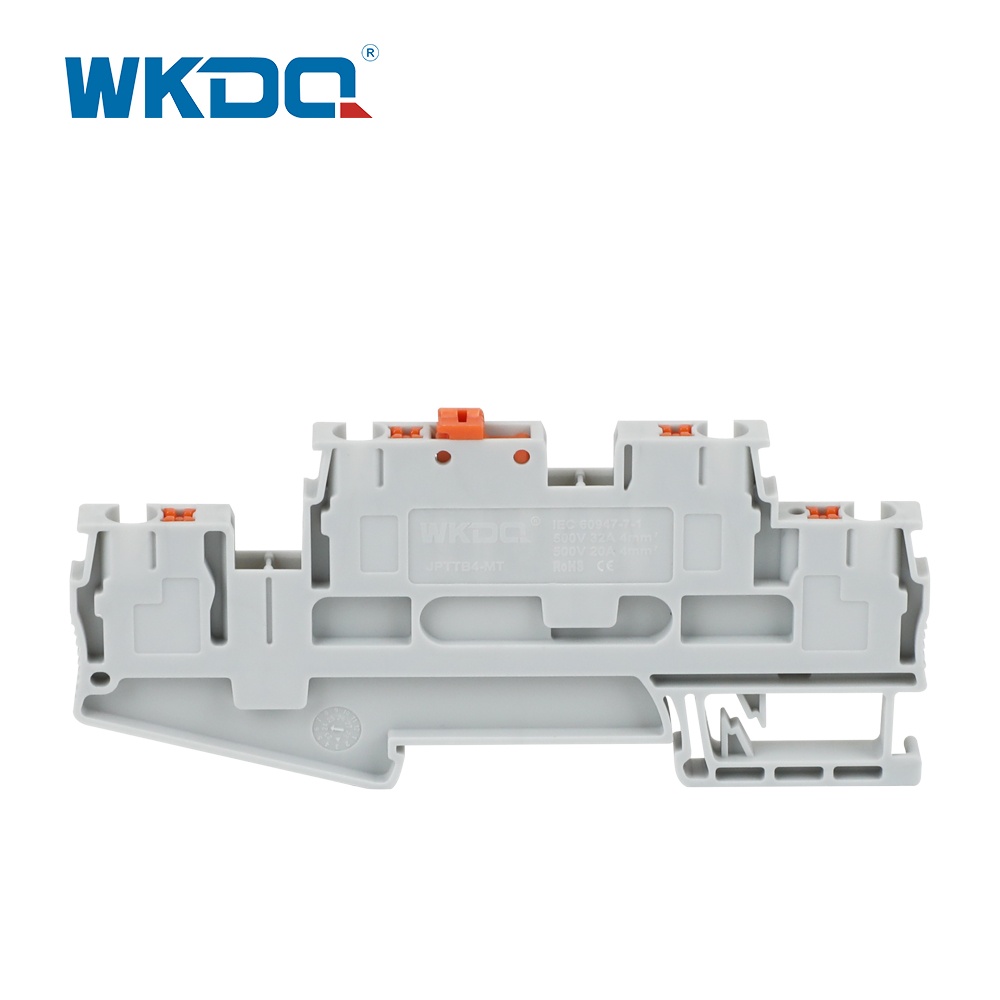

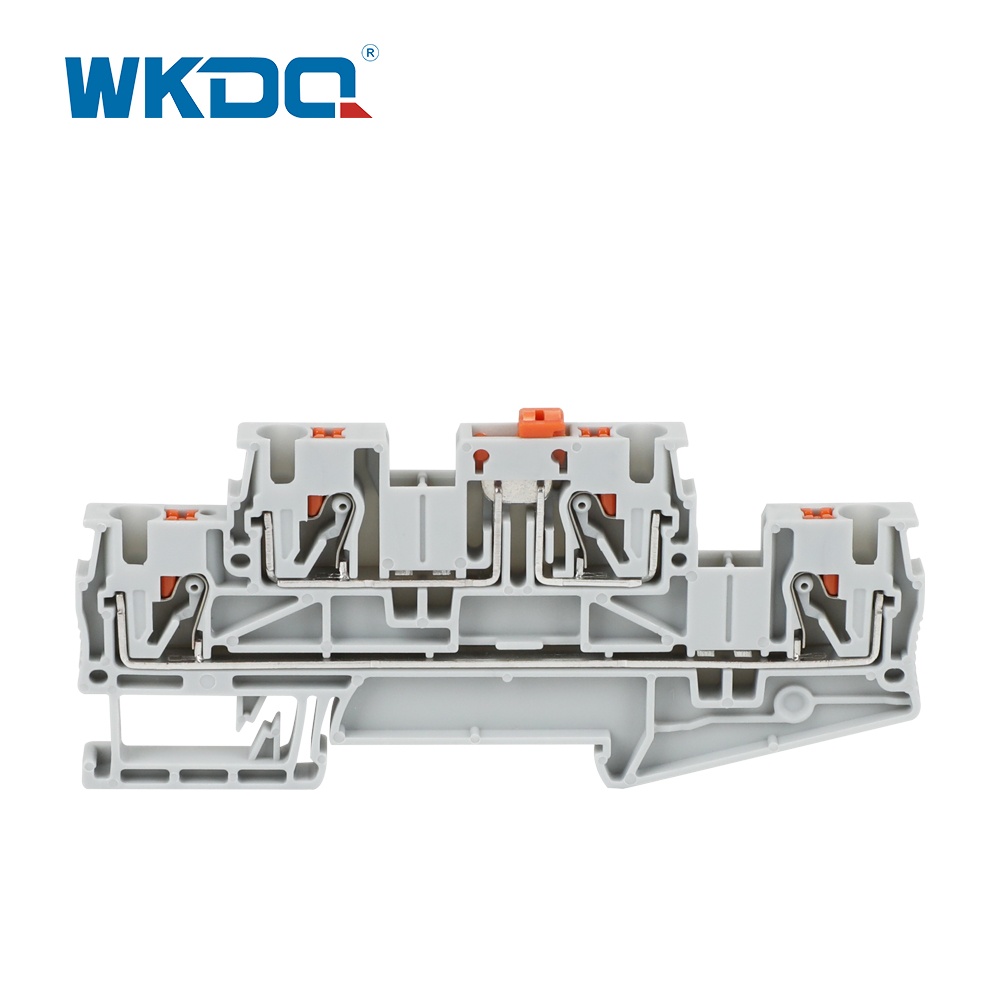

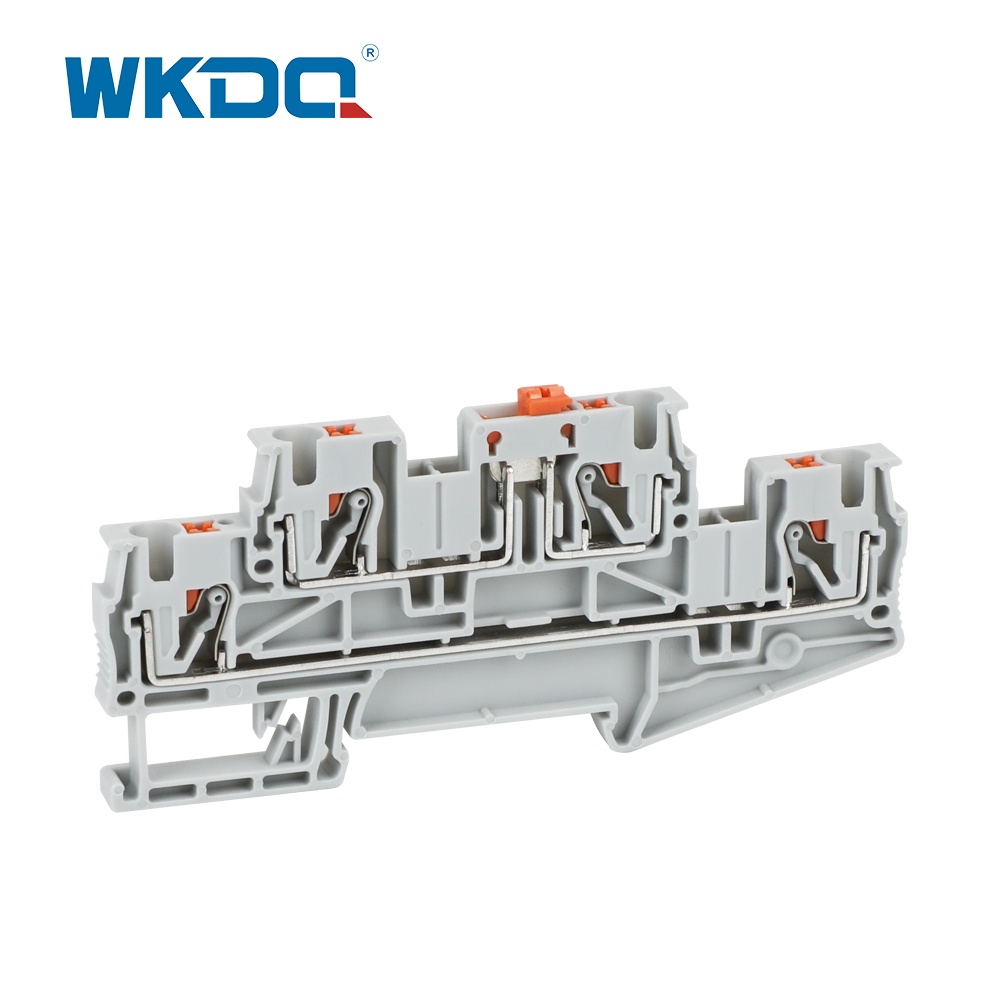

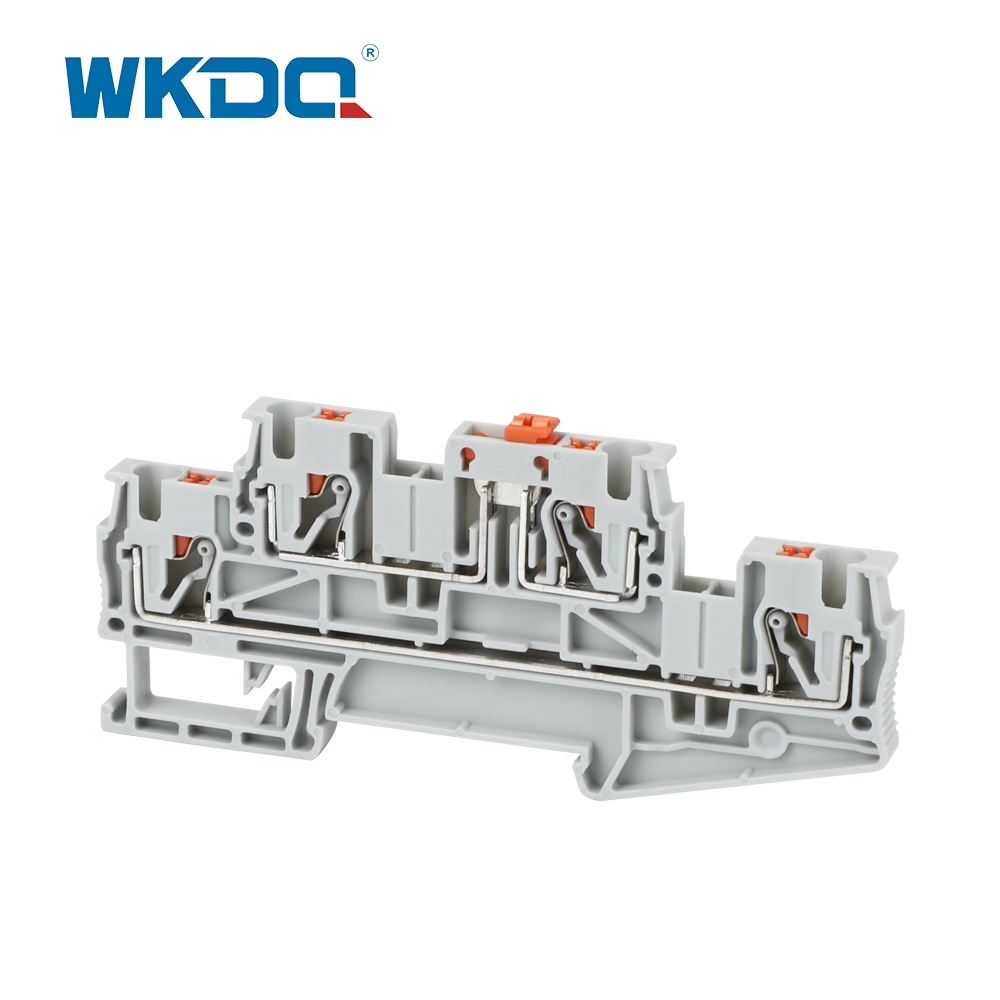

    The JPTTB4-MT is a push-in type terminal block designed for efficient and reliable electrical connections. Constructed from durable gray nylon PA66, it measures 102.9×37.5×6.2 mm and supports cable cross-sections of 0.2–6 mm² (solid) or 0.25–4 mm² (soft).  Rated for 500V and 32A, it complies with the IEC 60947-7-1 standard and is compatible with NS 35/7.5 DIN rails for easy installation. The terminal block features a push-in connection mechanism for quick wiring, supports custom logos, and is certified with CE, RoHS, CQC, and ISO 9001. Packaged as 50 pieces per box and 1000 pieces per carton, it is suitable for a variety of compact and organized electrical system applications.

Model No.	JPTTB4-MT terminal block
Color	Gray.

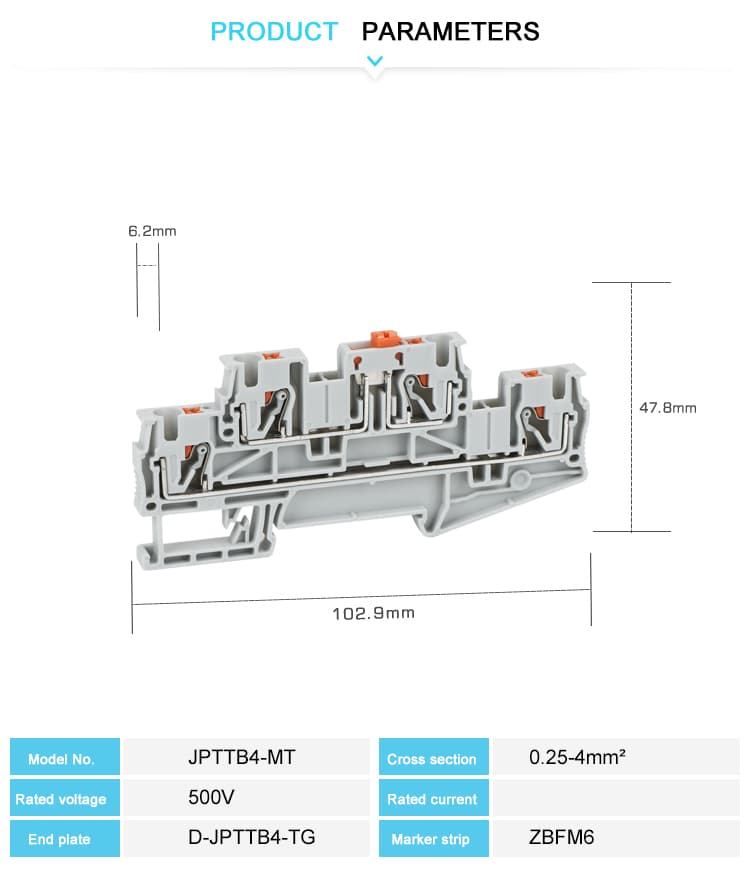

Length/Height/Wide (mm)	102.9 / 37.5 / 6.2 mm
Connection method	Pish-in connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.2-6mm²/0.25-4mm²
Conductor Size	24-12 AWG

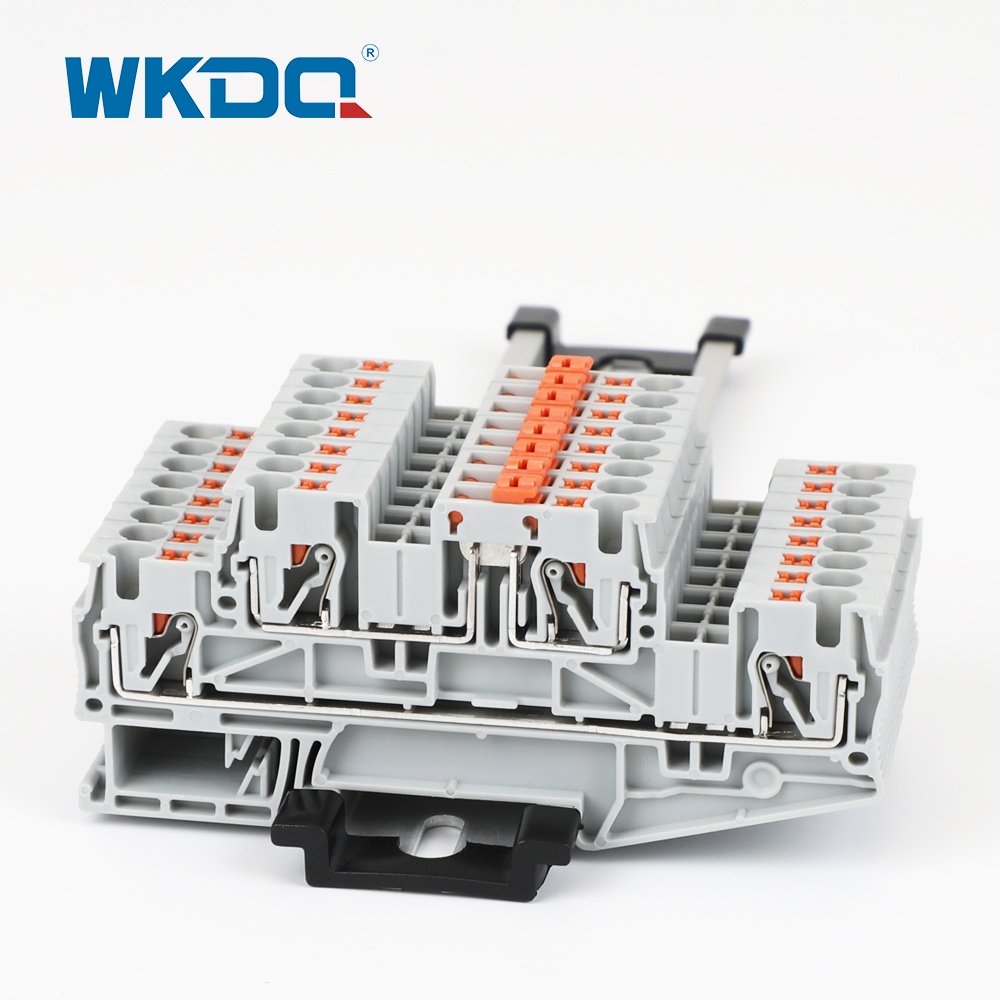

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized LOGO can be made.
Packing Detail	17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
