Spring Cage Terminal Blocks

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 1.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 1.5-PE

Send Inquiry

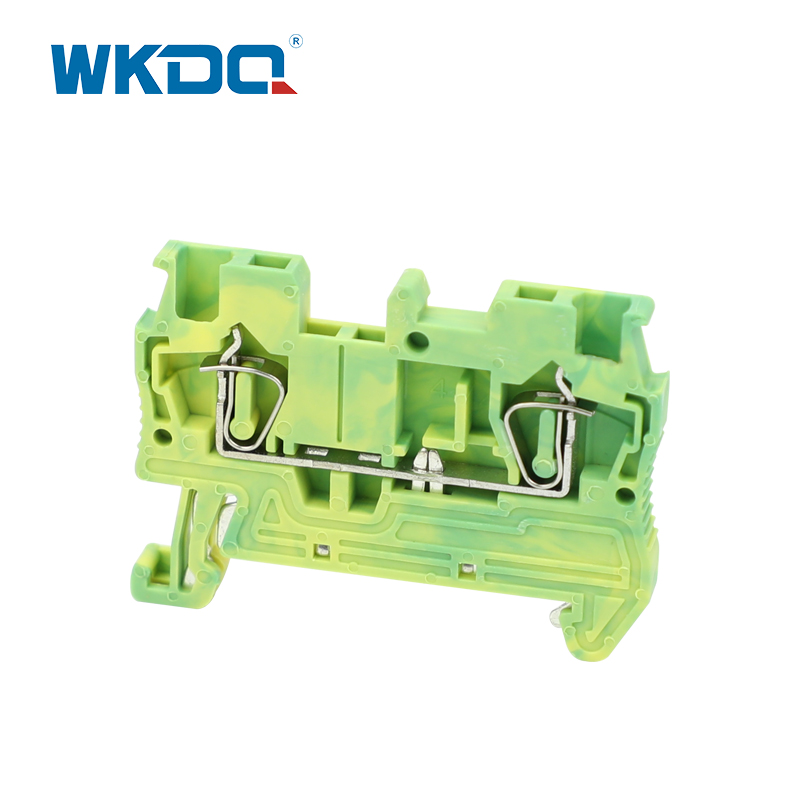

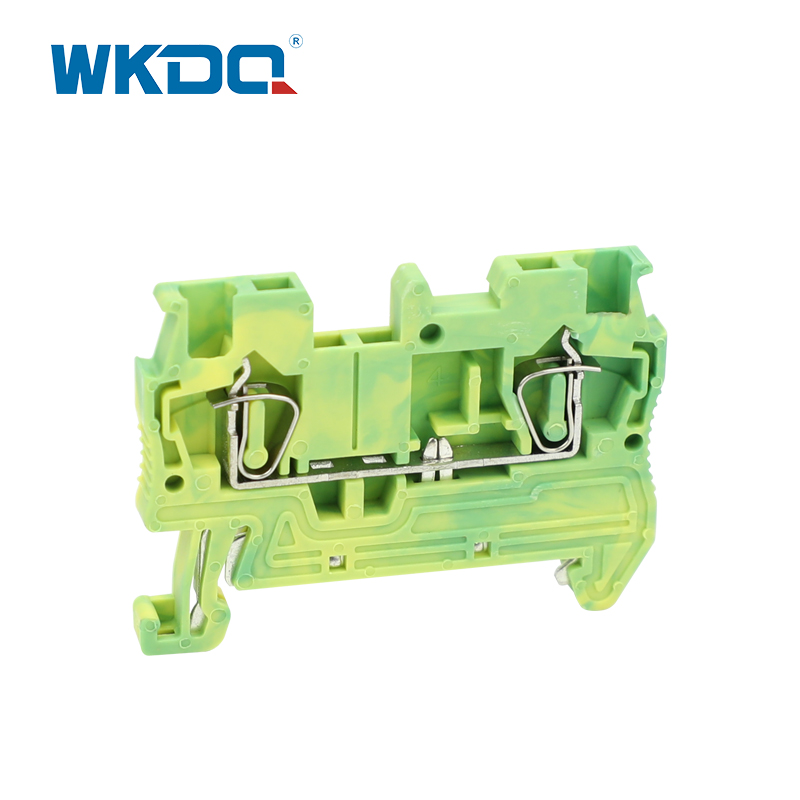

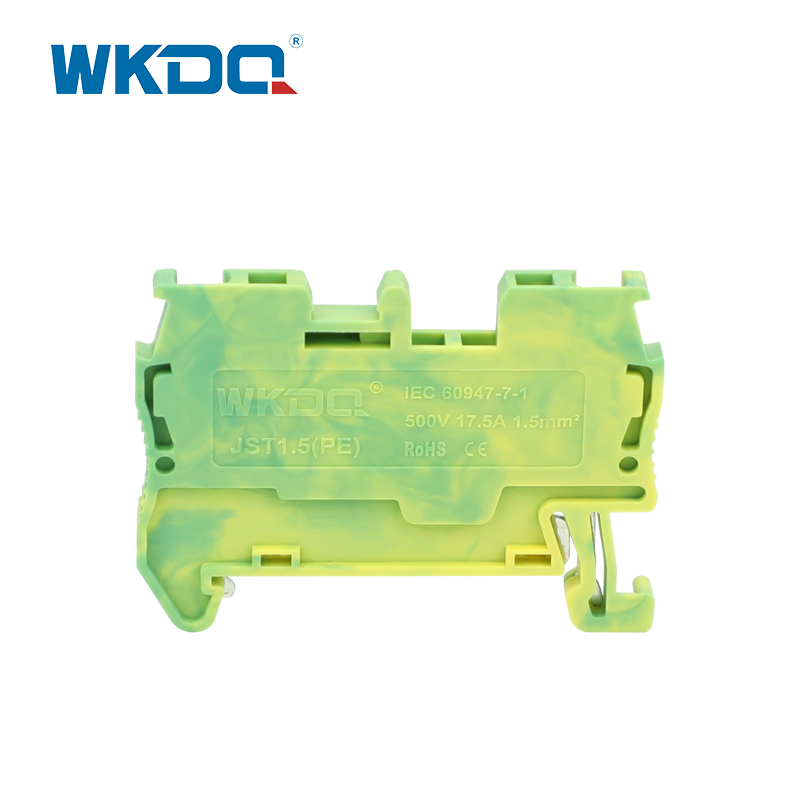

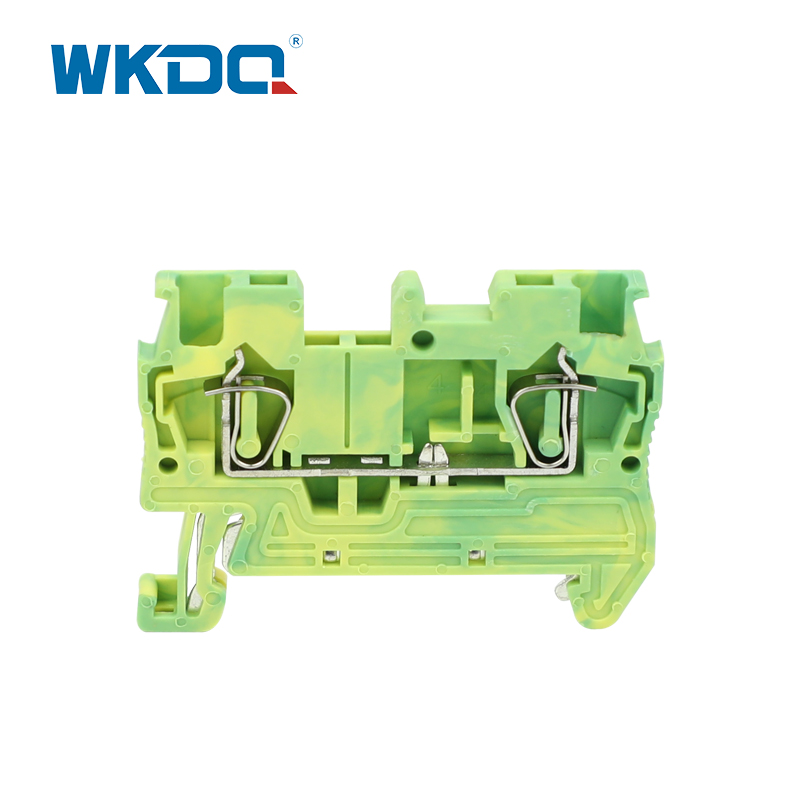

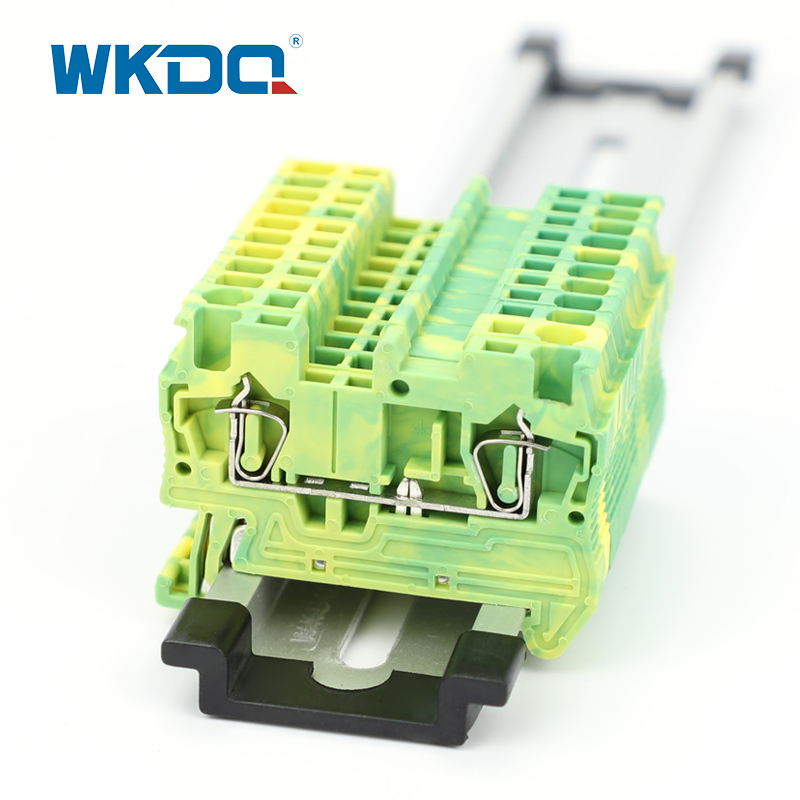

Product Description

The WKDQ spring cage terminal block is made of flame-retardant PA66+ tin-plated brass material. It features airtight anti-corrosion contacts and a dual-function shaft design, which is shock-resistant and vibration-resistant, and is suitable for strong vibration scenarios such as railways and wind power.

Part No.	JST 1.5-PE
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	49/36/4.2
Connection method	Spring-cage connection
Material	Inflaming retarding Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm² / 0.14-1.5 mm²
Conductor Size	26-16 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	6.75g/pc, 100PCS/BOX, 2600PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
