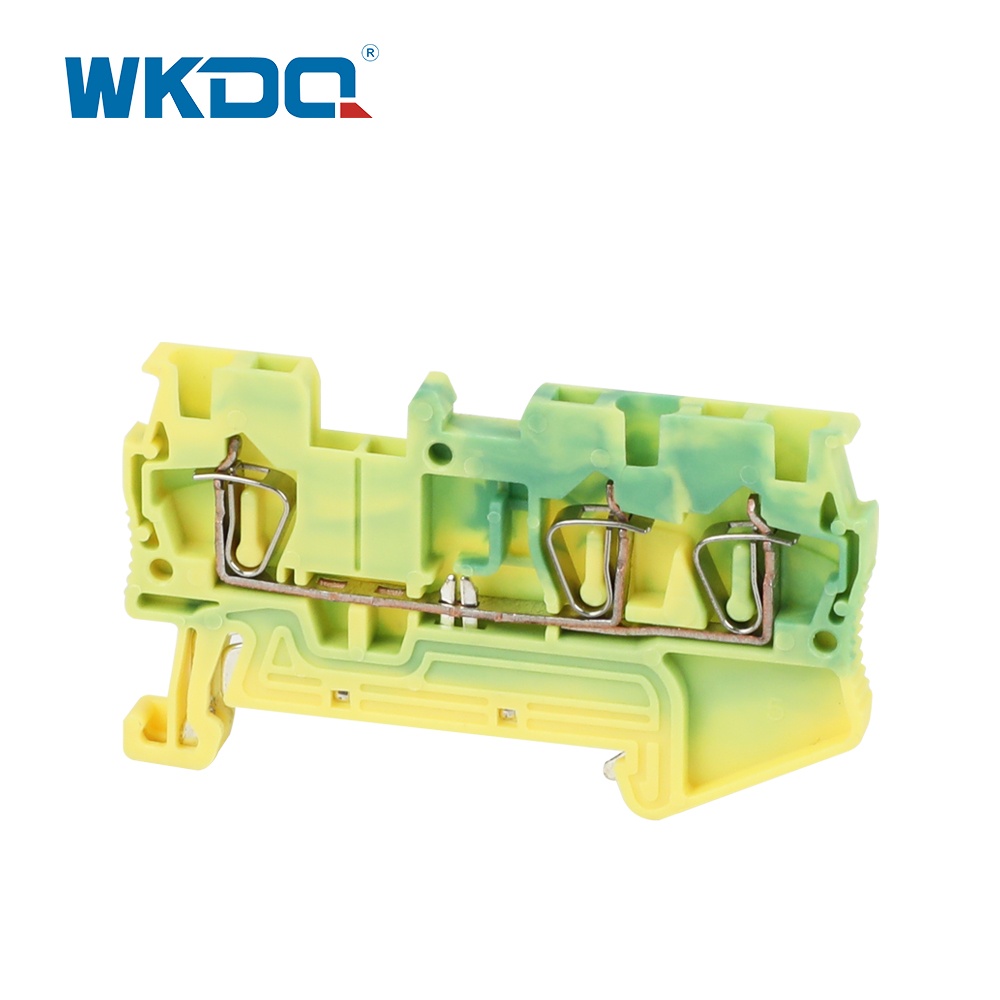

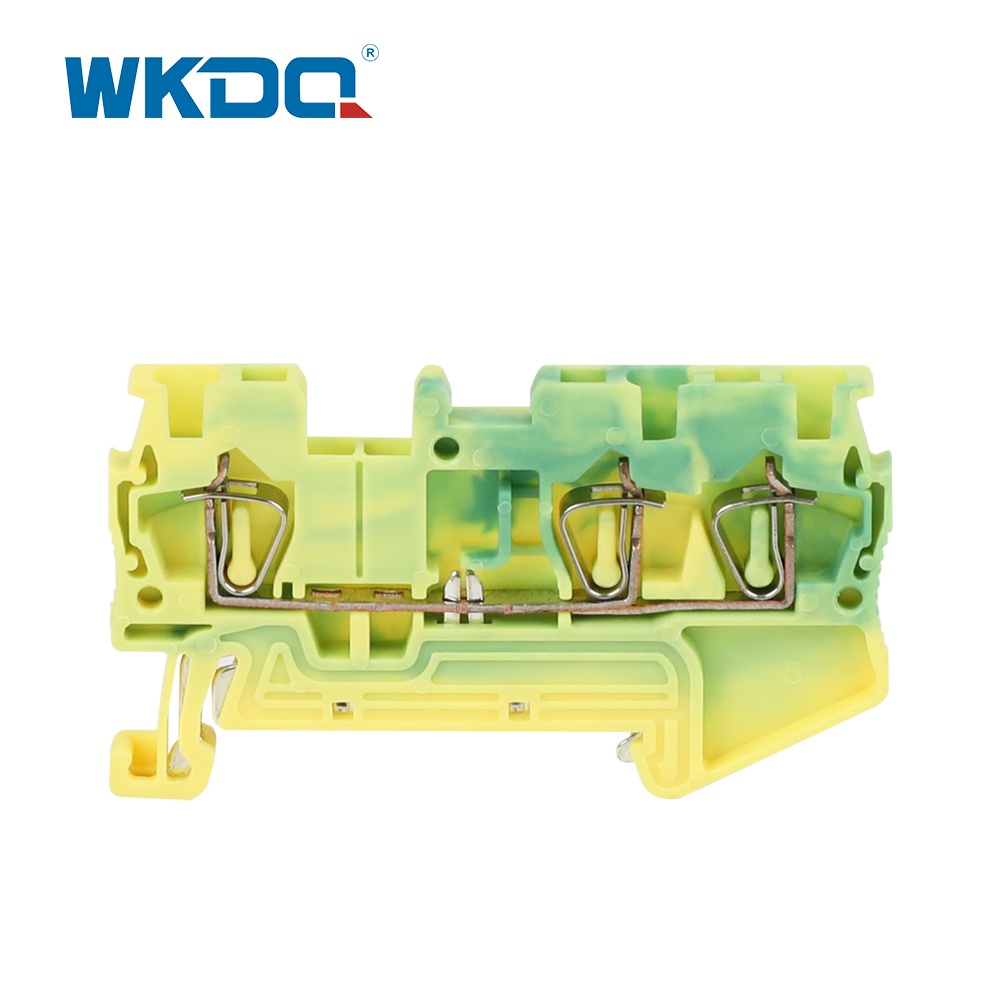

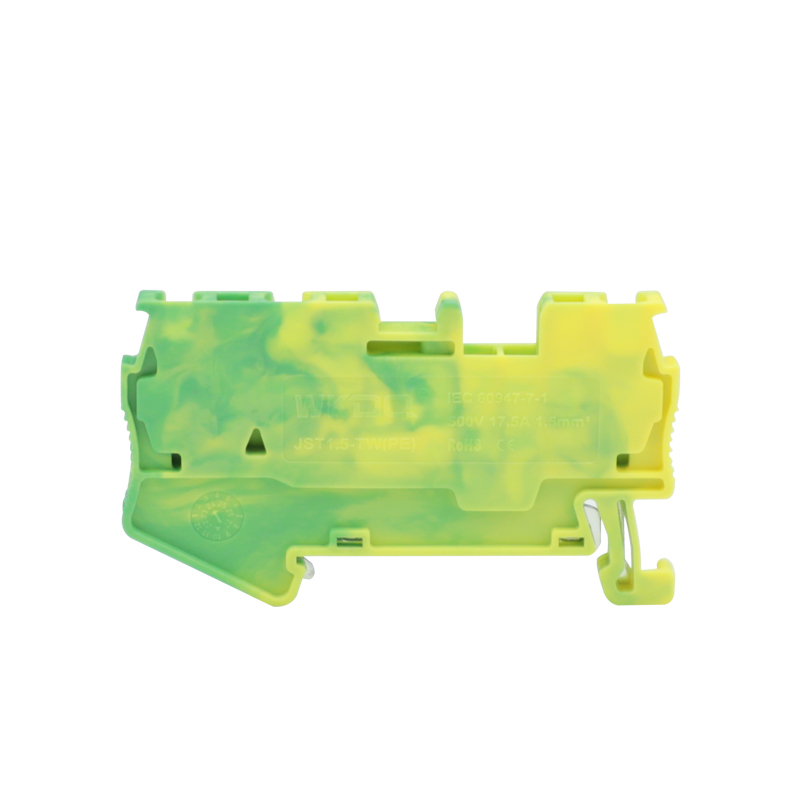

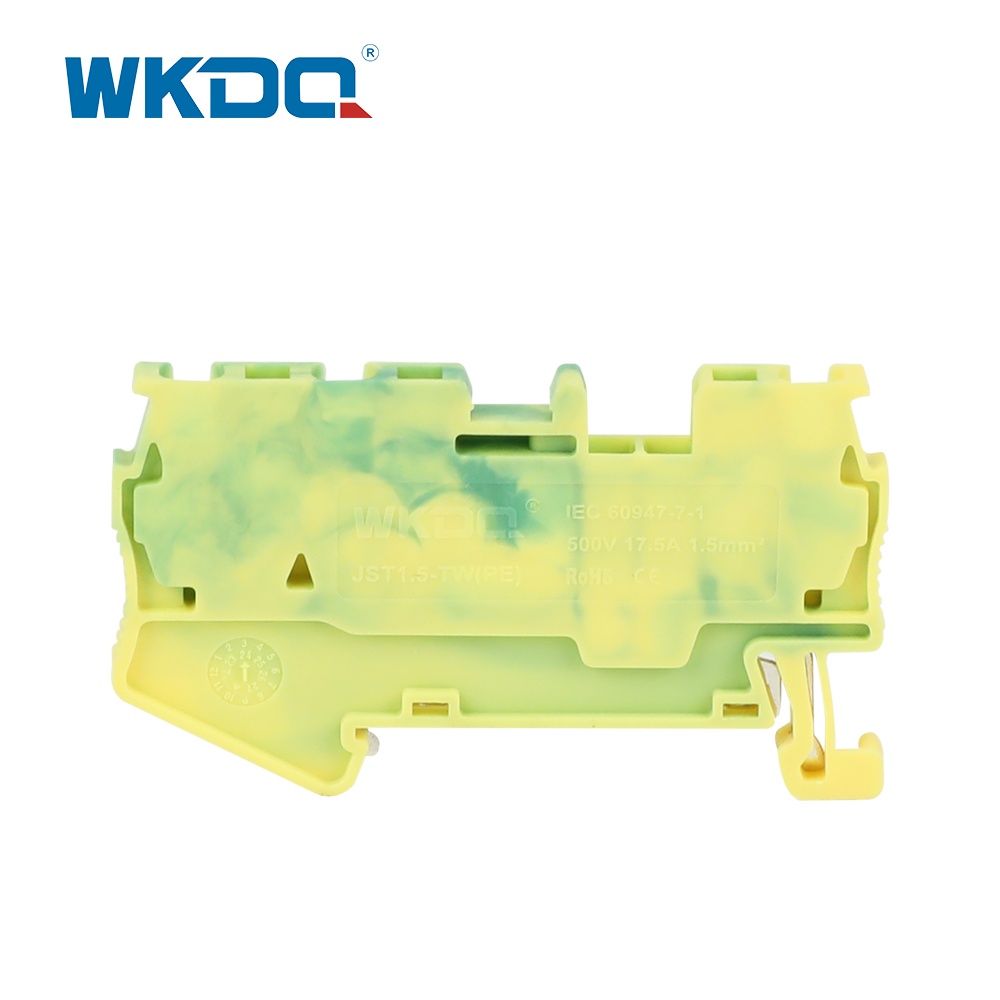

ST1.5-Tw-PE 1.5mm2 Spring Cage Screwless PE Earth Terminal Block

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number:ST1.5-Tw-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:ST1.5-Tw-PE

Send Inquiry

Product Description

The ST1.5-TW-PE spring type screw free grounding terminal block adopts an innovative spring clip design, supporting quick tool free installation of 1.5mm ² wires and providing stable seismic grounding connection. The compact circular structure enhances mechanical stability and is suitable for protective grounding of industrial equipment, buildings, and residential power systems. Compared to traditional screw terminals, it significantly shortens installation time and is easy to maintain, ensuring electrical safety with reliable performance and meeting the modern grounding needs of diverse scenarios

TECHNICAL PARAMETERS

Model Number	ST1.5-Tw-PE
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	L72.9/H36/W4.2mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.08-1.5mm²/0.08-1.5mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
