STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level
  • STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi LevelSTTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level
  • STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi LevelSTTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level
  • STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi LevelSTTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level
  • STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi LevelSTTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level
  • STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi LevelSTTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level

STTB 4 - PE Spring Terminal Block Clamp Ground 4mm2 Multi Level

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 4-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

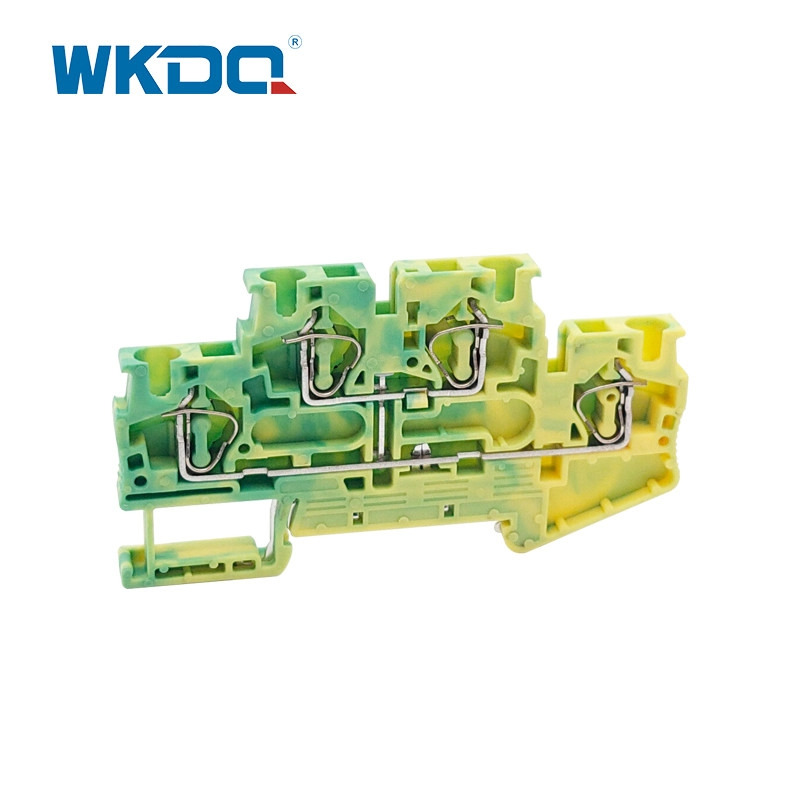

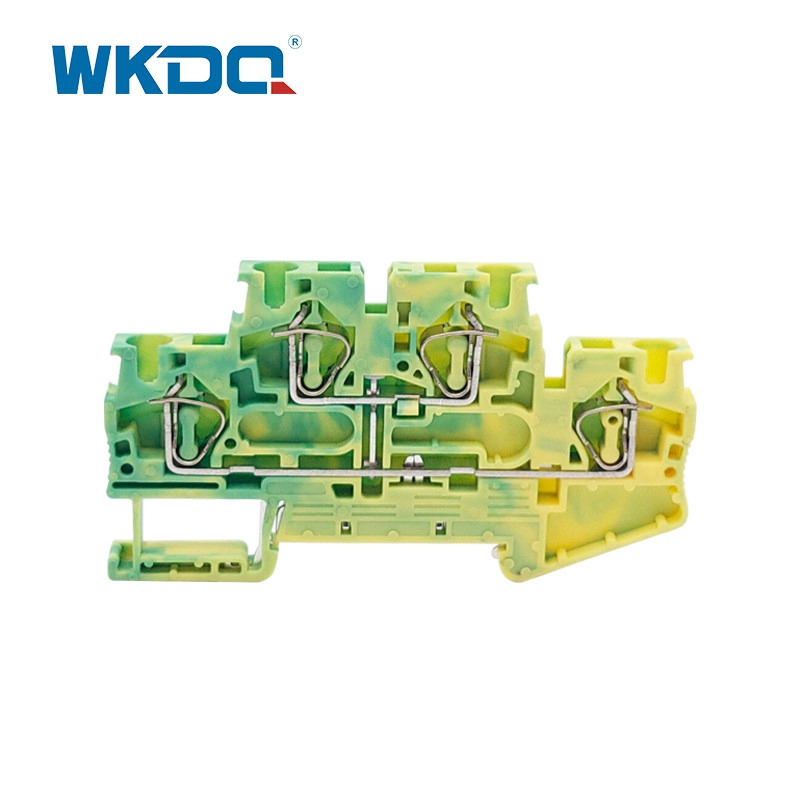

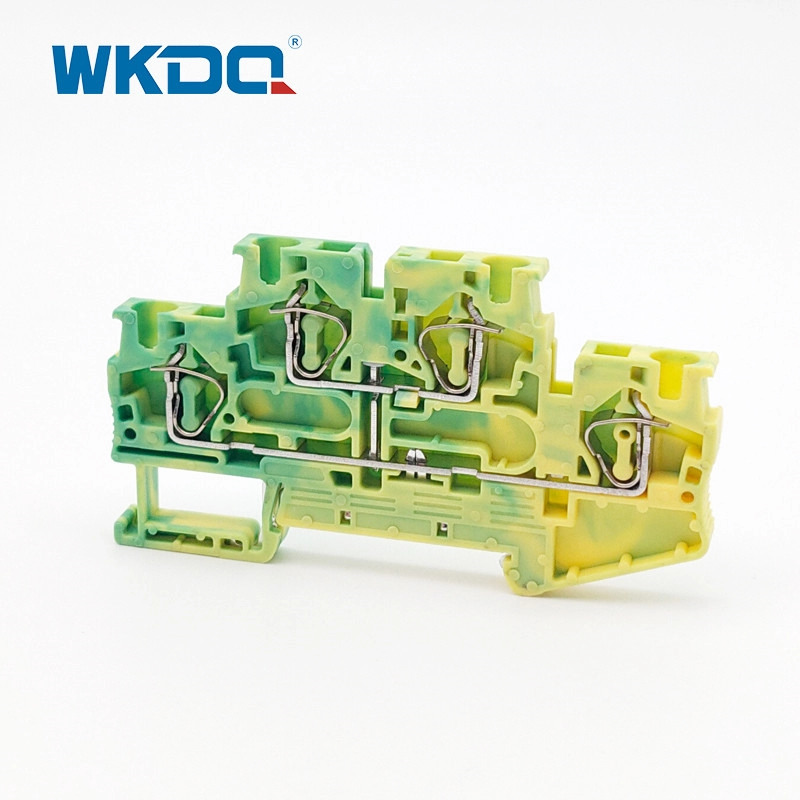

The 2-Level Multi-Conductor Spring Cage Ground Terminal Block is designed for easy operation and reliable grounding connections. The compact front connection allows for convenient access, and the terminal point can be opened using a standard screwdriver. Once the conductor is inserted into the clamping space, the screwdriver is removed, and the conductor automatically makes contact. Key features of this ground terminal block include:

Easy to operate, ensuring hassle-free installation and maintenance.

Safe connection with a corrosion-proof contact point, guaranteeing long-term reliability.

Made from high-quality anti-flaming plastic, ensuring safety and durability.

Space-saving design and optimized wiring scheme, maximizing efficiency in compact spaces.

All types of materials used in construction are of guaranteed quality, ensuring robustness and performance.

Perfectly suitable for electrical machine control systems, providing grounding solutions.

Constructed from engineering flame retardant nylon PA66 with brass metal, ensuring excellent conductivity and durability.

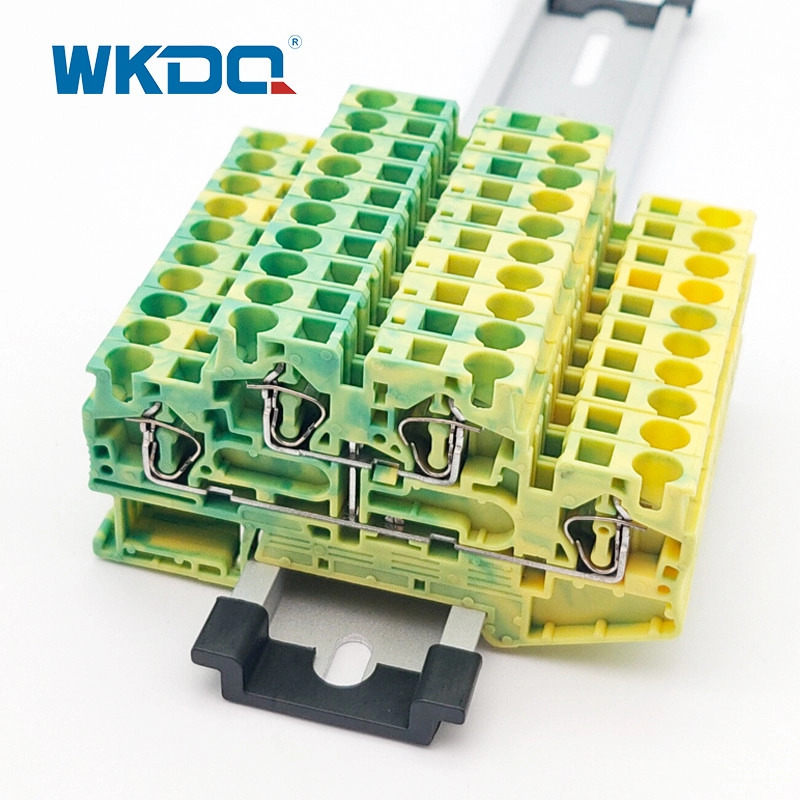

Equipped with a universal foot that can be easily installed on Din Rail NS 35.

Capable of connecting two conductors effortlessly, accommodating even large conductor cross sections.

Electric potential distribution can be achieved using fixed bridges in the terminal center.

OEM service is supported, providing customized solutions to meet specific requirements.


Technical Parameters

Model Number JSTTB 4-PE
Color Yellow-Green
Length/Height/Wide (mm) 86.5/46/6.2
Connection method Spring Cage connection
Material Nylon PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.5-6mm² / 0.5-4 mm²
Conductor Size 20-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 13g/pc,
Certification CE/RoHS/CQC/ISO 9001
