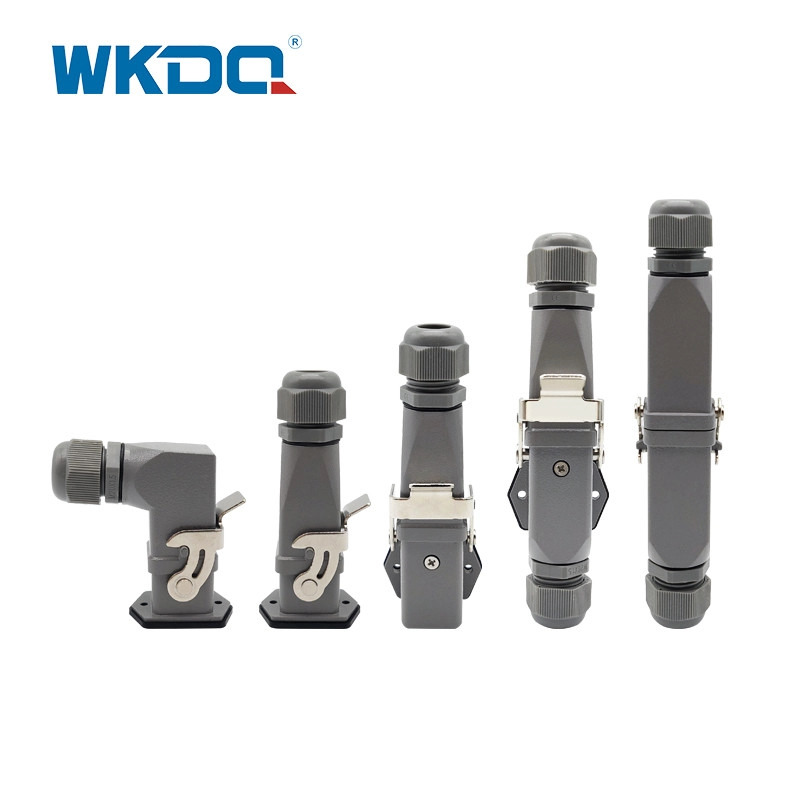

HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry

As a professional high quality WKDQ HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry manufacture, you can rest assured to buy HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Model No.: WHA Housing Material: STEEL+PLASTIC
Place Of Origin: Zhejiang , China
High Light: HDC Heavy Duty Connector , 5Pins Heavy Duty Connector , 8Pins Top Entry Heavy Duty Connector


The following is the introduction of high quality WKDQ HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry, hoping to help you better understand HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry. Welcome new and old customers to continue to cooperate with us to create a better future!

HDC, which stands for Heavy Duty Connector, is a type of electrical connector commonly used in industrial applications. It is designed to provide a robust and reliable connection in demanding environments where high levels of protection against dust, water, and mechanical stress are required.

The number of pins in an HDC connector refers to the number of electrical contacts or terminals available for connecting wires or cables. HDC connectors are available in various pin configurations, including 4 pins, 5 pins, 6 pins, and 8 pins, among others. The specific pin count required will depend on the application and the number of conductors that need to be connected.

The term "top entry" refers to the orientation of the connector when it is installed. In a top entry HDC connector, the cables or wires enter from the top of the connector housing. This configuration allows for easier cable routing and installation, particularly when the connector is mounted in a vertical position.

WKDQ HDC / Heavy Duty Connector 4 Pins 5 Pins 6 Pins 8 Pins Top Entry connectors are known for their durability and versatility, and they are commonly used in industrial automation, machinery, robotics, power distribution, and other applications where reliable electrical connections are crucial. They often feature locking mechanisms, sealing gaskets, and robust housings to provide protection against environmental factors and ensure secure connections in harsh conditions.


TECHNICAL PARAMETERS

No. PART NO. Order No. Entry Side Number of contact Description Water-proof connector
1 WHA04D 100506005 Top entry 4 3+1ground PG11
2 WHA05D 100506006 Top entry 5 4+1ground PG11
3 WHA06D 100506007 Top entry 6 5+1ground PG11
4 WHA07D 100506008 Top entry 8 7+1ground PG11
5 WHA04C 100506001 Side entry 4 3+1ground PG11
6 WHA05C 100506002 Side entry 5 4+1ground PG11
7 WHA06C 100506003 Side entry 6 5+1ground PG11
8 WHA07C 100506004 Side entry 8 7+1ground PG11
9 WHA04W 100506009 Horizontal 4 3+1ground PG11
10 WHA05W 100506010 Horizontal 5 4+1ground PG11
11 WHA06W 100506011 Horizontal 6 5+1ground PG11
12 WHA07W 100506012 Horizontal 8 7+1ground PG11
13 WHA04WD 100506013 Horizontal Butt 4 3+1ground PG11
14 WHA05WD 100506014 Horizontal Butt 5 4+1ground PG11
15 WHA06WD 100506015 Horizontal Butt 6 5+1ground PG11
16 WHA07WD 100506016 Horizontal Butt 8 7+1ground PG11
17 WHA04DJ 100506013 Docking 4 3+1ground PG11
18 WHA05DJ 100506014 Docking 5 4+1ground PG11
19 WHA06DJ 100506015 Docking 6 5+1ground PG11
20 WHA07DJ 100506016 Docking 8 7+1ground PG11
