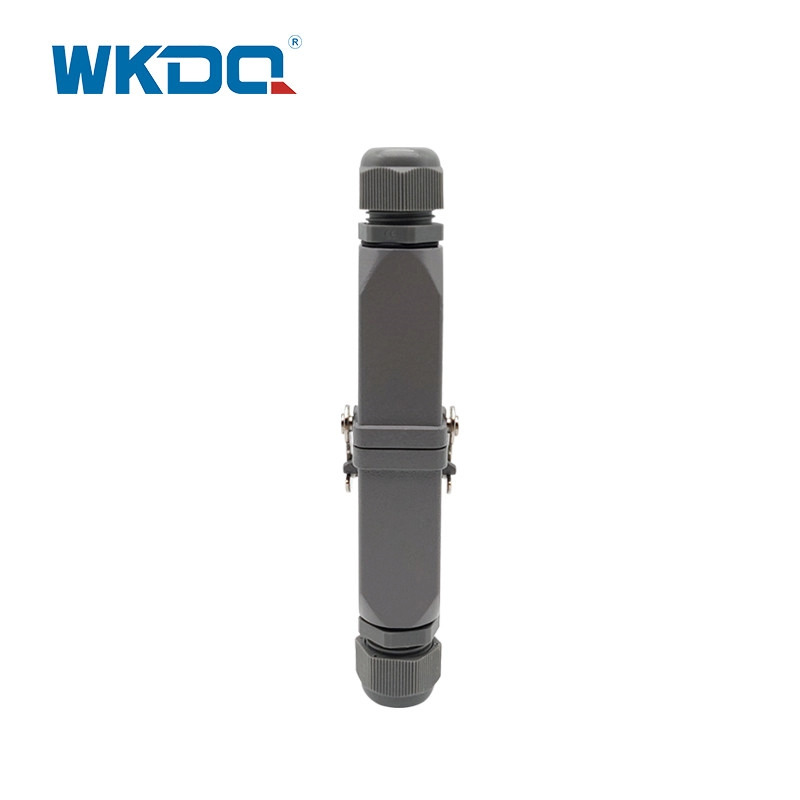

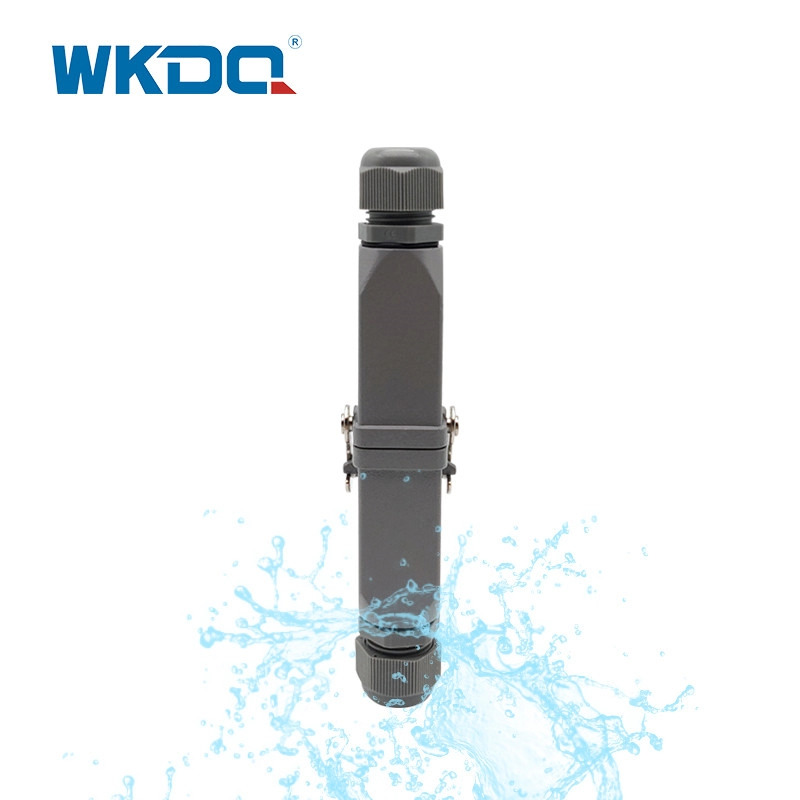

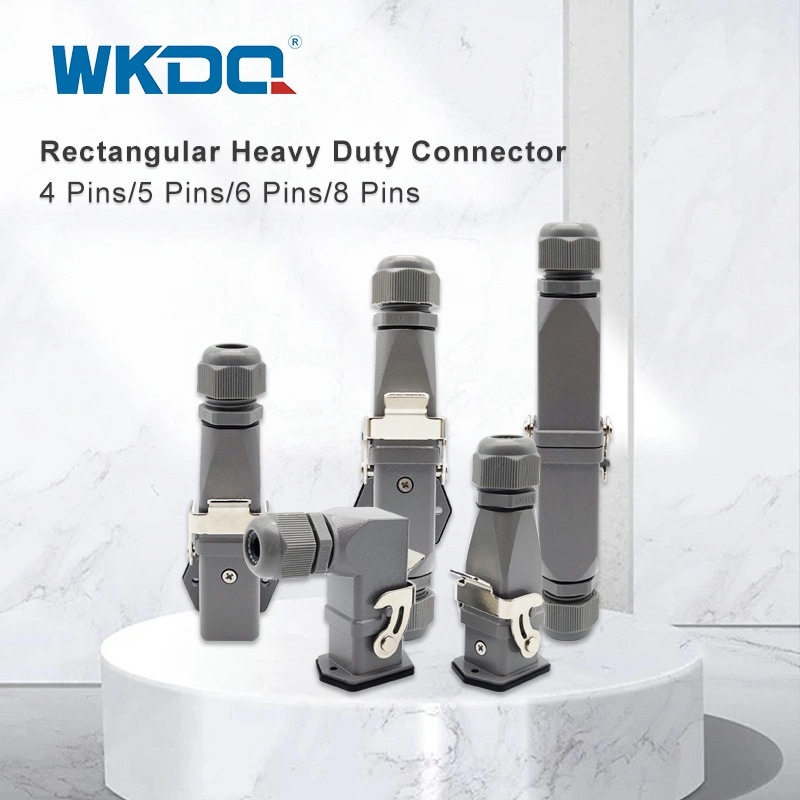

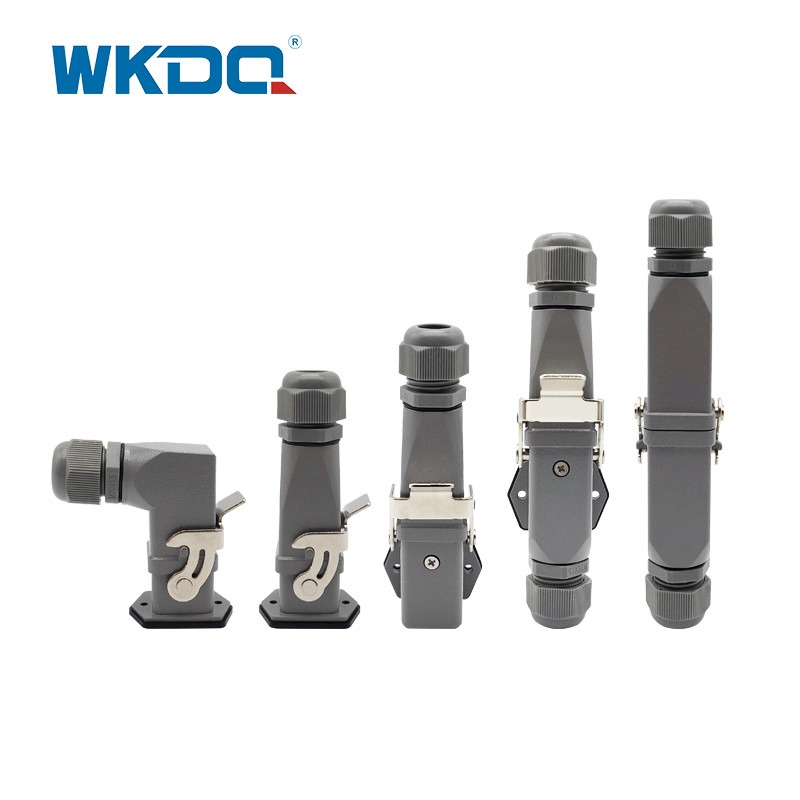

Heavy Duty Connector With Male Plug And Female Socket Docking Style
  • Heavy Duty Connector With Male Plug And Female Socket Docking StyleHeavy Duty Connector With Male Plug And Female Socket Docking Style
  • Heavy Duty Connector With Male Plug And Female Socket Docking StyleHeavy Duty Connector With Male Plug And Female Socket Docking Style
  • Heavy Duty Connector With Male Plug And Female Socket Docking StyleHeavy Duty Connector With Male Plug And Female Socket Docking Style
  • Heavy Duty Connector With Male Plug And Female Socket Docking StyleHeavy Duty Connector With Male Plug And Female Socket Docking Style
  • Heavy Duty Connector With Male Plug And Female Socket Docking StyleHeavy Duty Connector With Male Plug And Female Socket Docking Style

Heavy Duty Connector With Male Plug And Female Socket Docking Style

WKDQ is a leading China Heavy Duty Connector With Male Plug And Female Socket Docking Style manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Heavy Duty Connector With Male Plug And Female Socket Docking Style have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Heavy Duty Connector With Male Plug And Female Socket Docking Style services, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

A heavy-duty connector with a male plug and female socket in a docking style refers to a specific configuration of a heavy-duty connector commonly used in industrial applications. Let's break down the components:

Heavy-Duty Connector: A heavy-duty connector (HDC) is a robust electrical connector designed for demanding industrial environments. It offers durable construction, high current and voltage ratings, and features such as ingress protection (IP) ratings.

Male Plug: The male plug is one part of the heavy-duty connector pair. It typically contains pins or terminals that match the corresponding sockets or receptacles in the female part. The male plug is designed to be inserted into the female socket to establish an electrical connection.

Female Socket: The female socket is the counterpart to the male plug. It has openings or slots to receive the pins or terminals from the male plug. The female socket ensures a secure and reliable connection when the male plug is docked.

Docking Style: The term "docking style" indicates the connection method of the heavy-duty connector. In this configuration, the male plug and female socket are designed to mate together using a docking mechanism. The docking style allows for easy and quick connection and disconnection of the connector pair. It often involves alignment guides, latches, or other mechanisms to ensure proper mating and secure engagement.

The specific pin configuration, size, and other features of the heavy-duty connector in the docking style will depend on the manufacturer and the requirements of the application. It's important to consult the manufacturer's datasheets, catalogs, or documentation to select the appropriate heavy-duty connector with the desired male plug and female socket docking style configuration.


TECHNICAL PARAMETERS

No. PART NO. Order No. Entry Side Number of contact Description Water-proof connector
1 WHA04D 100506005 Top entry 4 3+1ground PG11
2 WHA05D 100506006 Top entry 5 4+1ground PG11
3 WHA06D 100506007 Top entry 6 5+1ground PG11
4 WHA07D 100506008 Top entry 8 7+1ground PG11
5 WHA04C 100506001 Side entry 4 3+1ground PG11
6 WHA05C 100506002 Side entry 5 4+1ground PG11
7 WHA06C 100506003 Side entry 6 5+1ground PG11
8 WHA07C 100506004 Side entry 8 7+1ground PG11
9 WHA04W 100506009 Horizontal 4 3+1ground PG11
10 WHA05W 100506010 Horizontal 5 4+1ground PG11
11 WHA06W 100506011 Horizontal 6 5+1ground PG11
12 WHA07W 100506012 Horizontal 8 7+1ground PG11
13 WHA04WD 100506013 Horizontal Butt 4 3+1ground PG11
14 WHA05WD 100506014 Horizontal Butt 5 4+1ground PG11
15 WHA06WD 100506015 Horizontal Butt 6 5+1ground PG11
16 WHA07WD 100506016 Horizontal Butt 8 7+1ground PG11
17 WHA04DJ 100506013 Docking 4 3+1ground PG11
18 WHA05DJ 100506014 Docking 5 4+1ground PG11
19 WHA06DJ 100506015 Docking 6 5+1ground PG11
20 WHA07DJ 100506016 Docking 8 7+1ground PG11
