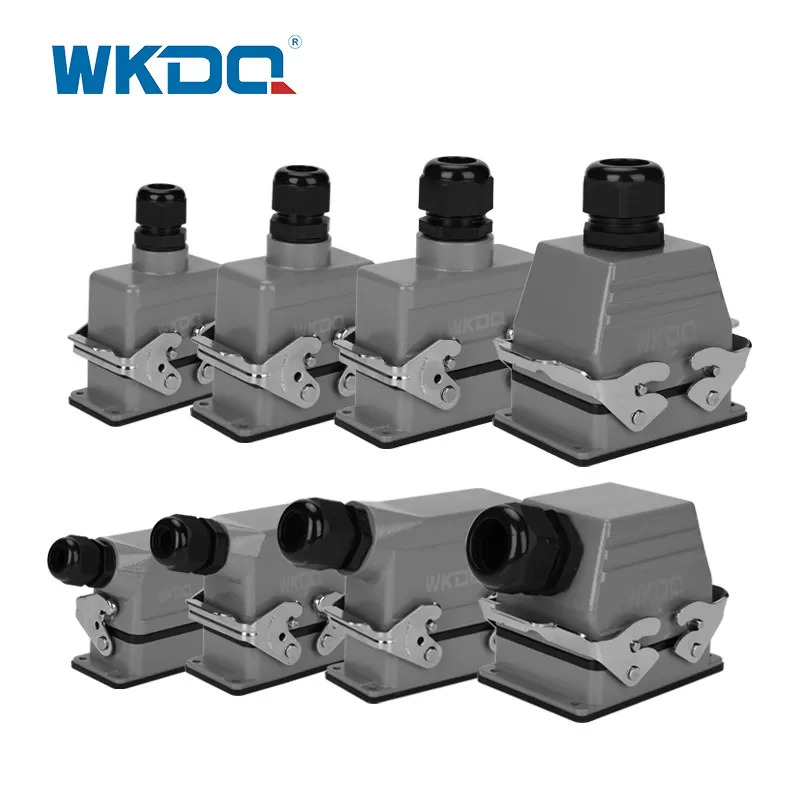

7mm Stripping Waterproof Electrical Connectors 500V WHE32C

The WKDQA 7mm Stripping Waterproof Electrical Connectors 500V WHE32C, are connectors designed to provide a waterproof and reliable electrical connection. Here's some information about these connectors:

7mm Stripping: The 7mm stripping refers to the recommended amount of insulation to remove from the electrical wire before inserting it into the connector. This ensures that the wire is properly exposed for secure connection within the connector.

Waterproof: The connectors are designed with a waterproof feature, meaning they are constructed or sealed in a way that prevents the ingress of water or moisture. This waterproof design helps to protect the electrical connection and maintain its integrity, even in wet or damp environments.

500V Rating: The connectors are rated for a maximum voltage of 500V. This rating indicates the highest voltage level that the connectors can safely handle without compromising performance or posing a risk of electrical failure.

WHE32C Model: The "WHE32C" refers to a specific model or part number of the waterproof electrical connector. It is likely specific to a particular manufacturer or supplier, and it helps identify the connector's variant or version.

The 7mm stripping waterproof electrical connectors, such as the WHE32C model, are commonly used in various applications where reliable and waterproof electrical connections are required. These connectors are suitable for a range of environments, including outdoor lighting, irrigation systems, industrial machinery, and more.

It is important to note that specific product specifications, ratings, and features may vary depending on the manufacturer or supplier. To ensure the connectors meet your specific requirements, it is recommended to refer to the product datasheet, documentation, or contact the manufacturer directly for detailed information about the WHE32C model.

TECHNICAL PARAMETERS

No.	PART NO.	Entry Side	Number of contact	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
Heavy-duty connector Voltage/Current: 500V/16A Surface: Sliver-plated Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14) Tightening torque: 0.5Nm Stripping lenngth: 7mm
1	WHE06C	Side entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
2	WHE06D	Top entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
3	WHE10C	Side entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
4	WHE10D	Top entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
5	WHE16C	Side entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
6	WHE16D	Top entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
7	WHE24C	Side entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
8	WHE24D	Top entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
9	WHE32C	Side entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
10	WHE32D	Top entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
11	WHE48C	Side entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
12	WH48D	Top entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
